Introduction
The CVC 200 Component Video Converter converts all SMPTE standard
component video formats to RGBS or RGBHV video. The CVC 200 can
also strip sync-on-green (SOG) from RGsB video. The converter outputs
converted RGBS or RGBHV video on BNC connectors. Figure 1 shows a
typical CVC 200 application.
AT
FO RM
T
IN PU
Extron
CVC 200
Video Converter
HDTV
Set Top Box

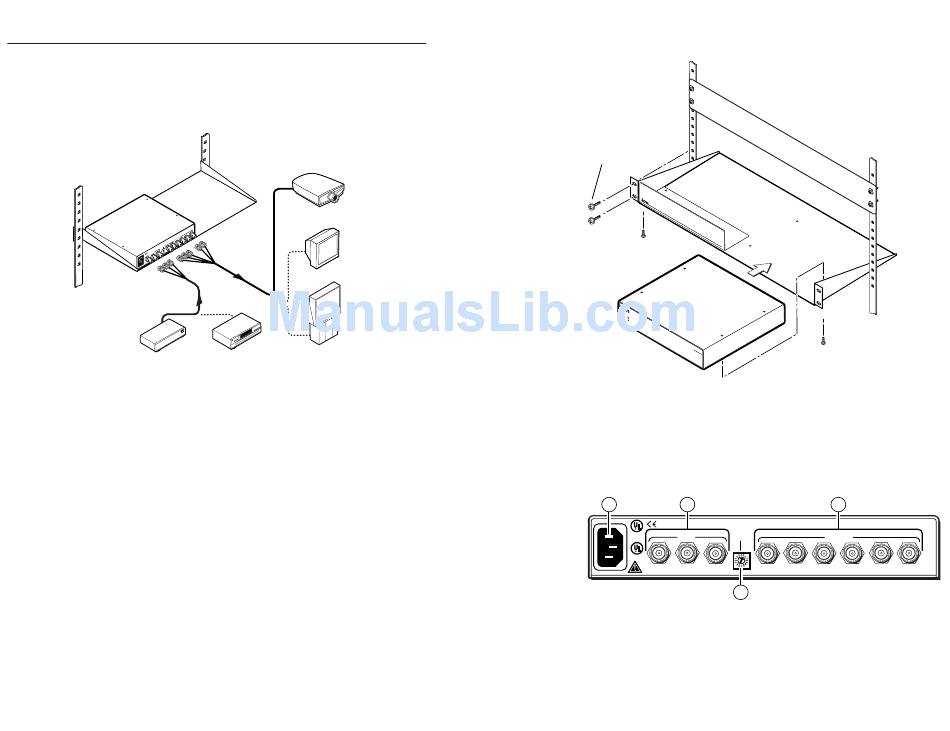

Figure 1 — Typical CVC 200 application
The component video input formats include DVD, Betacam® video, and
HDTV component video. The RGsB video input can be computer video
or NTSC/PAL video.
Mounting
The CVC 200 can be rack mounted using one side of a 1U Universal
Rack Shelf (part #60-190-01) or 1U Basic Rack Shelf (part #60-604-01).
Rack mount the CVC 200 as follows:
1. Remove the feet from the case, if they were previously installed.
2. Mount the CVC 200 on the rack shelf, using two 4-40 x 3/16"
screws in opposite corners (under the shelf) to secure the case to
the shelf (figure 2).
1 CVC 200 • Installation
LCD Projector
or
Video Monitor
Large Screen
or
DVD
Rear Projector
#10-32 Screw
w/ Nylon Captive
Cap Washer
False front panel
uses 2 front holes.
C V
C
2 0
0
Figure 2 — Rack mounting the CVC 200
Cable Connection and Rate Selection
See figure 3 to identify the rear panel connections and Format rotary
switch
1 2
100-240V 50-60Hz
LISTED
INPUT
1T23
I.T.E.
C
Y/G P /B
B
.35A
Figure 3 — CVC 200 rear panel features
CVC 200 • Cable Connection and Rate Selection
(2) 4-40 x 3/16" Screws
Use 2 mounting holes on
opposite corners.
4
FORMAT OUTPUT
P /R R
R G B S H
3
V
2
