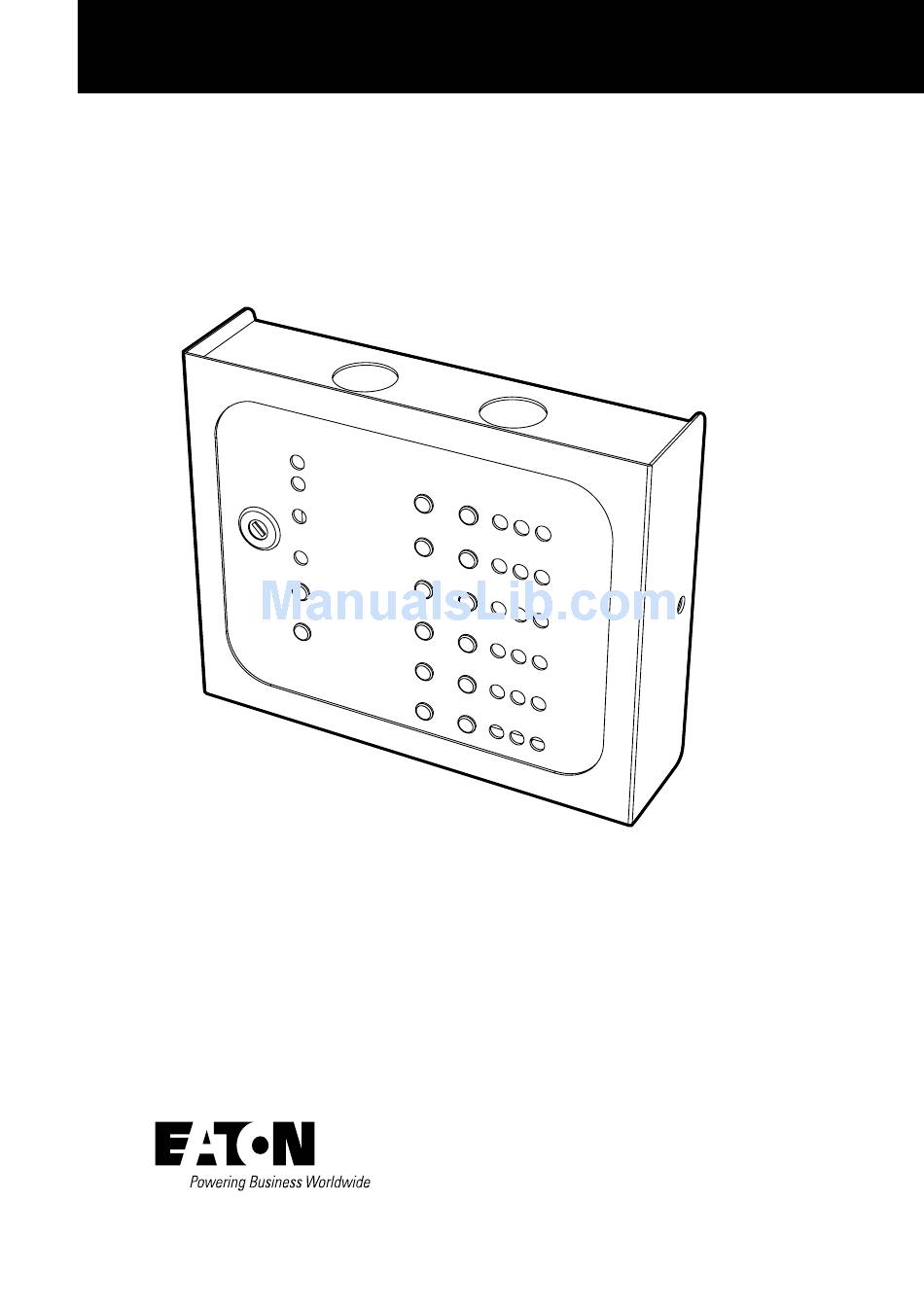

FC6 / FC6-AU Fan controller user manual 1. Introduction Controls: Key switch The FC6 Fan Controller can be connected to a Cooper • analogue addressable fire alarm control panel by means Auto/Manual key switch: used to select auto or •...
FC6 / FC6-AU Fan controller user manual 3. PC software operation (Site installer) 1. Start “Site Installer” program. 4. Once in the configuration screen Select “Add Master” . Figure 1. Figure 4. 2. Right click Fan Controller icon (Figure 2).
Page 5
FC6 / FC6-AU Fan controller user manual 5. Select the output channel, one to six in the 6. Select in the configuration screen which cause and configuration screen effect is needed for the output to activate. Select the “Enabled” in the configuration screen Figure 7.
FC6 / FC6-AU Fan controller user manual 4. Fan controller operation 4.1. Operation process 4.1.1. Manual/auto key switch 4.1.3. Key switch in “auto” A key switch is provided on the front of the Fan Controller When the fan controller key switch is set in automatic to enable/disable the buttons on the front fascia.
FC6 / FC6-AU Fan controller user manual 5. Basic system layout 5.1. FC6 and CFC301 on same panel 5.3. FC6 and CFC301 on di erent and loop networked panels Figure 9. Figure 11. 5.2. FC18 and CFC301 on same panel 5.4.
FC6 / FC6-AU Fan controller user manual 5.5. FC6 and MCOM/MCIM on same panel 5.6. FC6 and MCOM/MCIM on but di erent loops di erent networked panels Figure 13. Figure 14. FC6/FC6-AU FAN CONTROLLER PR209-166-504-08 January 2018 www.eaton.com...
FC6 / FC6-AU Fan controller user manual 6. FC6 6.1. Electrical Loop load Minimum Nominal Maximum Quiescent current 310 A Environmental Operating temperature -10°C +60°C Humidity (Non condensing) 95%rh External 24 volt supply External current 150mA Compatibility Suitable for use with Cooper analogue addressable re systems 6.2.
