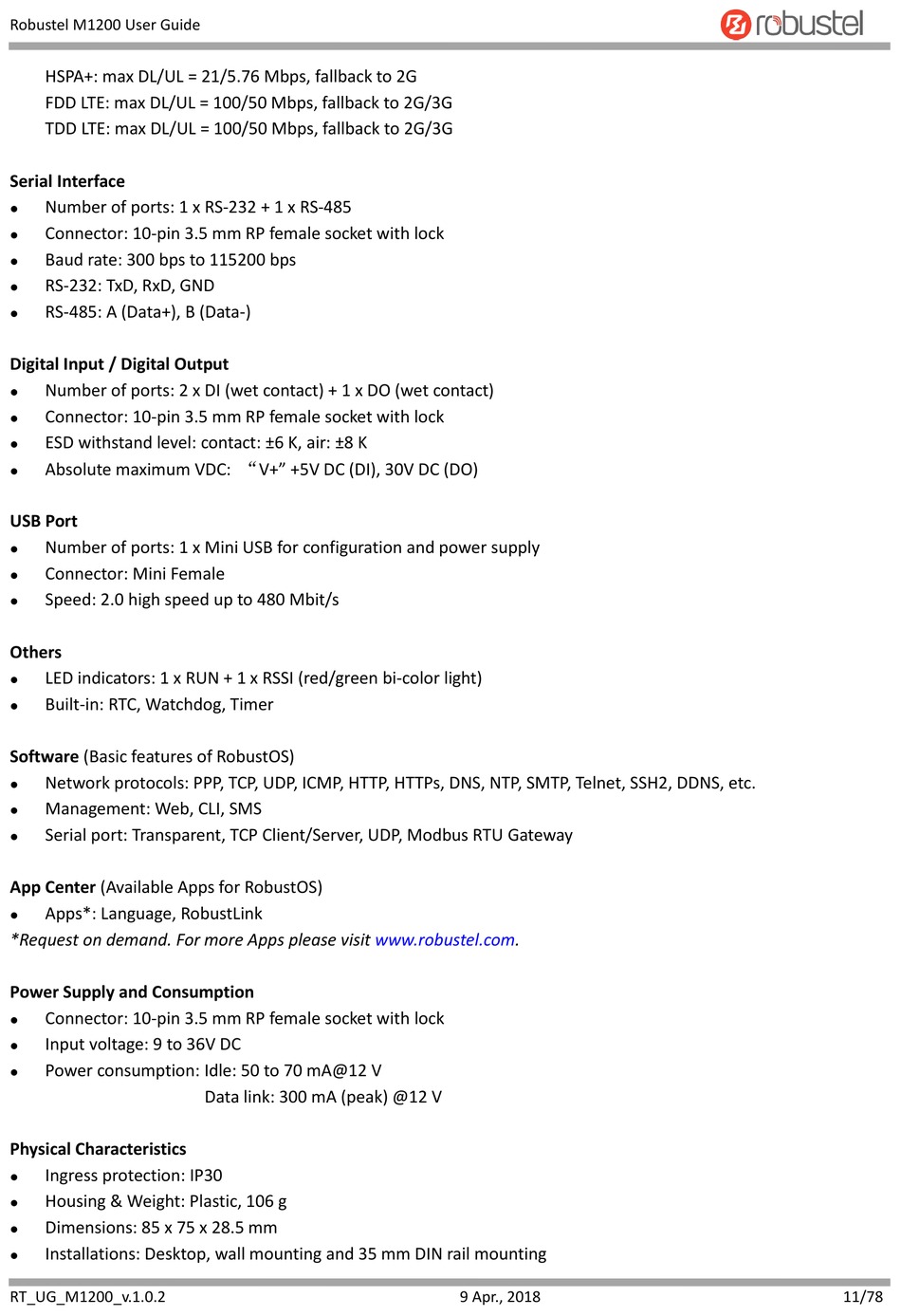

Robustel M1200 User Guide
HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G
FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
Serial Interface
Number of ports: 1 x RS-232 + 1 x RS-485

Connector: 10-pin 3.5 mm RP female socket with lock

Baud rate: 300 bps to 115200 bps

RS-232: TxD, RxD, GND

RS-485: A (Data+), B (Data-)

Digital Input / Digital Output
Number of ports: 2 x DI (wet contact) + 1 x DO (wet contact)

Connector: 10-pin 3.5 mm RP female socket with lock

ESD withstand level: contact: ±6 K, air: ±8 K

Absolute maximum VDC: "V+" +5V DC (DI), 30V DC (DO)

USB Port
Number of ports: 1 x Mini USB for configuration and power supply

Connector: Mini Female

Speed: 2.0 high speed up to 480 Mbit/s

Others
LED indicators: 1 x RUN + 1 x RSSI (red/green bi-color light)

Built-in: RTC, Watchdog, Timer

Software (Basic features of RobustOS)
Network protocols: PPP, TCP, UDP, ICMP, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, SSH2, DDNS, etc.

Management: Web, CLI, SMS

Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center (Available Apps for RobustOS)
Apps*: Language, RobustLink

*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector: 10-pin 3.5 mm RP female socket with lock

Input voltage: 9 to 36V DC

Power consumption: Idle: 50 to 70 mA@12 V

Physical Characteristics
Ingress protection: IP30

Housing & Weight: Plastic, 106 g

Dimensions: 85 x 75 x 28.5 mm

Installations: Desktop, wall mounting and 35 mm DIN rail mounting

RT_UG_M1200_v.1.0.2
Data link: 300 mA (peak) @12 V
9 Apr., 2018 11/78
