BIFFI RPS Installation, Operation And Maintenance Manual

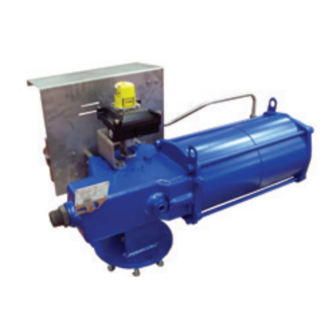

RPS SPRING RETURN PNEUMATIC ACTUATOR
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Before installation these instructions must be fully read and understood

TABLE OF CONTENTS

1. General warnings .......................................... 1
2. Installation ..................................................... 4
3. Operation and use ......................................... 8
4. Operational tests and inspections.............. 11
5. Maintenance. ............................................... 11
6. Troubleshooting .......................................... 16
7. Layouts ......................................................... 16
8. Date report for maintenance operations ... 21

1 GENERAL WARNINGS

IMPORTANT
The manual is an integral part of the machine. It
should be read carefully before carrying out any
operation and should be kept for future reference.
1.1 Generalities
Biffi actuators are conceived, manufactured
and controlled according to the Quality Control
System in compliance with EN ISO 9001
international regulation.
Emerson.com/FinalControl
1.1.1 Applicable regulation
EN ISO 12100-1: 2005: Safety of machinery -
Basic notions, general design principles.
Part 1 - Basic terminology, method.
EN ISO 12100-2: 2005: Safety of machinery -
Basic notions, general design principles.
Part 2 - Technical principles and specification.
2006/42/EC: Machine directive.
97/23/EC: Directive for pressure equipment
(PED).
2006/95/EC: Directive for low voltage
equipment.
2004/108/EC: Directive for the electromagnetic
compatibility.
94/9/EC: Directive and safety instructions
for use in hazardous area.
1.1.2 Terms and conditions
Biffi guarantees that all the items produced
are free of defects in workmanship and
manufacturing materials and meet relevant
current specifications, provided they are
installed, used and serviced according to the
instructions contained in the present manual.
The warranty can last either one year from
the date of installation by the initial user of the
product, or eighteen months from the date
of shipment to the initial user, depending on
which event occurs first. All detailed warranty
conditions are specified in the documentation
forwarded together with the product. This
warranty does not cover special products or
components not warranted by subcontractors,
or materials that were used or installed
improperly or were modified or repaired by
unauthorized staff. In the event that a fault
condition be caused by improper installation,
maintenance or use, or by irregular working
conditions, the repairs will be charged
according to applicable fees.
© 2017 Emerson. All rights reserved.
VCIOM-03749-EN 17/12
