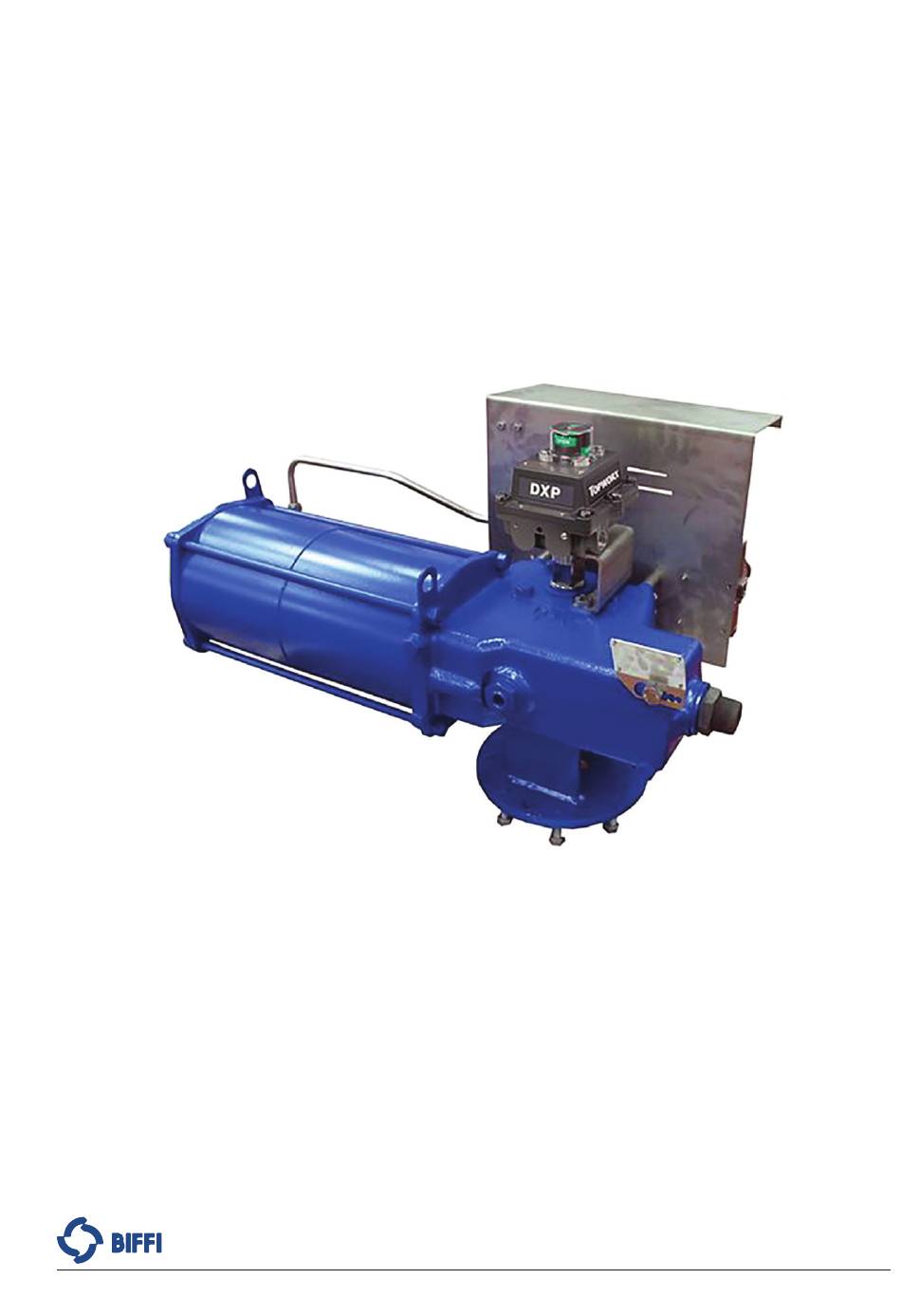

Installation, Operation and Maintenance Manual Section 1: General Warnings MAN 575 Rev. 4 July 2020 Introducing the Actuator RPD actuators are pneumatic low pressure Spring-Return, suitable for any quarter-turn application such as ball, plug, butterfly valves or dampers, in both ON-OFF and modulating heavy-duty service.
Section 1: General Warnings Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Figure 2 View from X View from Y ØE ØF ØC ØC №4 threaded №4 threaded holes holes ØH Threaded hole ØN Joint detail Threaded hole ØN ØM Both the actuator flanges can be used for valve coupling or the mounting of ancillary equipment (positioner, limit switch box, etc.).
Installation, Operation and Maintenance Manual Section 2: Installation MAN 575 Rev. 4 July 2020 Section 2: Installation Checks Upon Actuator Receipt • Check that the model, the serial number of the actuator and the technical data reported on the identification plate correspond with those of order confirmation, see Section 1.2.
Section 2: Installation Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 For a correct lifting procedure, please refer to following Figure. Figure 3 1 and 2 = Lifting eyelets Storage If the actuator needs storage, before installation follow these steps: •...
NOTICE To fix the actuator to the valve flange must be used the stud bolts and nuts supplied by Biffi! In case the actuator is supplied without stud bolts and nuts the following materials must be used as a minimum: •...
Page 12
Section 2: Installation Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Figure 5 View from X View from Y ØE ØF ØC ØC №4 threaded №4 threaded holes holes ØH Threaded hole ØN Joint detail ØM Threaded hole ØN Both the actuator flanges can be used for valve coupling or the mounting of ancillary equipment (positioner, limit switch box, etc.).
Installation, Operation and Maintenance Manual Section 2: Installation MAN 575 Rev. 4 July 2020 2.4.2 Assembly Procedure NOTICE Failure to comply with the following procedures may impair product warranty. WARNING Installation, commissioning and maintenance, and repair works should be carried out by qualified staff.
Section 2: Installation Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Pneumatic Connections Connect the actuator to the pneumatic feed line with fittings and pipes in accordance to the plant specifications. They must be sized correctly in order to guarantee the necessary air flow for the operation of the actuator, with pressure drops not exceeding the maximum allowable value.
Section 3: Operation and Use Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Section 3: Operation and Use Operation Description The air, or supply fluid, pressurizes the cylinder chamber relevant to the operation to carry out (opening or closing). This pressure starts the linear motion of the piston and the consequent rotation motion of the rack and pinion mechanism, to which the valve stem is coupled, in required direction.
Page 17
Installation, Operation and Maintenance Manual Section 3: Operation and Use MAN 575 Rev. 4 July 2020 Manual Override for RPD Double-Acting Pneumatic Actuator Actuator manual emergency operation is performed by rotating one of the two jackscrews by a wrench or by a handwheel (available on request). Figure 7 In standard configuration operating the screw mounted in the cylinder end flange results in valve opening while operating the screw mounted in the housing side wall results in the...
Page 18
Section 3: Operation and Use Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 ON-OFF service: four way control valve The diagram shows the simplest On-Off control. The gas supply pressure is applied to one side of the cylinder and exhausted from the opposite side. When the control valve (2) is actuated the connections of supply and exhaust to the cylinder chambers are reversed.
Installation, Operation and Maintenance Manual Section 3: Operation and Use MAN 575 Rev. 4 July 2020 Modulating service When modulating control is required as a function of a pneumatic or electric control signal, a positioner (5) is used, which controls the supply to the actuator cylinder to keep the valve in the required angular position.
Section 3: Operation and Use Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Calibration of the Angular Stroke It is important that the mechanical stops of the actuator (and not those of the valve) stop the angular stroke at both extreme valve position (fully open and fully closed), except when this is required by the valve operation (e.g.
Page 21
Installation, Operation and Maintenance Manual Section 3: Operation and Use MAN 575 Rev. 4 July 2020 Figure 12 Table 5. Without Jackscrew Manual Override Actuator Model Wrench C1 (mm) Wrench C2 (mm) RPD 15 RPD 30 RPD 60 RPD 120 Figure 13 Table 6.
Section 3: Operation and Use Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Calibration of Micro-switches (If Foreseen) (Refer to Safety Instructions Manual for limit switch box) WARNING Refer only to technical documentation related to installed switch-box model. NOTICE For mounting interface dimension of the Limit Switch box on the cover of the actuator, please refer to TN1163V (for metric dimension) or TN1163VU (for imperial dimension).
Calibration of the Operation Time (If required) The calibration of the operation time is made by Biffi Italia s.r.l. according to customer requirements and to technical data-sheet included in technical documentation. If necessary and required from Customer, it should be possible to modify or reset the operating time through flow regulator valves that check the flow quantity on pneumatic supply, refer to Figure 14.
Section 4: Operational Tests and Inspections Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Section 4: Operational Tests and Inspections NOTICE To ensure the guaranteed SIL grade, according to IEC 61508, the functionality of actuator must be checked with regular intervals of time, as described in the Safety Manual. Operational Tests and Inspections...
Section 5: Maintenance Installation, Operation and Maintenance Manual MAN 575 Rev. 4 July 2020 Section 5: Maintenance NOTICE Before executing any maintenance operation, it is necessary to close the pneumatic feed line and discharge pressure from the actuator and from the control unit (if foreseen any) to ensure the safety of maintenance staff.
Section 5: Maintenance Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Extraordinary Maintenance If there are leaks on RPD actuator or a malfunction in the mechanical components, or in case of scheduled preventive maintenance, the actuator must be disassembled and seals must be replaced with reference to the follow general sectional drawing and adopting the following procedures.
Page 27
Section 5: Maintenance Installation, Operation and Maintenance Manual MAN 575 Rev. 4 July 2020 If the sealing washer (17) must be replaced, measure the protrusion of the stop screw (30) with reference to the end flange surface (4), so as to be able to easily restore the setting of the actuator mechanical stop, once the maintenance procedures have been completed.
Page 28
Section 5: Maintenance Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Screw the stop screw into the threaded hole of the housing until it reaches its original position (the same protrusion with reference to the housing surface). Check that the sealing washer (17) and the washer (28) are in contact with the housing surface.
Page 29
Section 5: Maintenance Installation, Operation and Maintenance Manual MAN 575 Rev. 4 July 2020 Figure 15 Table 7. Item Description Housing Pinion Piston End flange Rack Shaft Cylinder gasket Shoulder washer Cylinder tube Tie rod Thrust bearing screw Sealing washer Sealing washer Sliding block Piston guide sliding ring...
Section 5: Maintenance Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Lubrication of Mechanism For normal duty the rack and pinion mechanism of the actuator is lubricated "for life". In case of high load and high frequency of operation it may be necessary to periodically restore lubrication: it is advisable to apply a generous coating of grease on the contact surfaces of moving parts, especially on the surface of the rack in contact with the thrust bearing sliding block and on the teeth of the rack and pinion.
Section 5: Maintenance Installation, Operation and Maintenance Manual MAN 575 Rev. 4 July 2020 The following grease is used by Biffi for standard working temperature and suggested for relubrication: Manufacturer: AGIP Type: GR MU/EP2 NLGI grade: Worked preparation (dmm): Drop point ASTM (°C):...
Clean or replace the cartridge Actuator does Blocked valve Repair or replace not work Failure of the control system Call Biffi Italia s.r.l. Customer Service Low supply pressure Restore (Section 1.4) Low supply pressure Restore (Section 1.4) Actuator too slow Wrong calibration of flow regulator valves Restore (Section 3.6)
Section 7: Layouts Spare Parts Order For spare parts order to the relevant Biffi office please make reference to Biffi order confirmation concerning all the supply, and serial number of the actuator, refer to Section 1.2 for any specific spare part for a specific actuator model.
Section 7: Layouts Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Parts List for Maintenance and Replacing Procedure Figure 17 Double-Acting Pneumatic Actuator Table 9. Parts list Item Description Material Housing Nodular cast iron Pinion Nodular cast iron Piston Carbon steel End flange...
Page 35
Installation, Operation and Maintenance Manual Section 7: Layouts MAN 575 Rev. 4 July 2020 Figure 18 Double-Acting Pneumatic Actuator with Manual Jackscrew Table 10. Parts list Item Description Material Housing Nodular cast iron Pinion Nodular cast iron Piston Carbon steel End flange Carbon steel Rack...
Page 36
Section 7: Layouts Installation, Operation and Maintenance Manual July 2020 MAN 575 Rev. 4 Figure 19 Declutchable Manual Override Table 11. Parts list Item Description Material External body Carbon steel Internal body Carbon steel Scrape ring *Rubber Flap Carbon steel Screw Stainless steel Screw...
Installation, Operation and Maintenance Manual Section 8: Date Report for Maintenance Operations MAN 575 Rev. 4 July 2020 Section 8: Date Report for Maintenance Operations Last maintenance operation date: (in factory, on delivery): ……… exec. by : ………… ……… exec. by : ………… ………...
