Overview
The NMX-PRS-N7142 Video Presentation Switcher incorporates low-latency
networked AV video distribution. The unit has six local inputs and two
independent outputs (both of the outputs are mirrored).
There are two models of the N7142. The NMX-PRS-N7142 is the base
presentation switcher, with two available Networked AV slots that can be
populated with Encoder and Decoder cards as required by the application.
The NMX-PRS-N7142-23 is an identical presentation switcher, pre-
populated with one N2312 Encoder card and one N2322 Decoder card.
Use the VIDEO SELECT buttons to choose which video
input (1-6) is displayed. The top row of buttons sends
the video to VIDEO OUTPUT 1. The bottom row sends
the video to VIDEO OUTPUT 2.
Six video inputs: two
VGA and four HDMI

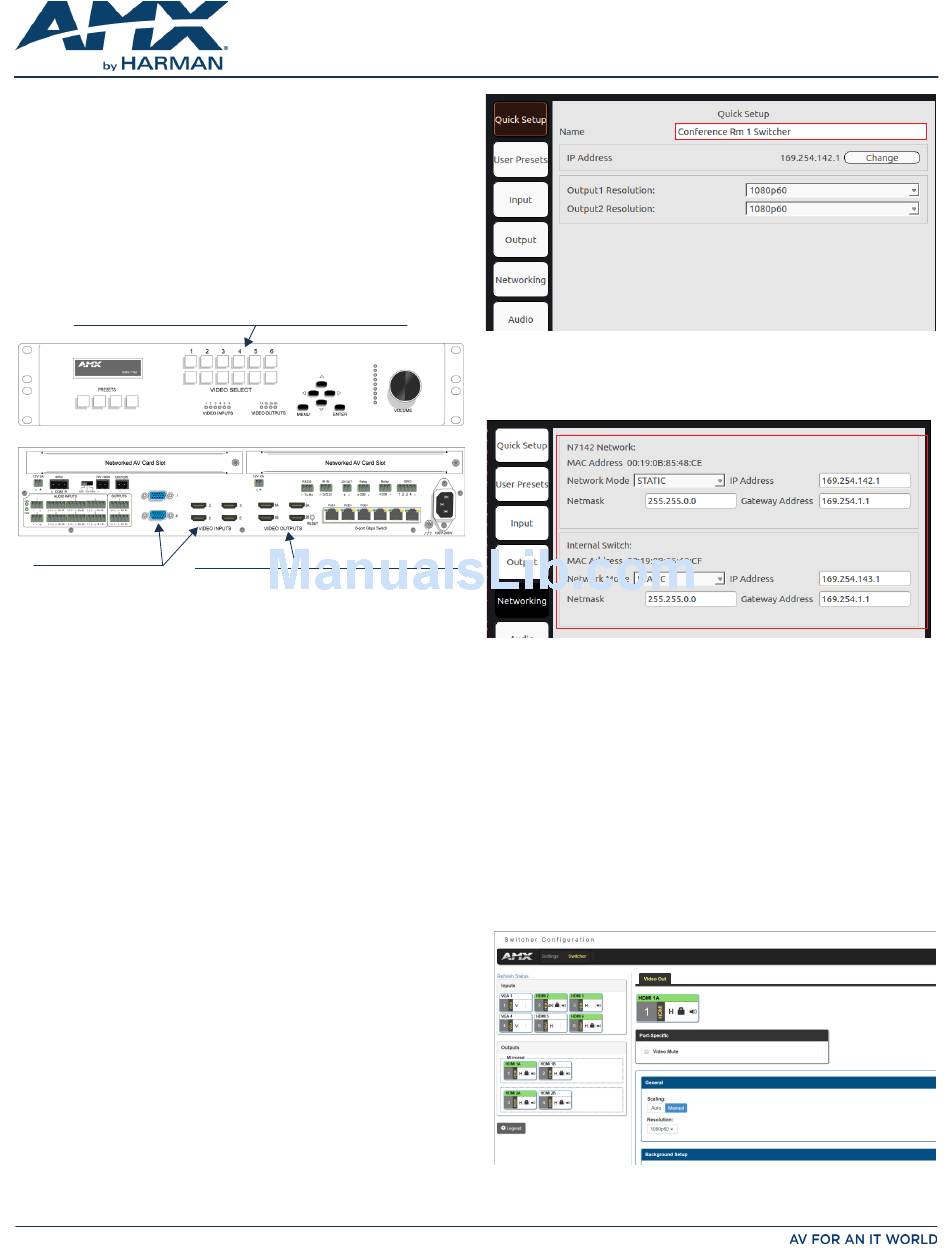

N7142 VIDEO SWITCHER
FIG. 1
Installing the N7142 Video Switcher
Follow the steps below for initial setup of the N7142.
1.
Connect a monitor (that supports 1080p60) to one of the VIDEO
OUTPUT connectors on the rear of the unit.
2.
If networked AV cards are installed:
• Connect the network cables from the cards to the built-in switch.
• Connect the HDMI output on the installed Decoder to an N7142 HDMI
input.
• Connect the HDMI input on the installed Encoder to an N7142 HDMI
output.
NOTE: If the AV card is connected to one of the three PoE+ ports, it will be
powered automatically once the network connection is established. If not,
then connect the two-pin phoenix adapter from the 12VDC output connector
of the N7142 to the 12VDC input connector on the card.
CAUTION: Do not run wiring that is connected to a PoE PSE port outside of
the building where the PSE resides. It is for intra-building use only.
3.
Connect all other video sources, displays, etc. as necessary for your
application.
4.
Apply power to the N7142 unit using the power cable provided.
5.
Once the unit completes the boot up process and the attached monitor
displays the AMX logo, press the MENU button to access the On-Screen
Display (OSD) setup menu. The Quick Setup page displays (see FIG. 2).
6.
Use the corresponding arrow and ENTER keys (on the front panel) to
assign the N7142 a Name.
Four video outputs: two HDMI mirrored pairs.
Channels 1A and 1B are a mirrored pair.
Channels 2A and 2B are a mirrored pair.
N7142
SET A NAME FOR THE UNIT
FIG. 2
7.
Navigate to the Networking page (see FIG. 3). For both the N7142 and
the Internal Switch, select AUTOIP (N7142 only), DHCP, or STATIC
from the Network Mode drop-down menu and then configure the other
network settings as appropriate.
CONFIGURE NETWORK SETTINGS
FIG. 3
Internal Switch Configuration
Once the switch's IP address has been configured, you can access all switch
settings via your web browser. Enter the switch's IP address into your
browser window. When the login screen appears, enter admin as the
username.
Note: No password is required initially, but you should create one immediately
for security purposes.
Advanced Configuration
For more advanced configuration options, enter the unit's IP address into
your web browser. When prompted, enter the default username and
password (admin and password). The Switcher Configuration page
displays (see FIG. 4). From here, you can view the status of N7142 Inputs
and Outputs as well as make minor configuration adjustments. Click the
Settings link at the top of this page to access more detailed configuration
options (Settings, Audio, IR, etc.) and configure your unit.
SWITCHER CONFIGURATION SCREEN
FIG. 4
