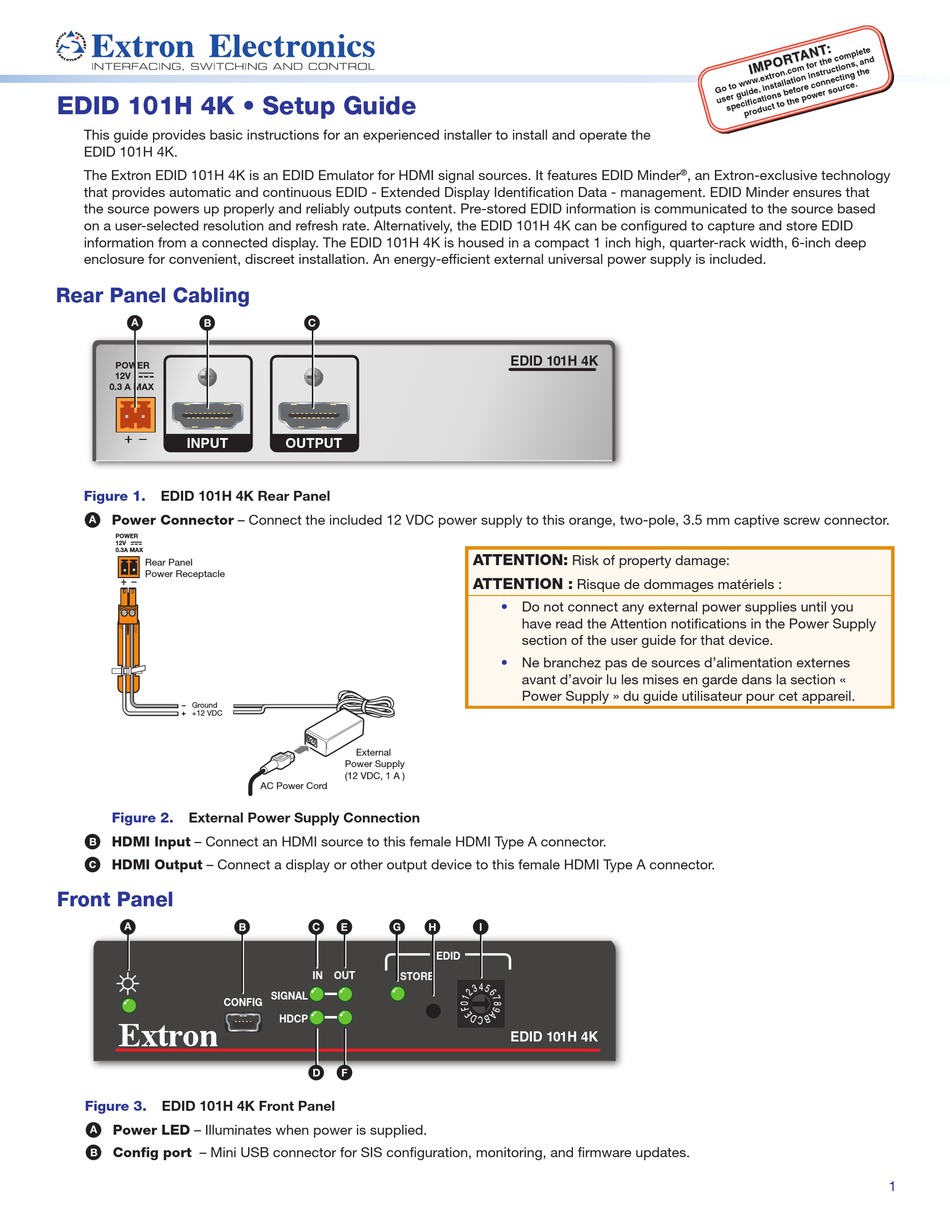

EDID 101H 4K • Setup Guide
This guide provides basic instructions for an experienced installer to install and operate the
EDID 101H 4K.

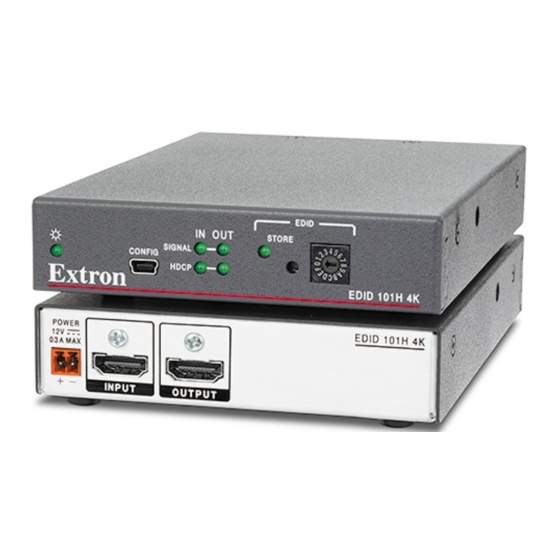

The Extron EDID 101H 4K is an EDID Emulator for HDMI signal sources. It features EDID Minder
that provides automatic and continuous EDID - Extended Display Identification Data - management. EDID Minder ensures that
the source powers up properly and reliably outputs content. Pre-stored EDID information is communicated to the source based
on a user-selected resolution and refresh rate. Alternatively, the EDID 101H 4K can be configured to capture and store EDID
information from a connected display. The EDID 101H 4K is housed in a compact 1 inch high, quarter-rack width, 6-inch deep
enclosure for convenient, discreet installation. An energy-efficient external universal power supply is included.
Rear Panel Cabling
A B
POWER
12V
0.3 A MAX
INPUT
Figure 1. EDID 101H 4K Rear Panel
Power Connector – Connect the included 12 VDC power supply to this orange, two-pole, 3.5 mm captive screw connector.
A
POWER
12V
0.3A MAX
Rear Panel
Power Receptacle
Ground
+12 VDC
Figure 2. External Power Supply Connection
HDMI Input – Connect an HDMI source to this female HDMI Type A connector.
B
HDMI Output – Connect a display or other output device to this female HDMI Type A connector.
c

Front Panel

A B
CONFIG
Figure 3. EDID 101H 4K Front Panel
Power LED – Illuminates when power is supplied.
A
Config port – Mini USB connector for SIS configuration, monitoring, and firmware updates.
B
C
OUTPUT
External
Power Supply
(12 VDC, 1 A )
AC Power Cord
C E G H
EDID
IN OUT STORE
SIGNAL
HDCP
D F
EDID 101H 4K
ATTENTION:
Risk of property damage:
ATTENTION :
Risque de dommages matériels :
• Do not connect any external power supplies until you
have read the Attention notifications in the Power Supply
section of the user guide for that device.
• Ne branchez pas de sources d'alimentation externes
avant d'avoir lu les mises en garde dans la section «
Power Supply » du guide utilisateur pour cet appareil.
I
EDID 101H 4K
, an Extron-exclusive technology
®
1
