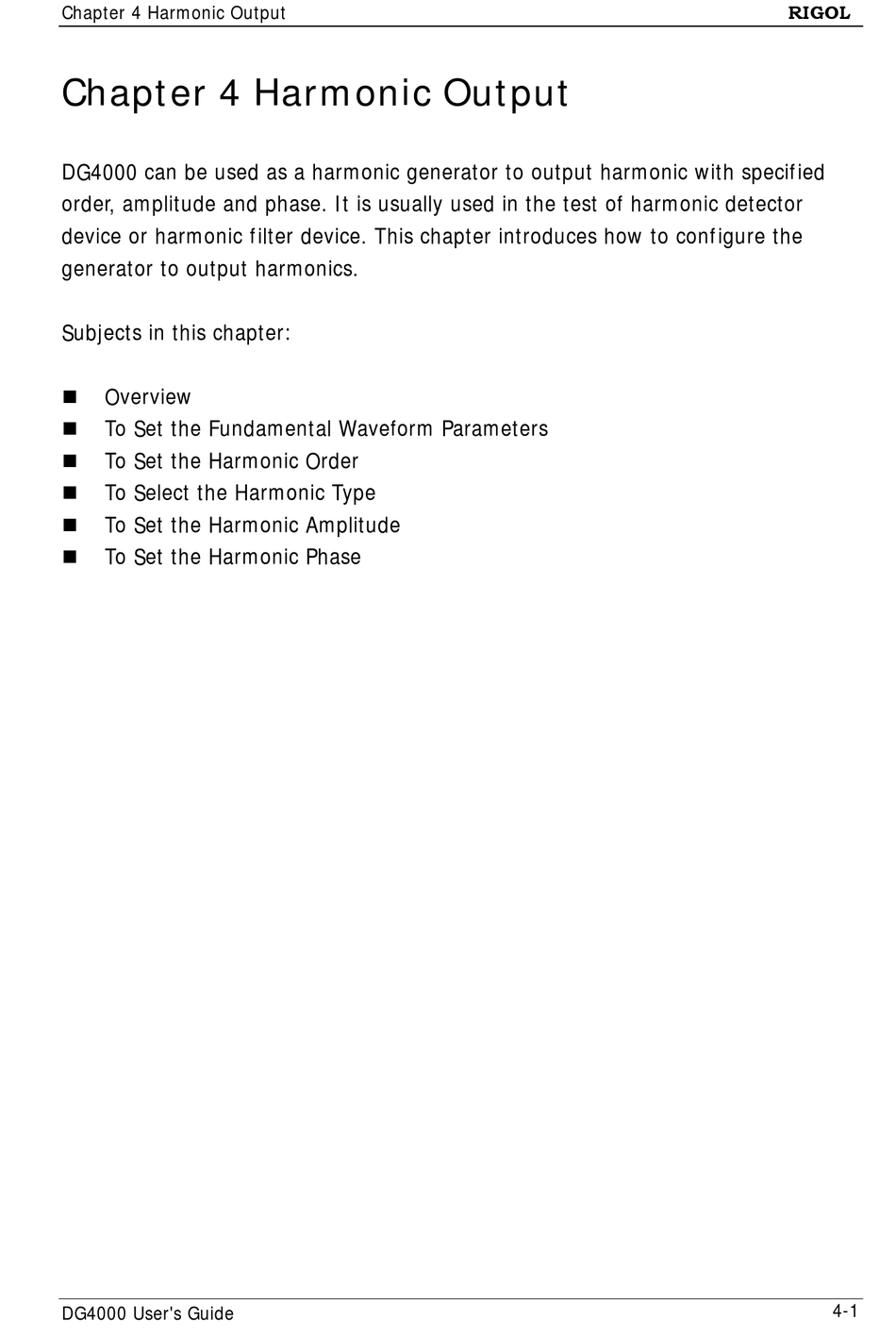

Chapter 4 Harmonic Output

Chapter 4 Harmonic Output
DG4000 can be used as a harmonic generator to output harmonic with specified
order, amplitude and phase. It is usually used in the test of harmonic detector
device or harmonic filter device. This chapter introduces how to configure the
generator to output harmonics.
Subjects in this chapter:
Overview

To Set the Fundamental Waveform Parameters

To Set the Harmonic Order

To Select the Harmonic Type

To Set the Harmonic Amplitude

To Set the Harmonic Phase

