Chapter 3 Arbitrary Waveform Output
2) Press Execute to apply the setting defined in step 1). The waveform
editor will automatically use straight lines to connect the start point (point
2, the level is 4 V) with the stop point (point 4, the level is -2 V) and
automatically generate point 1 and point 3 to create a continuous
waveform.
3) After finishing editing all the points, press
menu. At this point, press Save to enter the file storage interface (refer to
"Store and Recall") to save the edited arbitrary waveform.

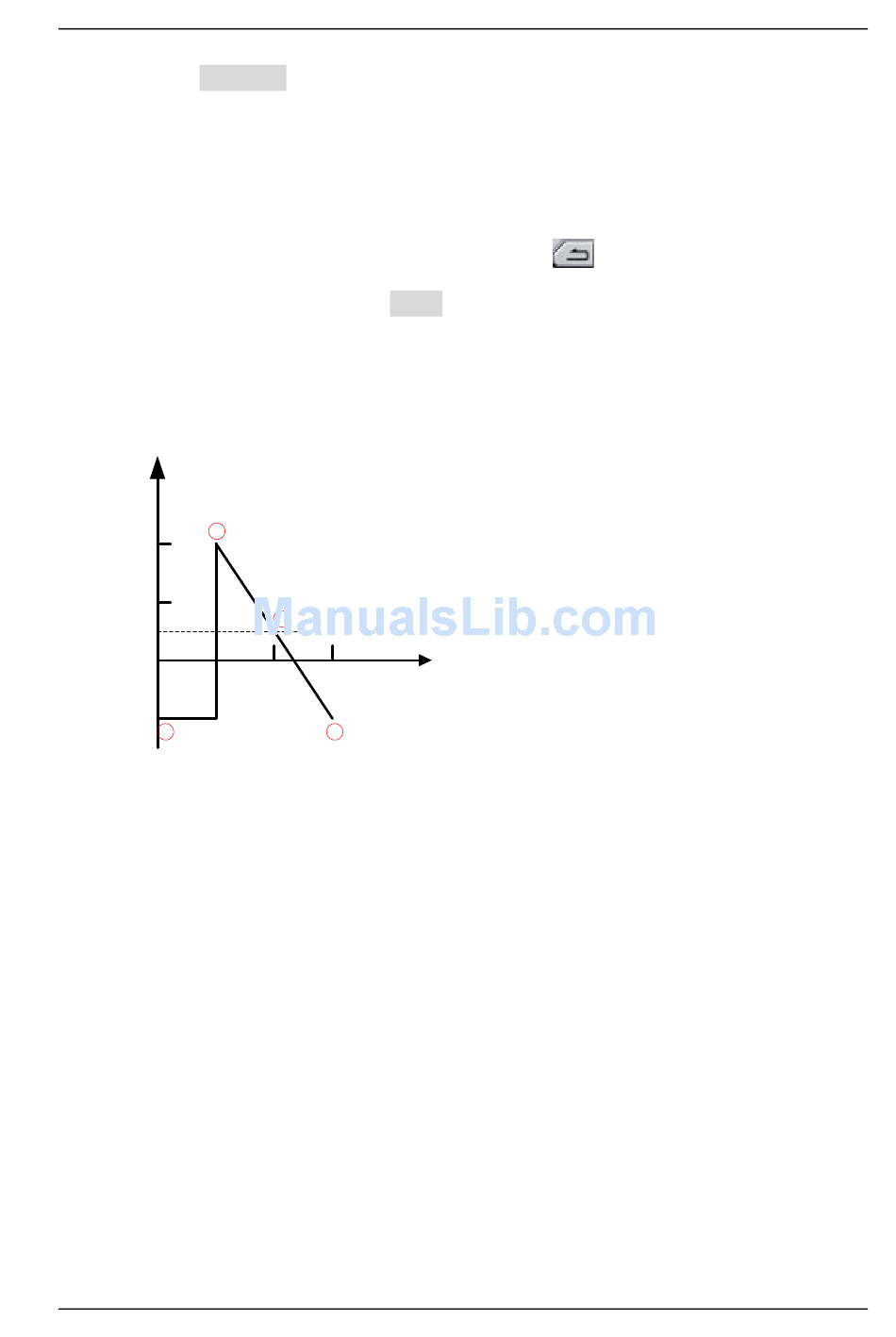

7. View the edited arbitrary waveform.
V
2
4
2
0
4
-2
1
Explanation: As can be seen from the above figure, the waveform editor inserts
values at the start point (point 2) and the stop point (point 4) according to the
current interpolation mode; then, it automatically generates point 1 and point 3 to
create a continuous waveform.
DG4000 User's Guide
3
8 12 μs
4
to return to the previous
