5. Note that the first wrap comes back on itself exactly and the second run starts
the diagonal wrap. Wrap from the coax cover toward the fitting with one half
overlap with each winding. The last wrap again comes straight back over the
previous wrap without a diagonal. The seal is slightly sticky and should be
molded now by hand to remove any gaps and to ensure that all the wraps are
blending together.
6. At some point the wrap will almost fuse together and the material may have to be
cut away from the cable.

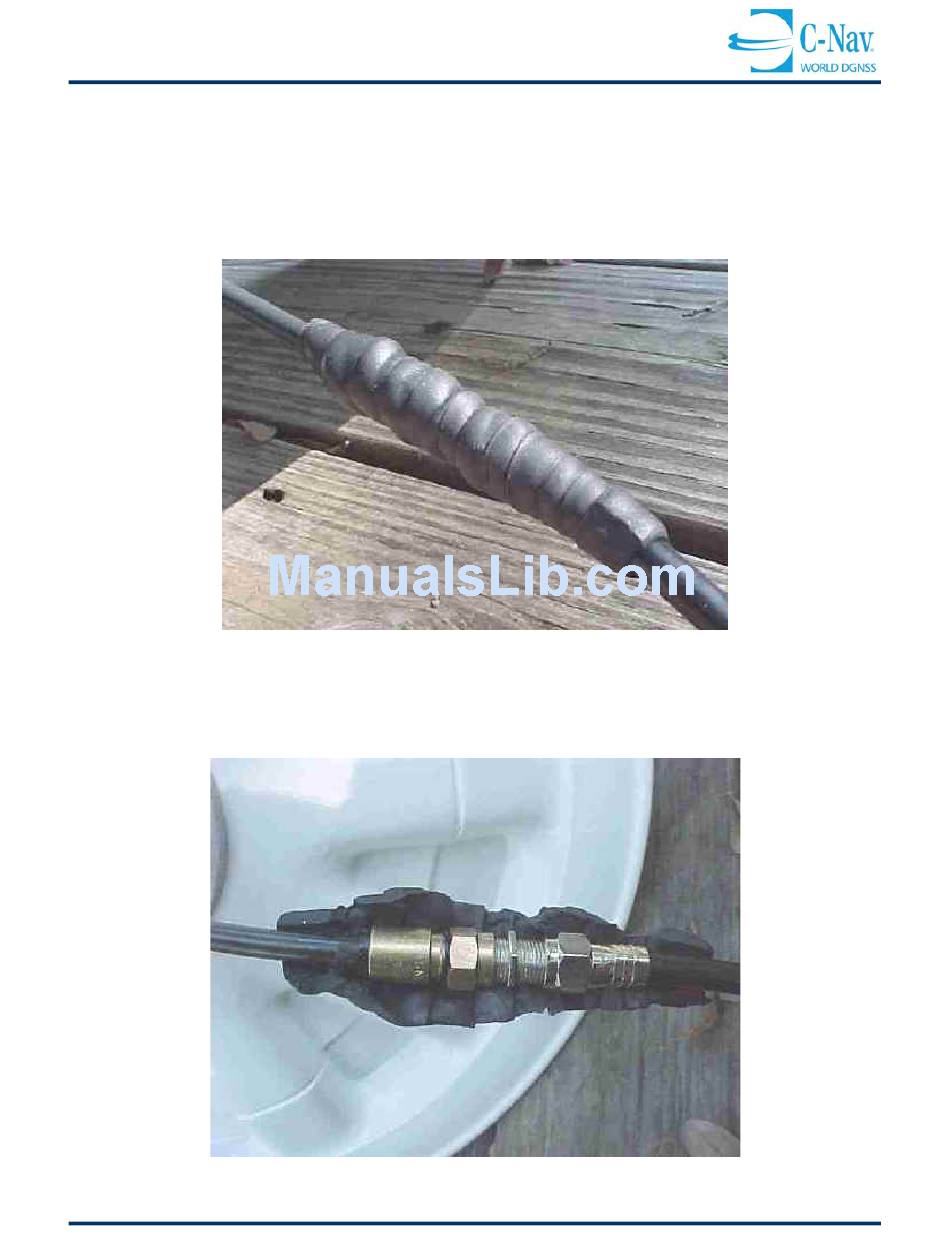

Figure 5-13: Coaxial Cable Fully Sealed

Figure 5-14: Coax-seal Cross-section
