C-Nav Hardware Reference Guide

C-Nav1000 Antennas

Beacon Receiver Specifications
Beacon Frequency Range
Beacon LNA Gain
L- band Receiver Specifications
L- band Frequency Range
L- band LNA Gain
Power Input Specifications
Input Voltage
Input Current
Mechanical Specifications
Enclosure
Dimensions
Weight
Mounting Thread
Connector
Environmental Specifications
Storage Temperature
Operating Temperature
Humidity
283.5 - 325.0 kHz
34 dB
N/ A
N/ A
4.0 - 13 VDC
50 - 60 mA
PVC plastic
128 mm square x 84 mm high
5.06" square x 3.33" high)
450 g (1.0 lb)
1- 14- UNS- 2B
TNC- S
-40° C to +80° C
-30° C to +70° C
100% condensing

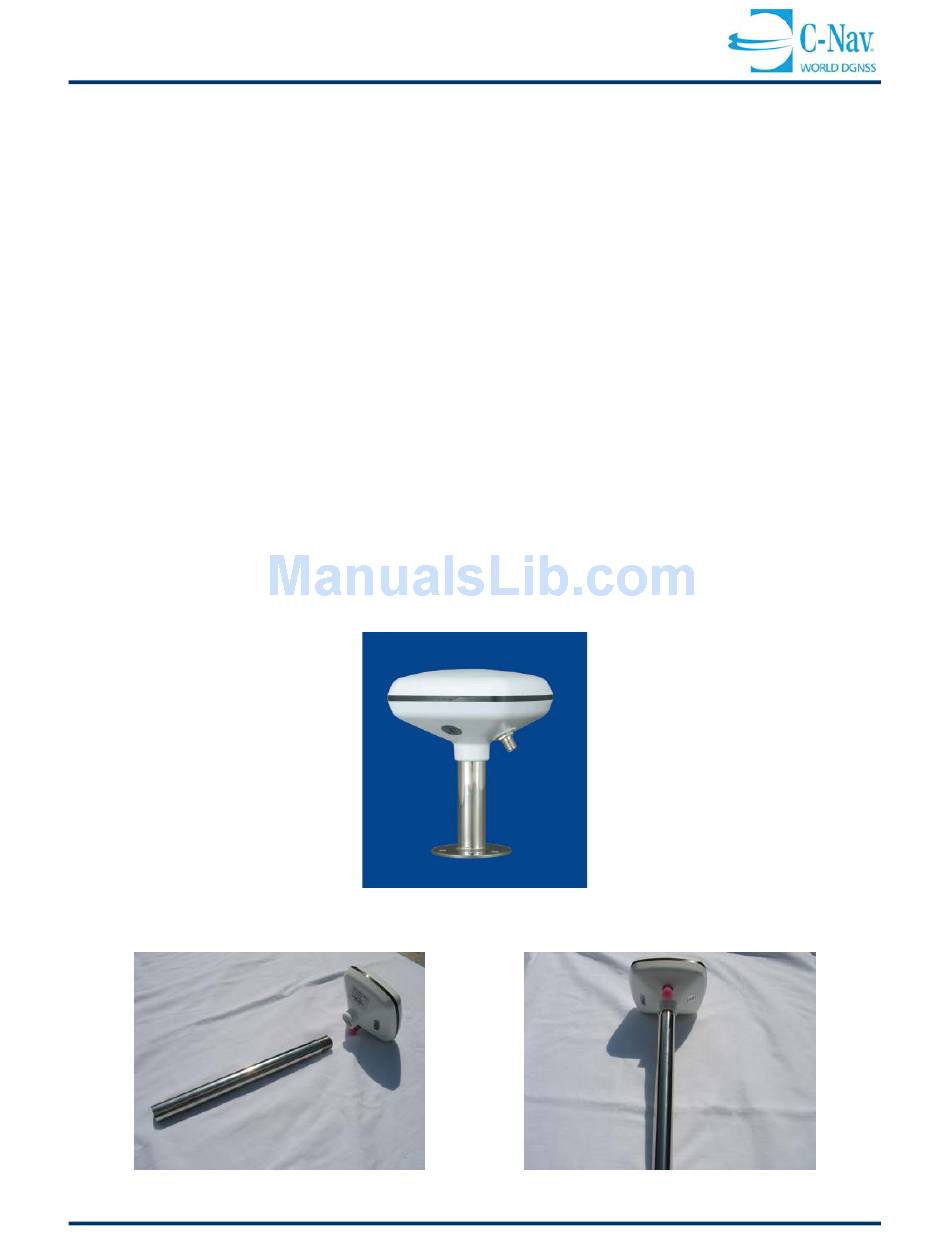

Figure 3-38: MGL-4 (H-field) Antenna

Figure 3-39: MGL-3 Antenna and Mounting Pole

47
