C-Nav1010 Antennas

Table 3-10: C-Nav1010 Standard Antenna Specifications

Frequency
Polarization
Pre–Amplifier
Noise Figure
Filter Rejection
Impedance
VSWR / RL
Band Rejection
RF Power Handling
Input Voltage
Power Consumption
Cable Connector
Operating Temp
Altitude
Finish
Material
Weight
Vibration
Designed to
Mount Dimensions

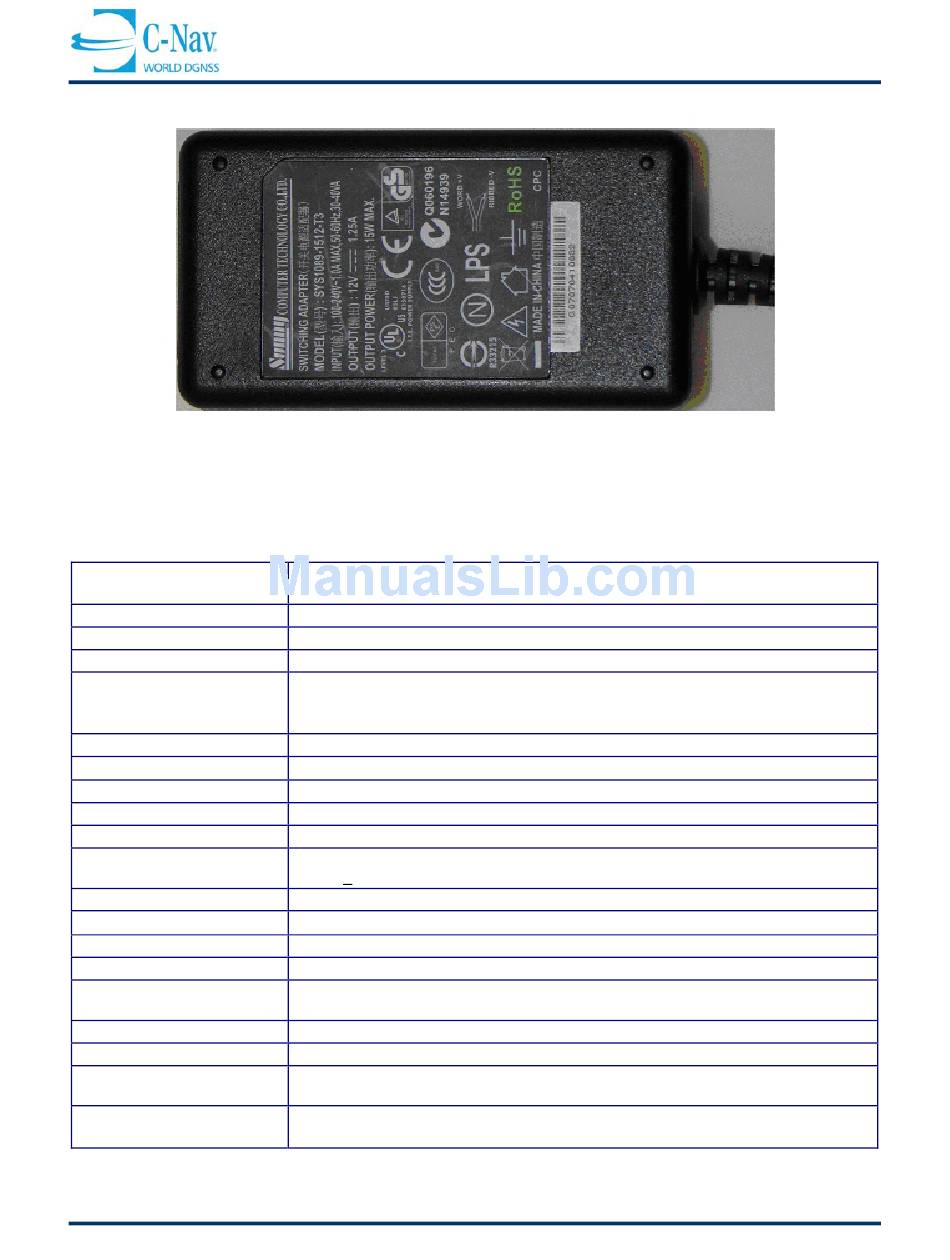

Figure 3-11: C-Nav1010 Power Supply

1525-1660 MHz
GPS L1 plus C-Nav
Right Hand Circular (RHCP)
35dB gain (+/-1.2dB)
<2.1dB
9dB @ 1690MHz
21dB @ 1626MHz
38dB @ 1660MHz
50 Ohms
≤ 2.0:1 / 9.54dB min.
20dB @ 250MHz
+30dBm (1 W)
2.5 – 24 VDC
0.2W
39mA +10mA @ 5VDC
TNC Female
-55°C to +85°C
70,000ft; 21,336m
Skydrol resistant polyurethane Enamel with nickel plated base
6061-T6 Aluminum alloy base composite radome, impact, abrasion, UV, solvent,
skydrol resistant, and fire retardant
397g (14oz)
>30g's
FAA TSO-C144, DO-160D, D0-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-
STD-810, AND SAE J1455
1"-14 thread
Depth of 1.25"; 32mm
32
