Figure 3-3: C-Nav3050 Standard GNSS Antenna Offset

•

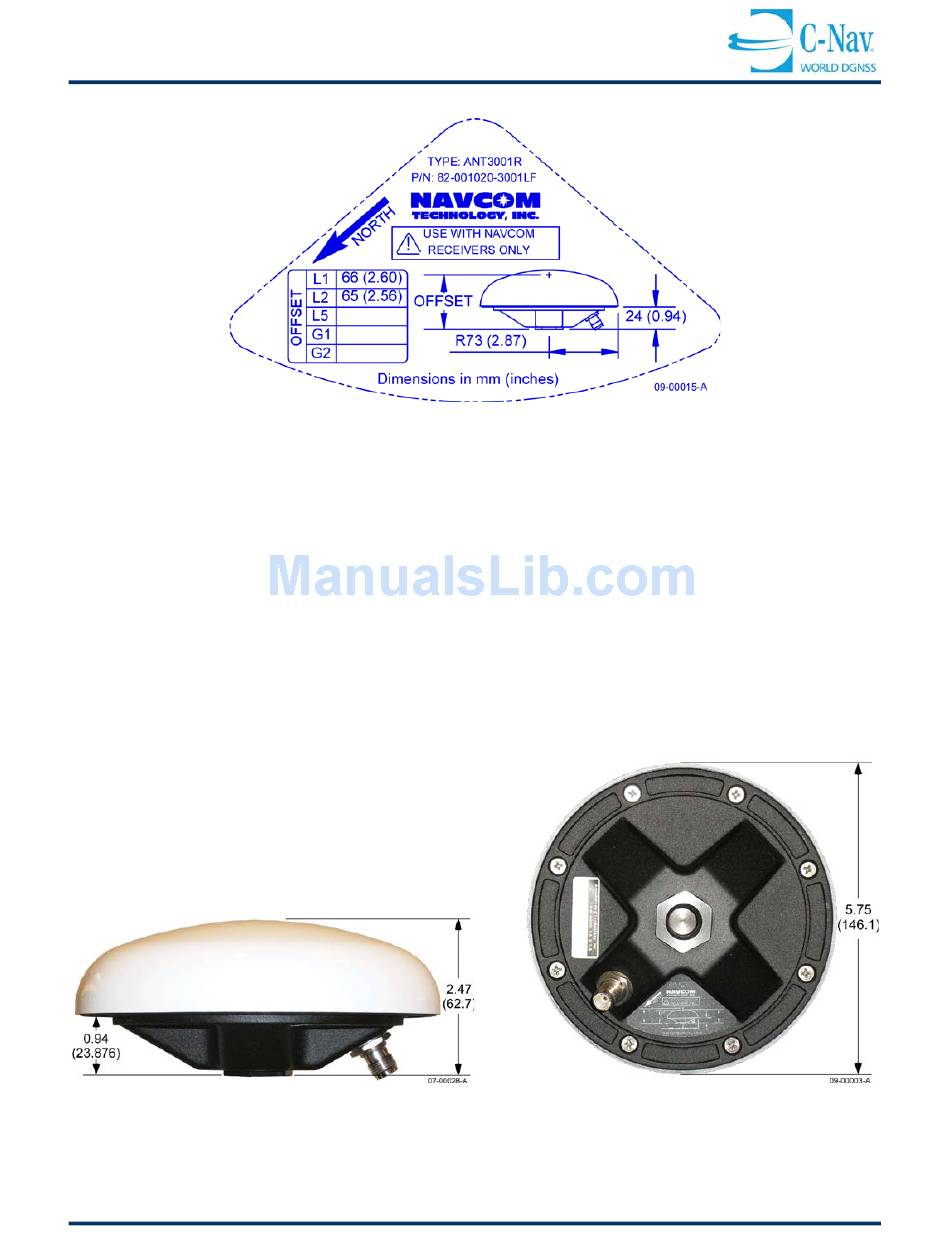

Figure 3-3 is a drawing of the label on the Standard GNSS antenna (P/N NAV82-
001020-3001LF). The phase center provided is based on NGS test results. NGS does
not currently provide GLONASS calibrated values.
•
To achieve the greatest level of accuracy, the absolute phase center values
must be incorporated into your processing. Phase center information on all C-
Nav3050 antennae is found on the NGS website:
http://www.ngs.noaa.gov/cgi-bin/query_cal_antennas.prl?Model=NAV

Figure 3-4: C-Nav3050 Standard (P/N NAV82-001020-3001) Antenna Dimensions
