Option #5: 19" Rack Mount
Use this adaptor if installing the C-NaviGator to a rack. The 19" Rack Mount takes up 7U of rack
space and is 12 ¼" in height. Appropriate hardware is included to secure the C-NaviGator to the
Rack Mount prior to mounting. Bolt tread size is M4 x 6mm

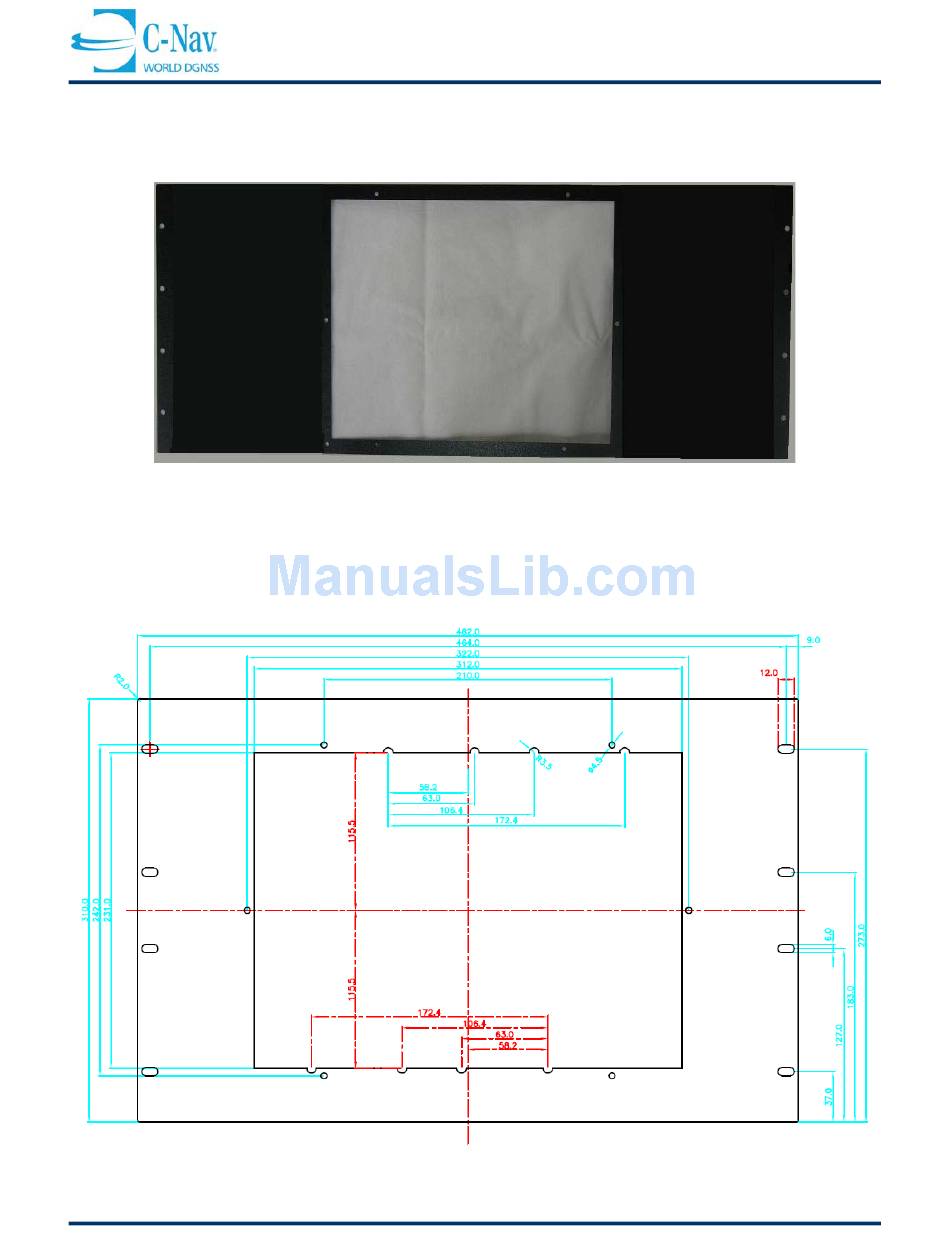

Figure 3-58: 19" Mounting Kit (for C-NaviGator II) / SYNIWO-6710-7CBR9
