To achieve the greatest level of accuracy, the absolute phase center values must be
incorporated into your processing. Phase center information on this antenna is found
on the antenna bottom, and in the figure below.

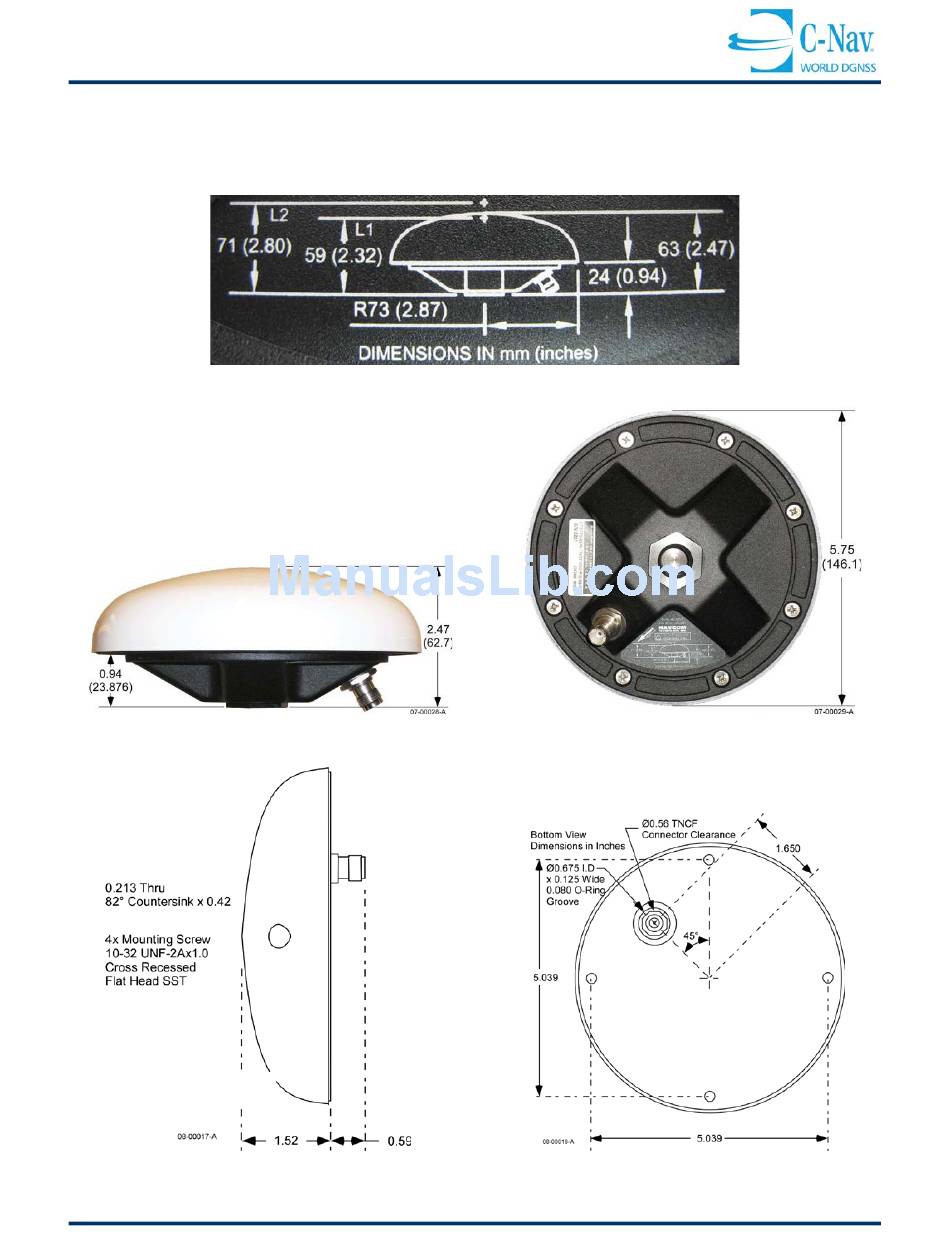

Figure 3-24: C-Nav2050 Standard Antenna Phase Center Dimensions

Figure 3-25: C-Nav2050 Antenna Dimensions [inches (mm)]

Figure 3-26: C-Nav2050 Airborne Antenna Dimensions
