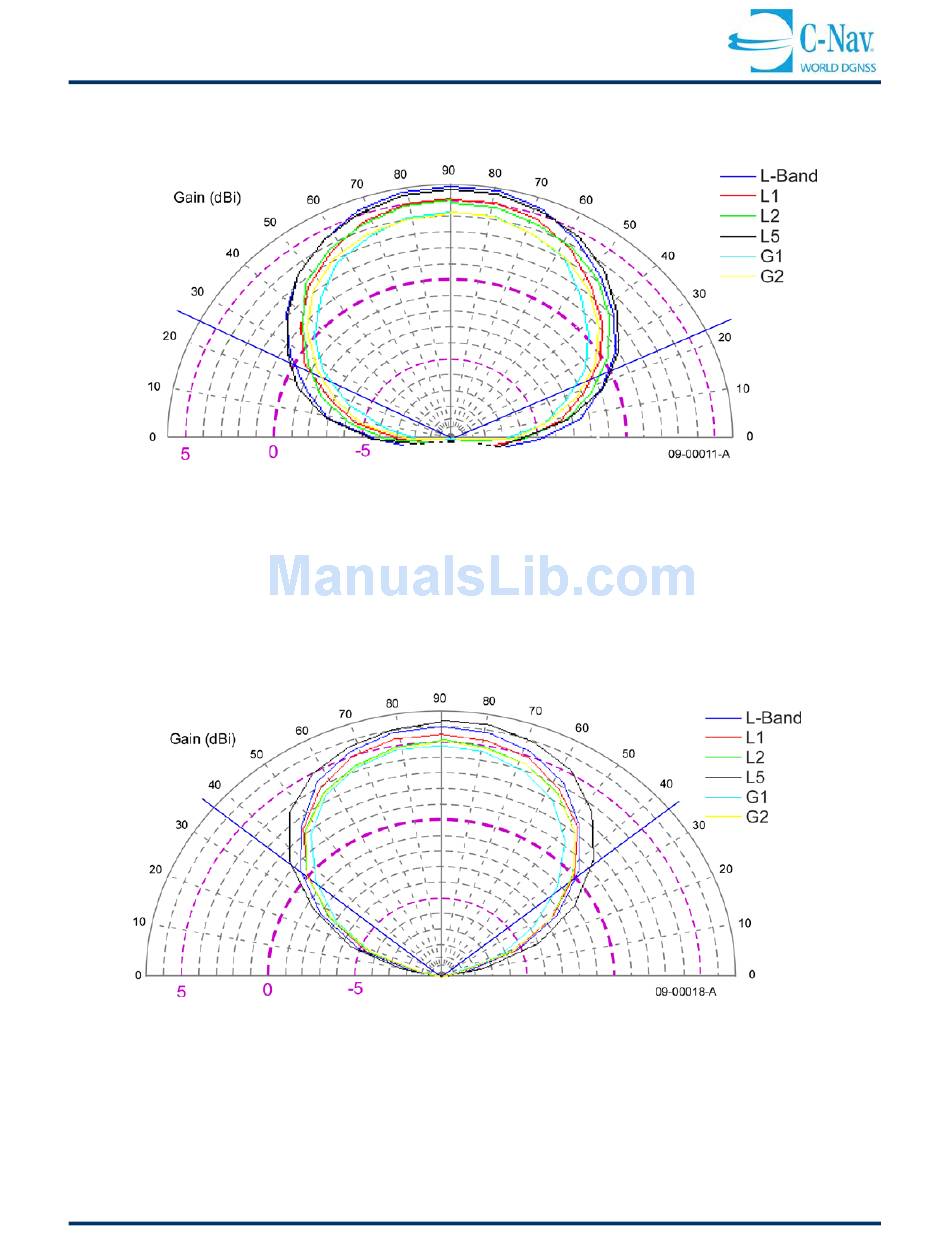

Figure 3-7: C-Nav3050 Standard & Airborne Antenna Radiation Pattern
•
Optimal antenna performance is realized at elevations greater than 25º.
•
There is a 10dB variation between 0º and 90º elevation (factor 10x); therefore, lower
elevation satellites are always more difficult to track.
•
There is a 5dB variation between ~35º and 0º elevation (factor >3x)

Figure 3-8: C-Nav3050 Base Antenna Radiation Pattern

•
Optimal antenna performance is realized at elevations greater than 35º.
•
There is a 11dB variation between 15º and 90º elevation (factor >10x); therefore, lower
elevation satellites are always more difficult to track.
•
There is a 9dB variation between ~35º and 0º elevation (factor >8x)
