3

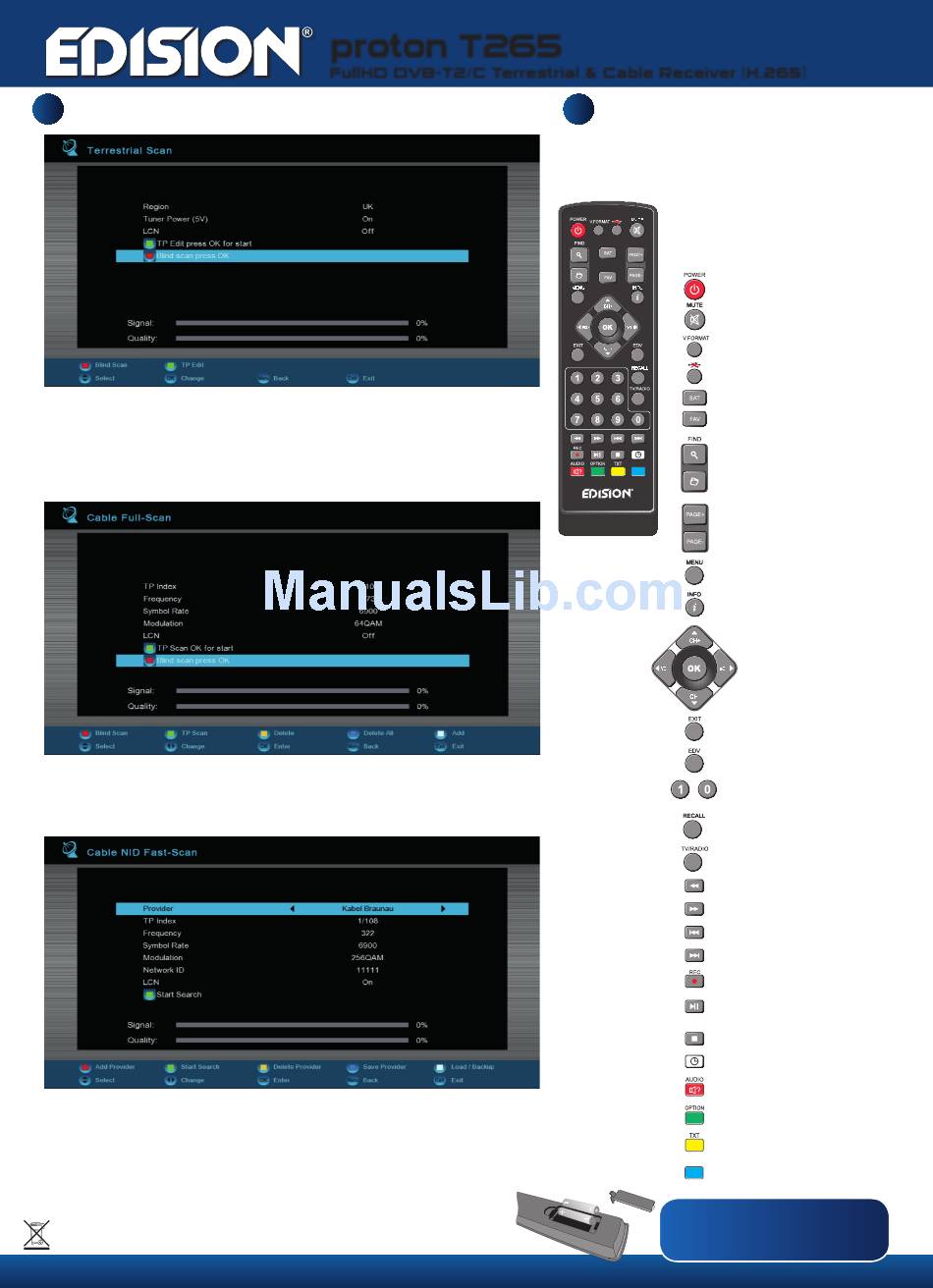

Installation
Terrestrial Scan
After you have connected the antenna cable to the receiver and have sufficient signal level, select the «Blind
scan press OK» button and press the «OK» button or the red button on your remote control to search for
digital terrestrial (DVB-T / T2) channels. If you want a manual search, select «TP Edit press OK for start»
with «OK» and then press the «OK» button or the green button on your remote control to confirm. Select the
«CH. No.» (TP) channel and then «Start Search» with the «OK» or the green button.
Cable Full-Scan
After you have connected the antenna cable to the receiver and have sufficient signal level, select the «Blind scan press ΟΚ» and
press «OK» or the red button on your remote control to search for all available digital cable programs (DVB- C) Info: This process
can take up to 20 minutes depending on the cable provider!
Cable NID Fast-Scan (Cable Provider NID Scan)
After you have connected the antenna cable to the receiver and have sufficient signal level, select the «Provider» and «Provider name»
(for example, KD Muenchen) from the list. Then go to «Start search» and press «OK» or the green button on your remote control,
then the programs of your cable provider should appear in a few seconds. If your provider is not in the list, please contact your cable
provider directly and ask for your 5-digit network ID (e.g., NID 11111). Then enter your NID and press «Start Search» or the green key.
Inserting batteries into the remote control
Pay attention to the correct polarity while inserting the batteries (2XAAA).
If the remote is not to be used for extended period of time please remove the batteries to avoid
potential damage to the remote. Dispose of the batteries properly according to recycle procedures.
proton T265
FullHD DVB-T2/C Terrestrial & Cable Receiver (H.265)
4

Remote Control Unit

Note: Many of the listed keys have multiple functions which
are shown upon menu display. Some keys and functions
refer to optional features.
Important features and keys are
explained in the functions below.
The respective keys are in red on the
graphs.
On/Off button.
Mute On/Off.
Changes the screen TV standard.
Safe USB Removal
Displays the satellite lists.
Displays the favourite lists.
To search for programs in lists.
WebTV
Displays a file list.
Scrolls up (+) or down (-) in
lists of channel lists.
Displays the main menu.
Displays the information bar.
Exits a Menu/Dialogue window
Selection of the electronic program
guide EDIVISION.
Selection of TV/Radio program.
...
Input of numbers or letters in
the menus.
Returns to the previous program.
Toggles between TV and Radio mode.
Allows fast backward.
Allows fast forward.
Skips to the beginning or previous
Recording/Image.
Skips to the beginning or previous
Recording/Image.
Starts recording manually.
Starts Playback/Pauses playback.
Finishes TimeShift, a recording
or a playback.
WebTV
Allows you to set the time at which the Receiver
autom. switches to standby mode.
Calls up the Audio menu.
Option button.
Calls up the Subtitle/Teletext menu.
WebTV
Web TV button (not supported).
For further information, please visit our website:
www.edision.gr
Use the arrow buttons to scroll up
in lists. Below, scroll left or right or
change the volume. Confirm the
menu inputs with the OK button
or call up the channel list.
