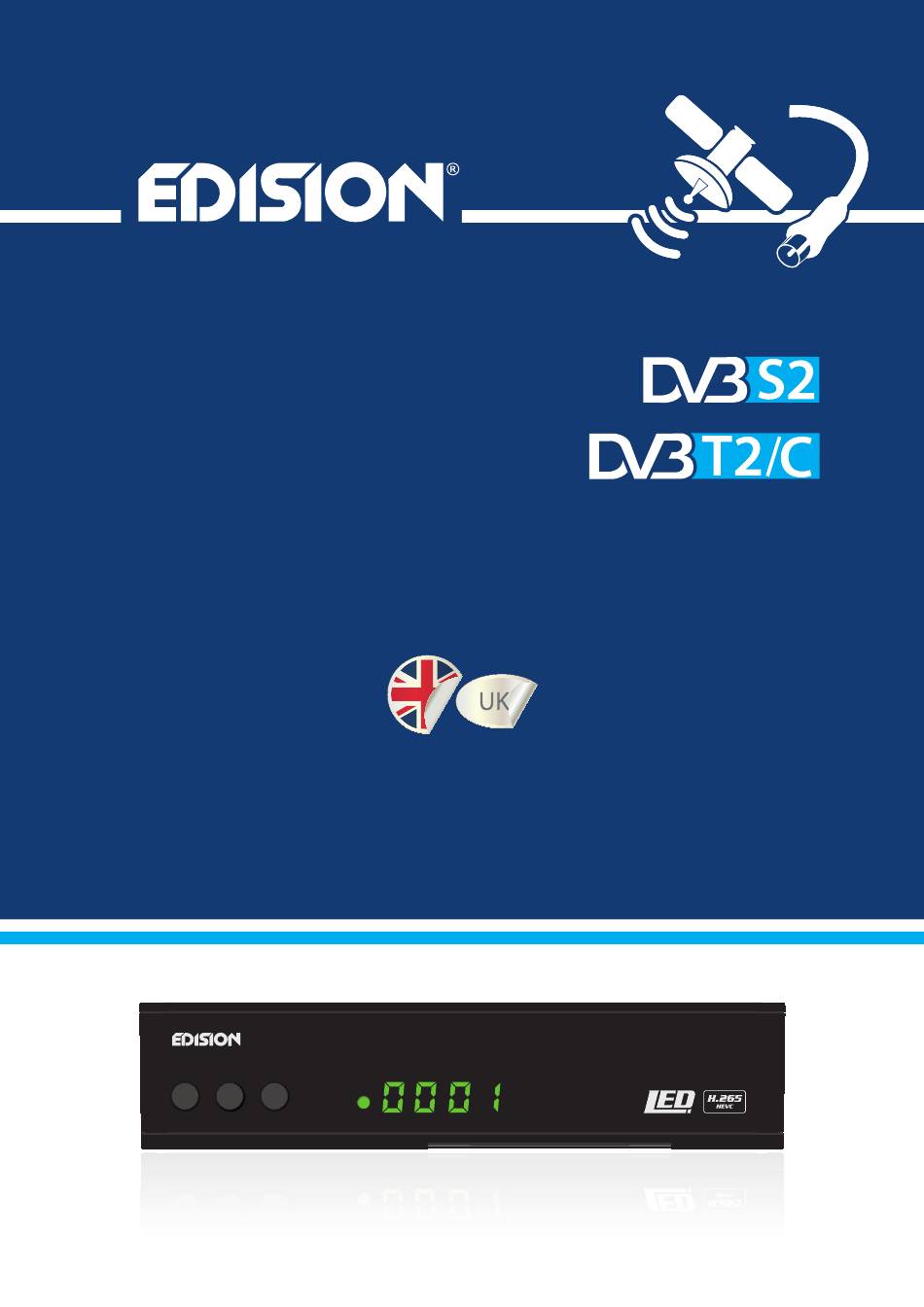

- Page 1 piccollino S2 + T2/C High Definition Combo Receiver User’s Guide piccollino S2+T2/C POWER P O W E R C H - C H + p i c c o l l i n o S 2 + T 2 / C...
-
Page 2: Table Of Contents
Contents ►Safety .......................4-5 ►Remote control ....................6 ►Description ......................7 ►Technical Data ....................8 ►Information bar ....................9 ►EDIVISION - Program eGuide ..............10-11 ►Service .......................12 Organizing Services ......................12 Organizing Favourites ......................14 ►Installation ......................16 Satellite installation .......................16 FastScan Satellite .........................18 Auto Installation ........................18 Satellite Guide ........................19 Terrestrial Installation ...................... - Page 3 ►Conditional Access ...................26 Card info ..........................26 ►Media ........................27 Movie ............................27 Music .............................27 Images ..........................27 File List / Software ........................27 Disk management .........................29 Remove USB Device Safely! ....................29 ►Application .......................31 YouTube ..........................31 RSS Reader ..........................31 Weather forecast ........................31 Google Maps .........................31 Ftp ............................31 Web TV ..........................31 Web server ..........................31...
- Page 4 ► Important safety instructions Read these instructions. Keep these instructions in a safe place. Follow all warnings. Follow all instructions. Do not use the device near water. Only clean with a dry cloth. Do not use near heat sources, such as radiators, heat accumulators, ovens or other devices (including amplifiers) generating heat.
- Page 5 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR This symbol indicates that there is risk of electric shock. This symbol indicates that the operating instructions contain important operating and maintenance instructions. This symbol indicates that there is a double insulation between voltage and user accessible parts between the product.
-
Page 6: Remote Control
►Remote Control On/Off button. Mute On/Off. Starts recording manually. Start playing the TimeShift function and / or a Recording. Back to normal recording speed. Finishes TimeShift, a recording or a playback. Pauses playback. Scrolls listings per page backward. Fast Possibility backwards. Scrolls listings per page forward. -
Page 7: Description
►Description Front Panel POWER button: Activates/Deactivates piccollino S2+T2/C the device CH- / CH+ buttons: for moving POWER in the program lists Infrared sensor for the reception of remote control commands Display LED, displays current information Card reader Back Panel ANT IN: Input for connecting to terrestrial or cable signal from the antenna LNB IN: Connection for the coaxial cable LNB IN 13/18V... - Page 8 ►Language Selection During the initial start, please select your language. ► Features • Type: Digital Combo Receiver for DVB-S2, DVB-T2 and DVB-C H.265/HEVC • Full HD H.265/HEVC decoding support • Resolution: 480p, 576p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz, 1080p/50Hz, 1080p/60Hz TV Standard •...
-
Page 9: Information Bar
► Information bar (InfoBar) When in the TV/Radio mode, the 'INFO' button displays an information bar (InfoBar) at the lower edge of the screen. This bar is faded-in up to 10 seconds. How to change the duration of fading of the information bar: 1. - Page 10 ► EDIVISION - Your electronic program guide Standard: EDIVISION is an electronic program guide with its own OSD menu. EDIVISION presents the information provided by the service provider in detailed views. In addition, up to 8 time-controlled recordings (Timer) can be programmed from here. Note that not all channels/program providers provide program-related information.
- Page 11 The following functions and buttons can be used in all modes: The red button displays an overview of the existing channel lists (groups). Use the arrow buttons to navigate through this overview and the OK button to set the channel list to be used by EDIVISION.
-
Page 12: Service
►Menu: Program ► Service ► Installation ► System ► Conditional Access ► Media ► Application ► Game ► Edivision ► Service ► Organizing Services ► Organizing Favourites Organizing Services In this menu you can configure your channel lists for TV or radio channels. Notes: Check the operation mode of the receiver. - Page 13 The green button displays more options. The following options are available: Select all: All channels are selected. Deselect all: All channels are deselected. Select other: All channels, that were not selected previously, are now selected. Select TP: Here, you can select all channels of a transponder. The ‘FIND’...
- Page 14 How to delete a channel: 1. Place the cursor (yellow bar) in the channel list on the channel you wish to delete. 2. Navigate to the right side of the menu using the right arrow button and move the cursor on the ‘Delete’ symbol.
- Page 15 The green button displays more options. The following options are available: Select all: All channels are selected. Deselect all: All channels are deselected. Select other: All channels, that were not selected previously, are now selected. Select TP: Here, you can select all channels of a transponder. While on the left column, you can quickly search for channel names using the‘FIND’...
-
Page 16: Installation
How to rename a favourite list: 1. Press the‘FAV’ button and select the favourite list you wish to rename. 2. Move to the middle column of the menu and navigate the cursor to the ‘Rename’ symbol. The symbol is highlighted in color. 3. - Page 17 DiSEqC: Set the value for DiSEqC here. Regulator: If you use a mechanised control system, specify here its mode. 22KHz: This item is available only if you have not selected the ‘Universal’ value in the ‘LNB Type’ menu. Then you can enable/disable the 22KHz connection mode.
- Page 18 FastScan Satellite Define the scan of TV and radio channels using the preset frequencies of the service providers. Select the type, DiseqC, LCN & press Start Scan. Auto Installation Here you can automatically set the value for DiSEqC. Select DiSEqC 1.0 4port, DiSEqC 1.1 8port or DiSEqC 1.1 16port and press OK.
- Page 19 Satellite Guide This menu item will be helpful when adjusting the satellite installation. Menu functions and settings: Local longitude: Define the value for the longitude of the place where the satellite reception facility Local latitude: Define the value for the latitude of the place where the satellite reception facility is.
-
Page 20: System
button of the RCU, if you set the Scan Mode to Blind Scan. You can input the Symbol Rate by use the numeric button of the RCU. You can select the QAM value among 16QAM, 32QAM, 64QAM, 128QAM and 256QAM. You can turn ON or OFF the NIT Search, if you set the Scan Mode to Manual Scan. -
Page 21: Language
‘USB/HDD Update’ is for the corresponding software file to be located in the USB memory unit. This file with ‘.abs’ file extension can be downloaded from the website ‘www.edision.gr’ through a computer with internet connection: http://www.edision.gr Save the downloaded file to... -
Page 22: A/V Control
A/V Control Display Settings: Options Auto, By Native TV, 720p_50, 720p_60, 1080i_50 or 1080i_60 are available. Display size: Set the aspect ratio for image display (16:9l, 4:3PS, 4:3LB, AUTO). Video Output Type: Choose the colours of the image displayed. Digital audio output: Here you can set the function of the digital Audio output. -
Page 23: Time Settings
- Restarting... Auto update If you select this menu item, the receiver will try to connect with the factory-configured server of EDISION. Provided that the cables are properly setup and the values that correspond to your network in the ‘Network Settings’... -
Page 24: Timer
Date: This item is available only if in the ‘GMT User’ item is set to ‘Off’. Enter the date using the numbered buttons. Time: This item is available only if in the ‘GMT User’ item is set to ‘Off’. Enter the time using the numbered buttons. -
Page 25: Miscellaneous Settings
confirm your selections with ‘Yes’ in the dialog window. Note: You may occasionally receive an error message. This usually happens when you have selected the wrong start time or date. Check your settings! Note: Please note that the recording is performed successfully only when a suitable USB memory device is also connected with the receiver at the scheduled time. -
Page 26: Information
Information Here you are provided with information about the device. This information can be useful when you need to contact the Technical Department of EDIVISION or the point of sale. You are also informed of the receiver’s software version. You can exit the ‘Information’ menu, pressing the EXIT button. - Page 27 ►Media ► Movie ► Music ► Image ► File List / Software ► Disk Management ► Remove USB Device Safely! Movie Music Image File List / Software Key point: This menu displays files and folders on the USB memory device. The detected image files are displayed on the top right as a preview image;...
- Page 28 Use the EXIT button to exit the ‘File List’ menu. If you have created playlists or have made any changes, a dialog box appears, through which you can save playlists on the USB memory device. Recorded files All TV and radio programs recorded on the USB memory device are listed on this menu. Menu functions and settings: Use the up/down arrow buttons to scroll through the list of recordings.
- Page 29 You can format the USB memory device using the yellow button (HDD Formatting). In the ‘HDD Formatting’ menu you can specify which file system (FAT/NTFS) will be used to format the USB memory. Please note that this process deletes all entries from the USB memory device. The blue button brings up a menu for DVR settings (Digital Video Recording).
- Page 30 ►Applications ► YouTube ► RSS Reader ► Weather forecast ► Google Maps ► Ftp ► Web TV ► Web Server ►Games ► Tetris ► Snake ► Othello ►Edivision ► Edivision Electronic program schedule (see pages 10-11) ► More (see pages 10-11) ►...
- Page 31 Version of 16 April 2018...
- Page 32 w w w. e d i s i o n . g r DC 12V/1,5 A LNB IN 13/18V ANT IN ETHERNET S/PDIF HD OUT RS 232 AV OUT IR IN 400mA MAX 4 0 0 m A M A X A N T I N E T H E R N E T S / P D I F...
