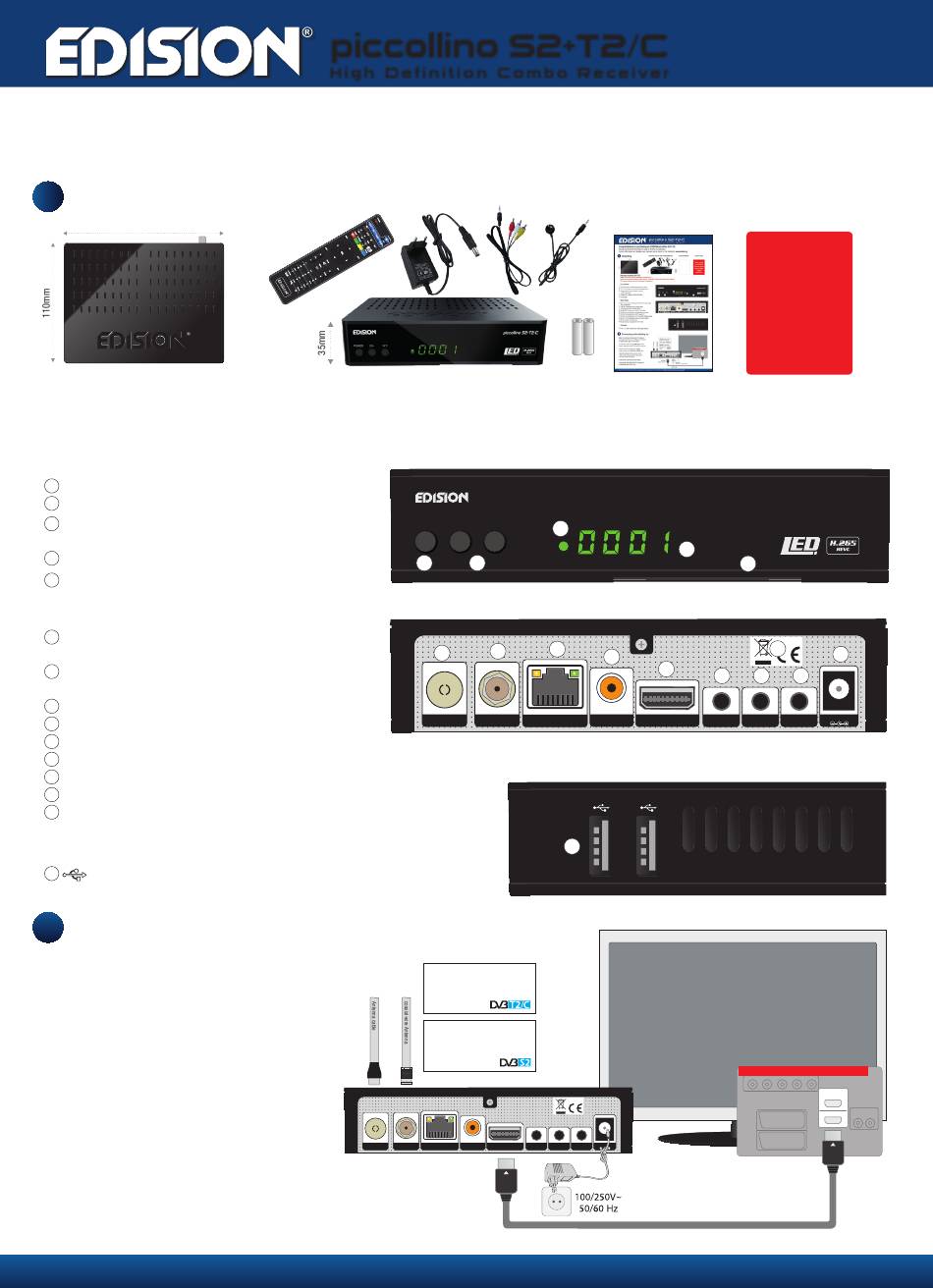

Edision piccollino S2+T2/C Quick Start Manual

Congratulations on purchasing an EDISION piccollino S2+T2/C
Please note that this information is valid at the time of publication.
Current information and detailed user manuals can be found on the Internet at: www.edision.gr
1
Unpacking
146mm
Receiver piccollino S2+T2/C
Notes: The front is factory fitted with a protective foil
which can be removed easily and with caution. (Protective foil only for devices with display)
The scope of delivery may also include parts not listed here
Front Panel
1 POWER button: Activates/Deactivates the device
2 CH- / CH+ buttons: for moving in the program lists
3 Infrared sensor for the reception of remote
control commands
4 Display LED, displays current information
5 Card reader
Back Panel
6 ANT IN: Input for connecting to terrestrial or cable signal
from the antenna
7 LNB IN: Connection for the coaxial cable
to the signal from the satellite system
8 ETHERNET: Ethernet port RJ45 10/100 Mbps
9 S/PDIF: Audio interface for amplifier/audio console
10 HD OUT: Connection to an HDTV quality TV
11 RS 232: For connecting to a PC, for receiver software update.
12 AV OUT: For broadcasting video and sound signals
13 IR IN: Infrared connection port
14 Connection for an adapter (DC 12V/1,5A)
Subpage
15
/ 2 x USB: Connection for USB storage devices
2
Connecting and switching on
Note: For interference-free satellite TV reception,
a specialist technician must calibrate your satellite
TV system with a digital TV level meter
• Connect the receiver using HDMI cable via the
HD OUT output port to your TV's HD OUT input port
• Now connect the receiver to the satellite
antenna cable via the ANT IN or LNB IN input.
• Insert the batteries into the remote control.
Notes on the remote control can be found on
the back of these instructions.
• Connect the receiver to the power supply.
• The receiver starts with the BOOT process and
is operational within a short time
The CE certificate of the product is available on our webpage, by visiting this link: https://www.edision.gr/en/support
piccollino S2+T2/C
H i g h D e f i n i t i o n C o m b o R e c e i v e r
Remote control with 2 AAA batteries
POWER CH- CH+
1 2
7
6
LNB IN 13/18V
ANT IN
400mA MAX
ANT IN: coaxial-wire
input from terrestrial /
cable signal
LNB IN: Connecting
the cable to the satellite
signal
LNB IN 13/18V
ANT IN ETHERNET S/PDIF HD OUT
400mA MAX
HD OUT:
HDMI
kabel
Output receiver
Documentation
3
4
8
9
10
ETHERNET S/PDIF HD OUT
15
DC 12V/1,5 A
RS 232 AV OUT IR IN
Power socket
HDMI cable
Service note
Please contact
your EDISION
specialist dealer
for any further
support
and service.
