INSTALLATION NOTES
The use of a thread locker is recommended on all screws to prevent loosening due to vibration. This enclosure will not work with some
aftermarket headers, confirm fit before beginning installation. Begin by unlatching the seats from the vehicle; remove the center hump using
the panel removal tool on the 5 plastic panel clips and the T-30 Torx for the top 2 bolts. Remove the rear panel that sits behind the seats
using a T-30 to remove the 7 Torx bolts, and a panel removal tool to remove the 4 plastic panel clips. Once the panel is loosened, unplug the
computer harness then "push" the panel down behind the seat belt retractors, after it is free from behind the top panel; pull up and away from
the vehicle. Once the panel is out, remove the 2 seat belt bolts that hold the center seat belt receivers.

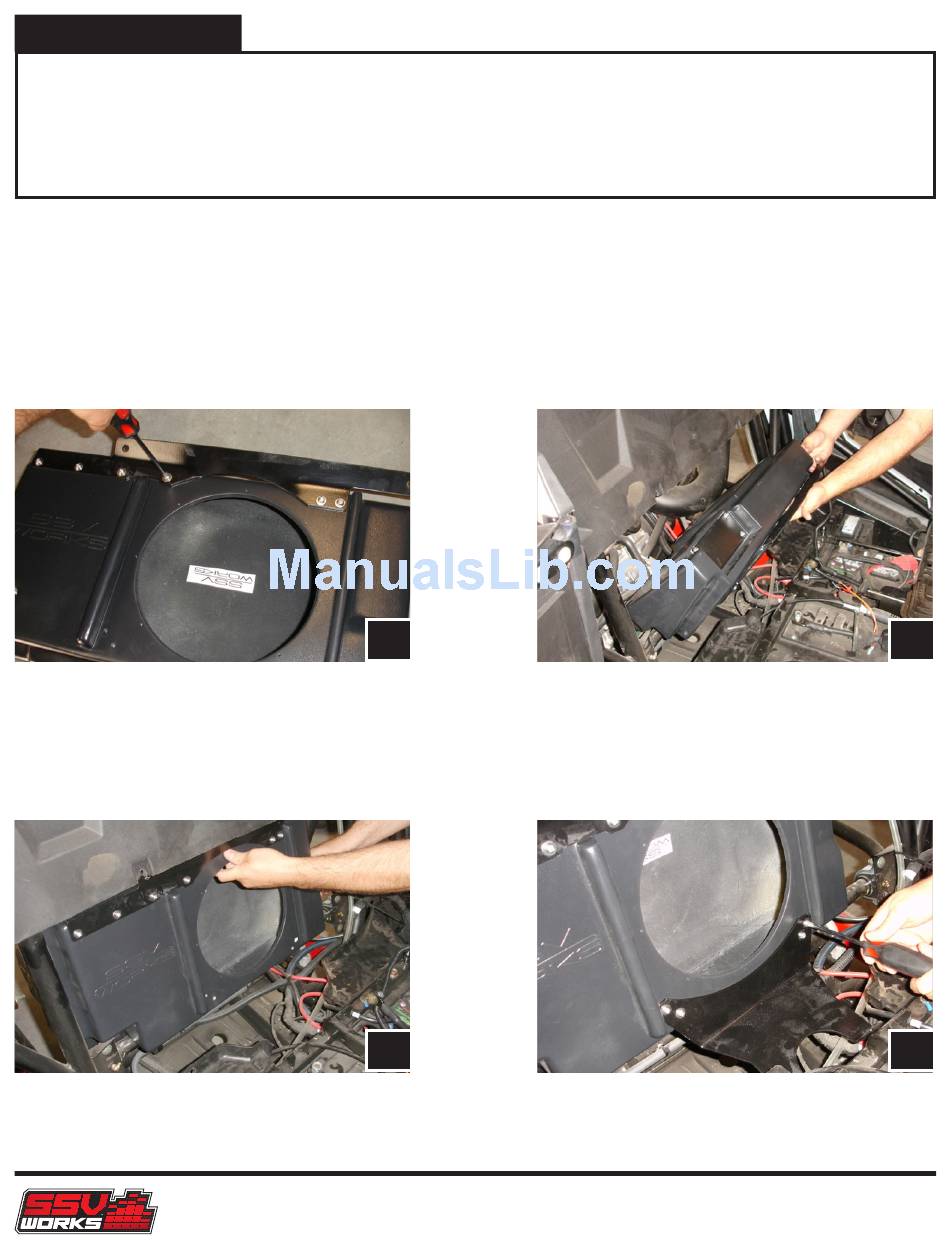

A. Loosely install the top mounting bracket onto the enclosure
C. The 2 holes in the top bracket will line up with the 2 holes in
the vehicle crossbar behind the plastic panel, the enclosure
can shift left or right to align these holes
RZ3-BSSB10
A
B. Place the enclosure in the vehicle bottom first and rotate
the top into place. The top bracket is in the proper location
when it is behind the plastic top panel (NOTE: For proper fit on
2016+ models you may need to reverse the nut/bolt on the
rear crossbar, the bolt head should face downward and the
nut should be on the top of the bar)
C
D. Once the enclosure is in position, loosely install the lower
bracket
B
D
