SSV Works RZ3-FKP65 Installation Manual page 3

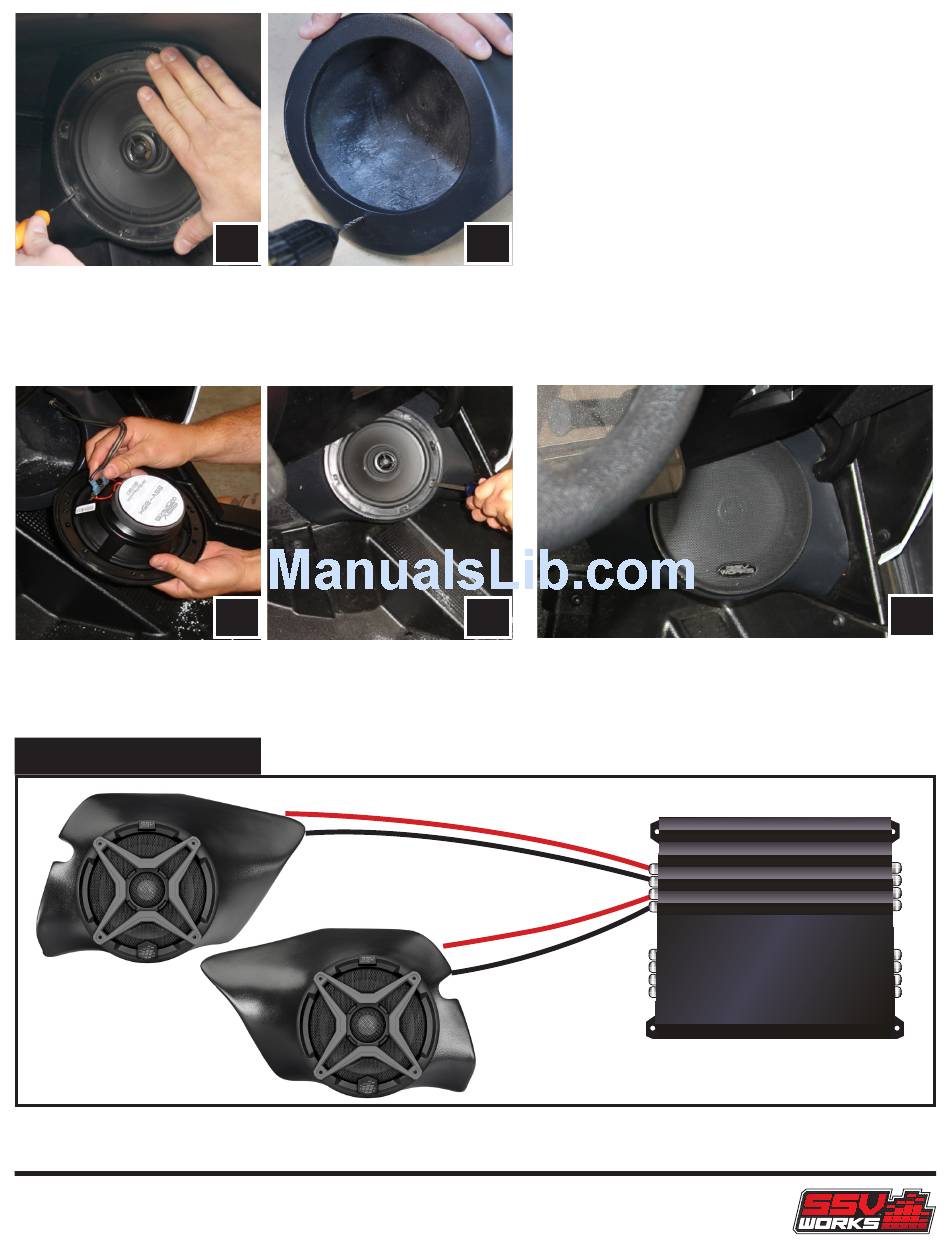

G. Place the speaker into the enclosure and mark the 4 mounting holes with a
scribe or marker, pre-drill these locations with the 1/8" drill bit
H. Connect and install the speaker into the enclosure (be sure to connect the "+"
speaker wire to the "+" terminal on the speaker and the "-" speaker wire to the "-"
terminal on the speaker) using the #2 Phillips screwdriver, repeat for other side
WIRING INSTRUCTIONS
For proper sound, ensure the speaker polarity is correct connect the "+" to the "+" and the "-"to the "-"from the speaker wire to the amplifier. If using with
an SSV Works complete system refer to the amplifier wiring instructions for more detailed wiring information.
© Copyright 2016 SSV Works, Oxnard, CA 93030
G
H
"+"
"-"
RZ3-FKP65 Rev. B 4-10-17
G
H
H. Route the speaker wire away from any moving parts and any
sharp metal, then connect to the amplifier
"+"
"-"
"+"
"+"
"-"
"-"
RZ3-FKP65
I
Amplifier
