SSV Works RZ3-FKP65 Installation Manual page 2

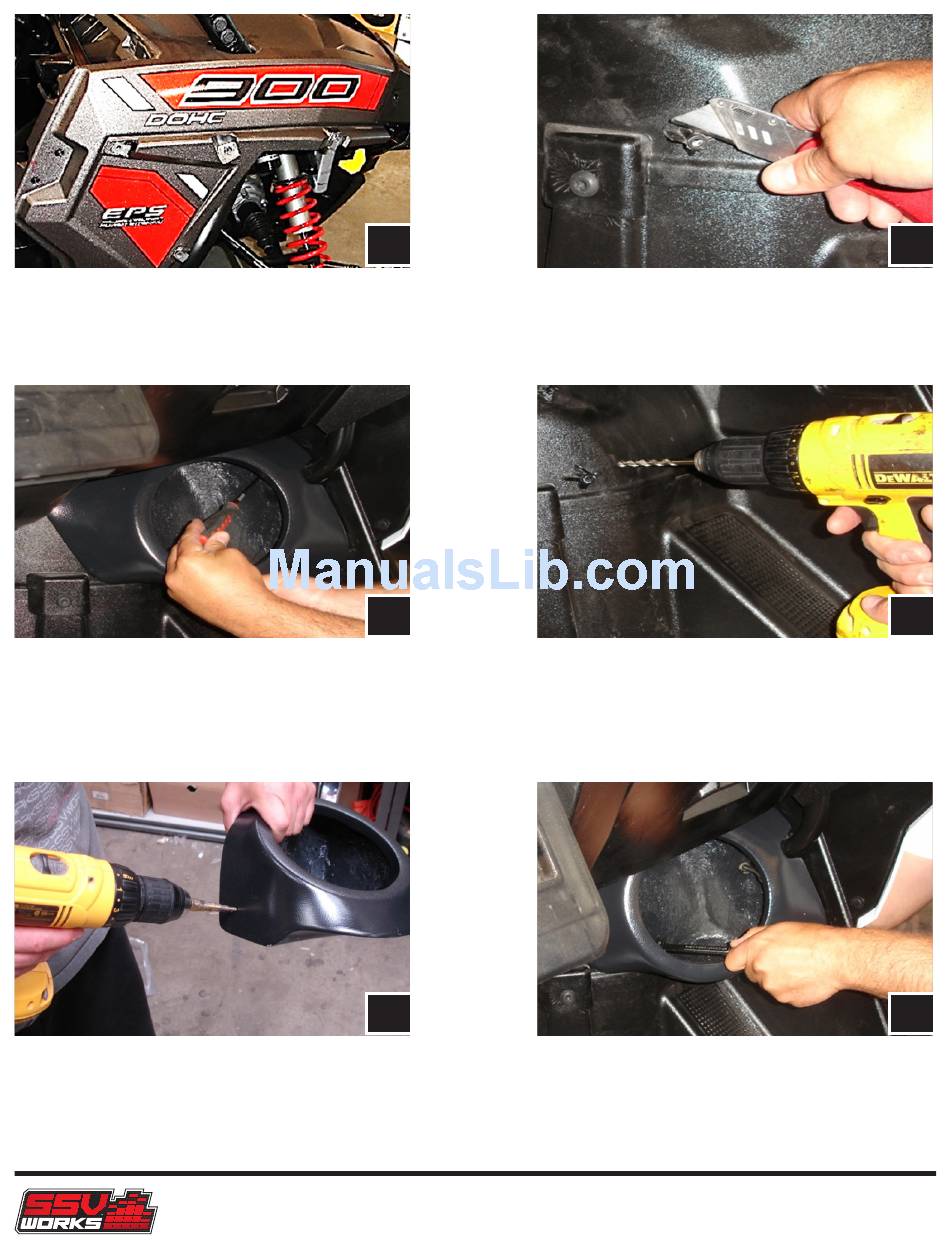

A. Remove the ten T40 Torx bolts that secure the 2 piece fender.
Note: there is one screw inside the fender well. Remove the
two additional screws from the striker plate, slide fender up
the cage rail and secure
C. Align the kick panel against the firewall and side of the vehicle
(under the glove box on the passenger side & mid way up the
firewall on the driver side), the pod is in the correct location
when it sits flush against the fire wall and side walls. Using the
scribe, mark the 3 mounting holes
E. Drill a hole in each kick panel for the speaker wire to exit
(seal this hole with silicone sealer for increased sound and
weatherproofing). The hole can be on the top, or the side of the
enclosure, if the side is chosen, the side wall of the vehicle will
need to be drilled for the speaker wire to exit the interior
RZ3-FKP65
A
B. Using the utility knife or another cutting tool cut off the two
plastic factory nubs in the foot well, cut these as smooth as
you can to the panel
C
D. After marking the holes, drill the 3 mounting locations on
each side using the ¼" drill bit
E
F. Once the mounting holes and the speaker wire hole have
been drilled mount the kick panel in the vehicle, installing
the Allen bolt with the the nut on the inside of the enclosure is
recommended
B
D
F
