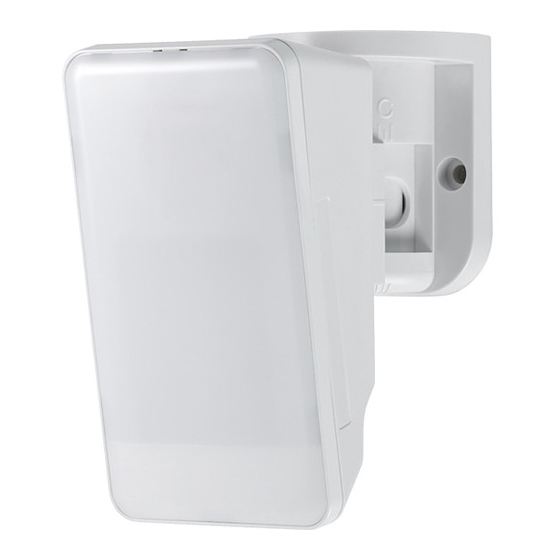

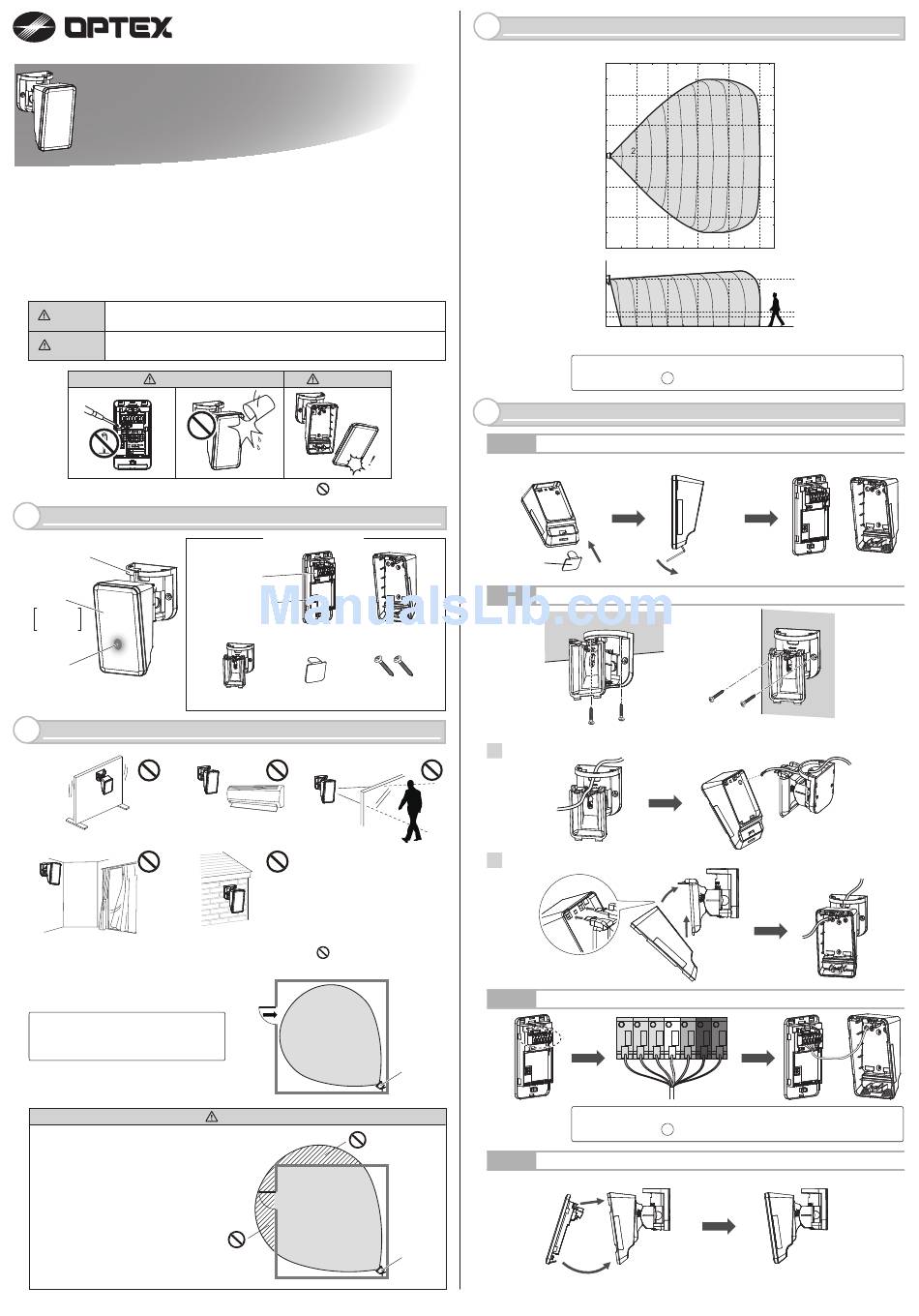

Optex URX-P01WH Installation Instructions And Operators Manual

ULTRA WIDE BAND IMPULSE RADAR TECHNOLOGY
ULTRA WIDE BAND IMPULSE RADAR TECHNOLOGY
TIME-OF-FLIGHT INDOOR DETECTOR TIME-OF-FLIGHT INDOOR DETECTOR
URX-P01
URX-P01
URX-P01WH : WHITE LENS MODEL
URX-P01BL : BLACK LENS MODEL
Features
• Ultra Wide Band technology detector using 9 Ghz frequency band.
• Low false alarm risk by installed temperature fluctuations.
• Easy range selector up to 10 m/ 33 ft detection range
• Bracket included for easy angle setting.
• Self-Check function (Output when failure conditions)
Failure to follow the instructions provided with this indication and
Warning
improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication and
Caution
improper handling may cause injury and/or property damage.
Warning
1
PARTS IDENTIFICATION
Wall/Ceiling
Bracket
Lens
Do not
remove!
LED
2
INSTALLATION HINTS
Basic installation

Install at a place detection area
is directed to the route of intrusion.
Note>>
Adjust detection range if the site is
smaller than 10 m x 10 m (33 ft x 33 ft).
If detection area is set too wide,
it may detect movements outside
of the target area, which may
cause false alarms.
Adjust the detection area
according to target area.
INSTALLATION INSTRUCTIONS
Caution
The nix sign indicates prohibition.
Included in the box
Terminals
Range selector
rotary switch
[Main unit] [Back case]
[Screws x2]
[Bracket] [Cover key]
The nix sign indicates prohibition.
Doorway
Intrusion
route
Caution
No. 59-2412-0
3
DETECTION AREA
TOP VIEW

SIDE VIEW

4
INSTALLATION
STEP 1
Separate the main unit and the back case.
* When taking out of a box.
Cover Key
STEP 2
Assemble the back case and the bracket.
4 x 30L
Ø
1
Wire the cable.
2 Assemble with the back case.
STEP 3 Wire to the terminals.
URX-P01
STEP 4 Assemble the main unit and the back case.
1. Hook the top.
URX-P01
2. Groove the bottom
- 1 -
0 10 20
5 m
1 3 4 5 6 7 8
0
5 m
0 m
1.8 m
2.4 m
3.0 m
0 5 m
(16.4 ft)
Note>>
Please refer to " 6 SETTINGS" for range adjustment.
[Ceiling installation]
2.
1.
Note>>
Please refer to " 8 TERMINALS" for details.
30 35 ft
15 ft
10
9 10
0
10
15 ft
10 m
0 ft
6 ft
8 ft
10 ft
10 m
(32.8 ft)
[Main unit] [Back case]
[Wall installation]
