Connector Dimensions

Below are several recommendations for integrating the Saleae devices into new designs.
1) Add 4x2 male headers to your PCB and use the Saleae accessory cable "Logic-to-2x4 Header (Gen
2)" to connect any of the current Saleae logic analyzers to your circuit.
here.
The Gen 2 accessories are compatible with these devices:
•
Logic 4
•
Logic 8
•
Logic Pro 8
•
Logic Pro 16
The Gen 1 accessories are compatible with these devices:
•
original Logic (discontinued)
•
original Logic16 (discontinued)

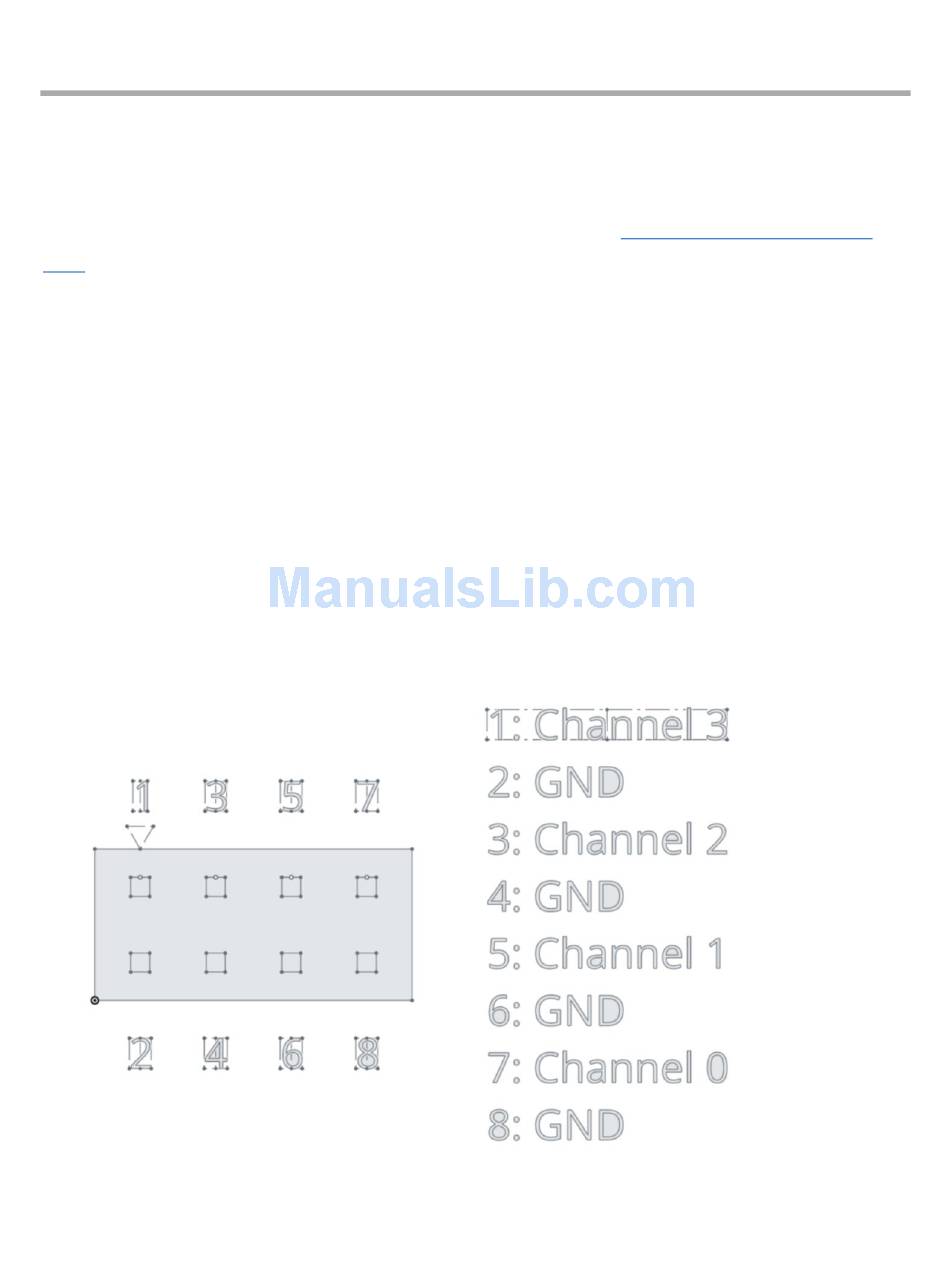

When using the Gen 2 Logic-to-2x4 header adapters, please use this pin out on your board (top view):
Accessories can be purchased
