Additional Data Export Notes

Some export formats have different options when exporting a mix of digital and analog channels or
exporting only analog channels. Not all export options are available in some cases.
CSV can be used to export digital channels, analog channels, or a mix of digital and analog channels.
Different options are available for each of these cases, and the format varies slightly. For instance, when
exporting just digital channels with CSV and in one row per change mode, there will only be one set of
timestamps in the file. When exporting digital and analog data, one row per change mode is the only
format for the digital component, but timestamps are created for each channel individually instead of
being shared between all digital channels. This special "mixed mode" export feature is not available
unless at least one analog channel is present in the export. The only way to accomplish this for digital-
only exports is to export each channel, one at a time, to separate files.
Binary export can be used for digital exports and analog exports, but it cannot be used to export a mix of
analog and digital channels in the same file.
VCD only supports digital channels.
Matlab supports exporting digital channels, analog channels, and a mix of analog and digital channels.

Exporting Analyzer Results

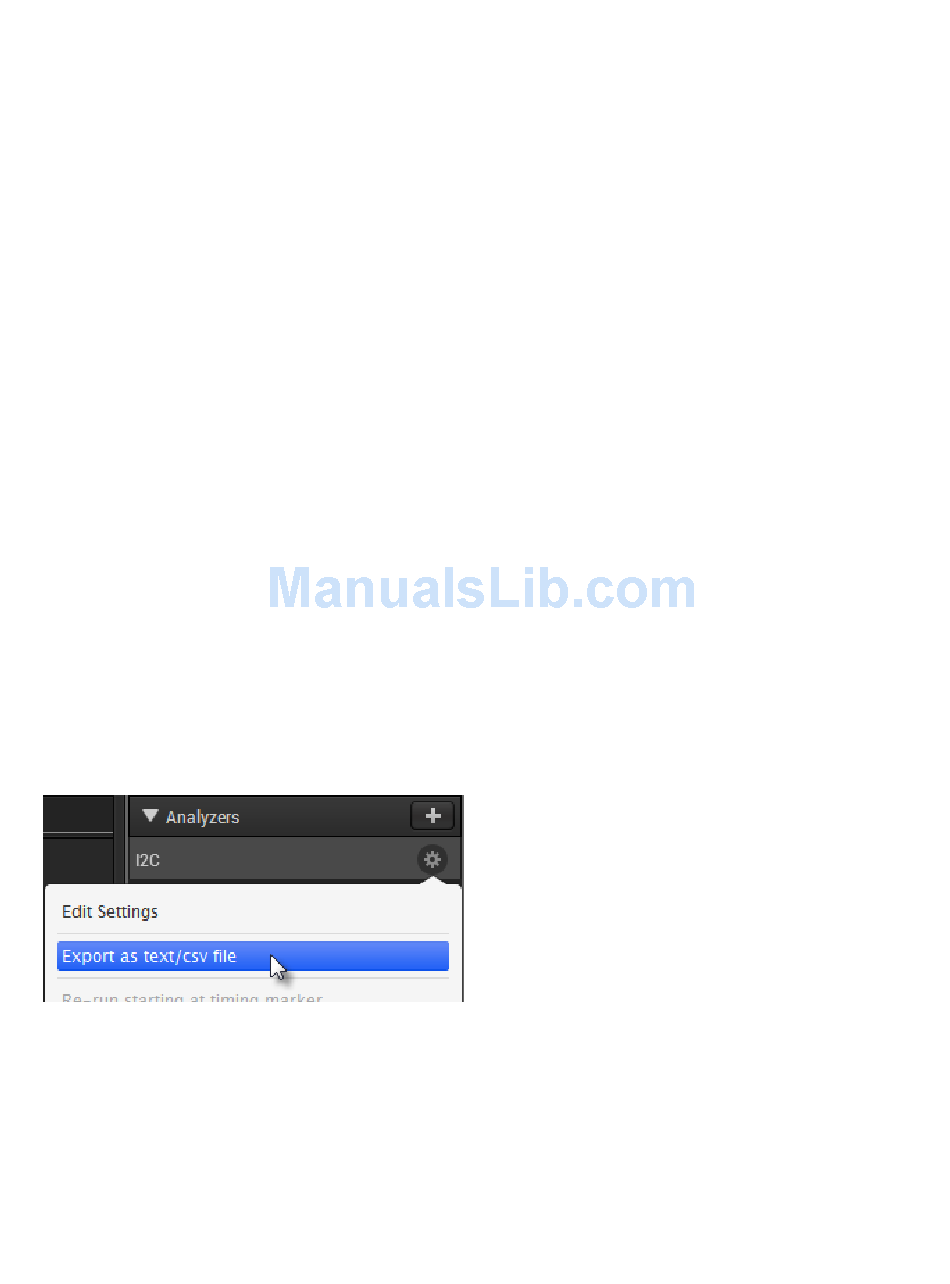

To export the results of a particular protocol analyzer, click the gear button on that analyzer and select
Export as text/csv file.
To export more than one protocol analyzer or only results that match your search, click the gear button on
the Decoded Protocols panel and select Export search results.
