Changing The Global Radix - Saleae Logic User Manual

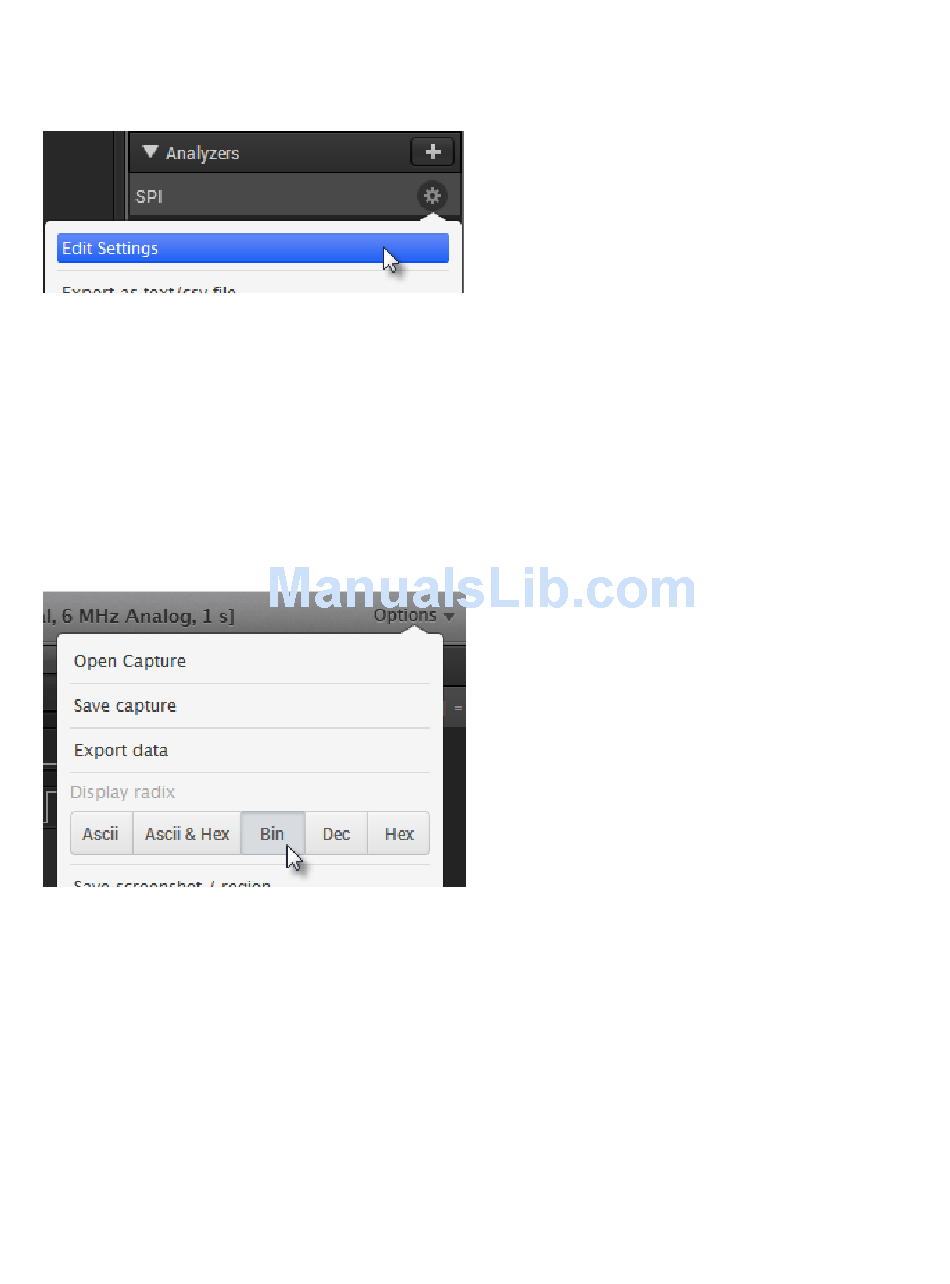

To edit the settings for an existing analyzer, find that analyzer in the Analyzers panel on the right of the
software. Click the gear button and select Edit Settings.
After editing your analyzer settings, the analyzer will rerun against any data you have collected and will
update all results.
Changing the Global Radix (Hex, Decimal, etc)
By default, all protocol analyzers will use the global radix settings.
To change the global radix, click the Options button at the top right of the software and then click the
desired radix: Ascii, Ascii & Hex, Binary, Decimal, or Hexadecimal.
You can also use the keyboard shortcuts CTRL-A, CTRL-B, CTRL-D, or CTRL-H for Ascii, Binary,
Decimal, or Hexadecimal, respectively.
Changing Analyzer-Specific Radix (Hex, Decimal, etc.)
Sometimes you need to specify a different radix for different analyzers. To do that, locate the analyzer
you would like to change in the Analyzers panel on the right of the software. Click the gear button and
select the desired radix button.
