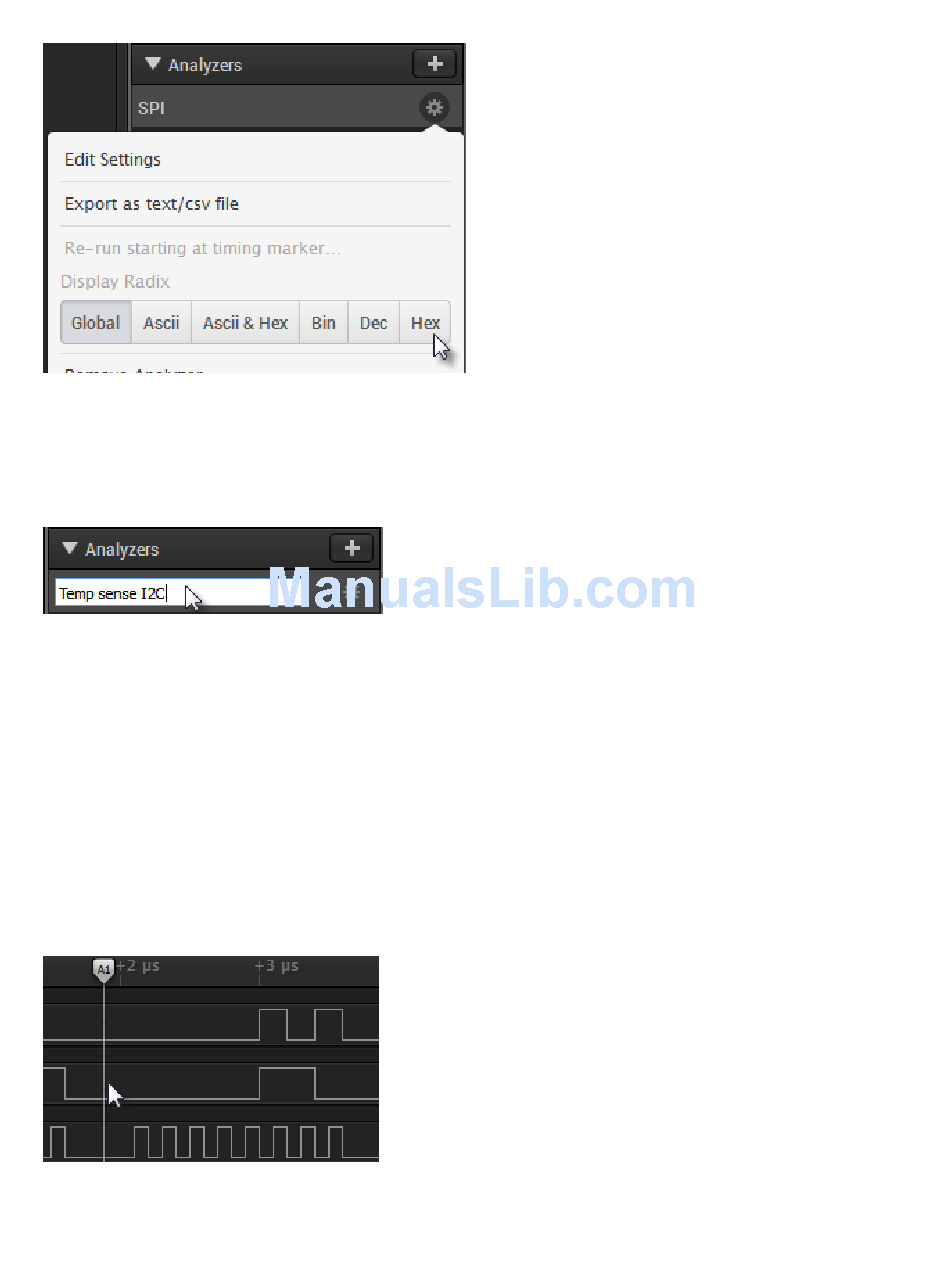

Edit the Analyzer Name

If you like, you can edit the name of the analyzer to help keep track of what it is connected to. On the
desired analyzer, click on the text to rename.

Starting an Analyzer at a Specific Point in the Software

Sometimes it is desirable to start the analyzer only at a specified location in your data. A common use for
this is if you are using SPI without an enable line. A transition on the enable line is normally required to
synchronize the analyzer and allow it to start decoding.
When using SPI with no enable line (and in other desired instances), it is possible that the capture will
start in the middle of a byte transition, and it will not have a means to properly find the beginning of a
byte. In this case, you can manually set the starting location by first setting the A1 timing marker at the
desired starting location.
Then click the Analyzer's gear button and select Re-run starting at the timing marker.
