3. Options Button Opens system-wide settings for the Logic software, which allows you to save
captures, export data, and modify various settings for the Logic software.

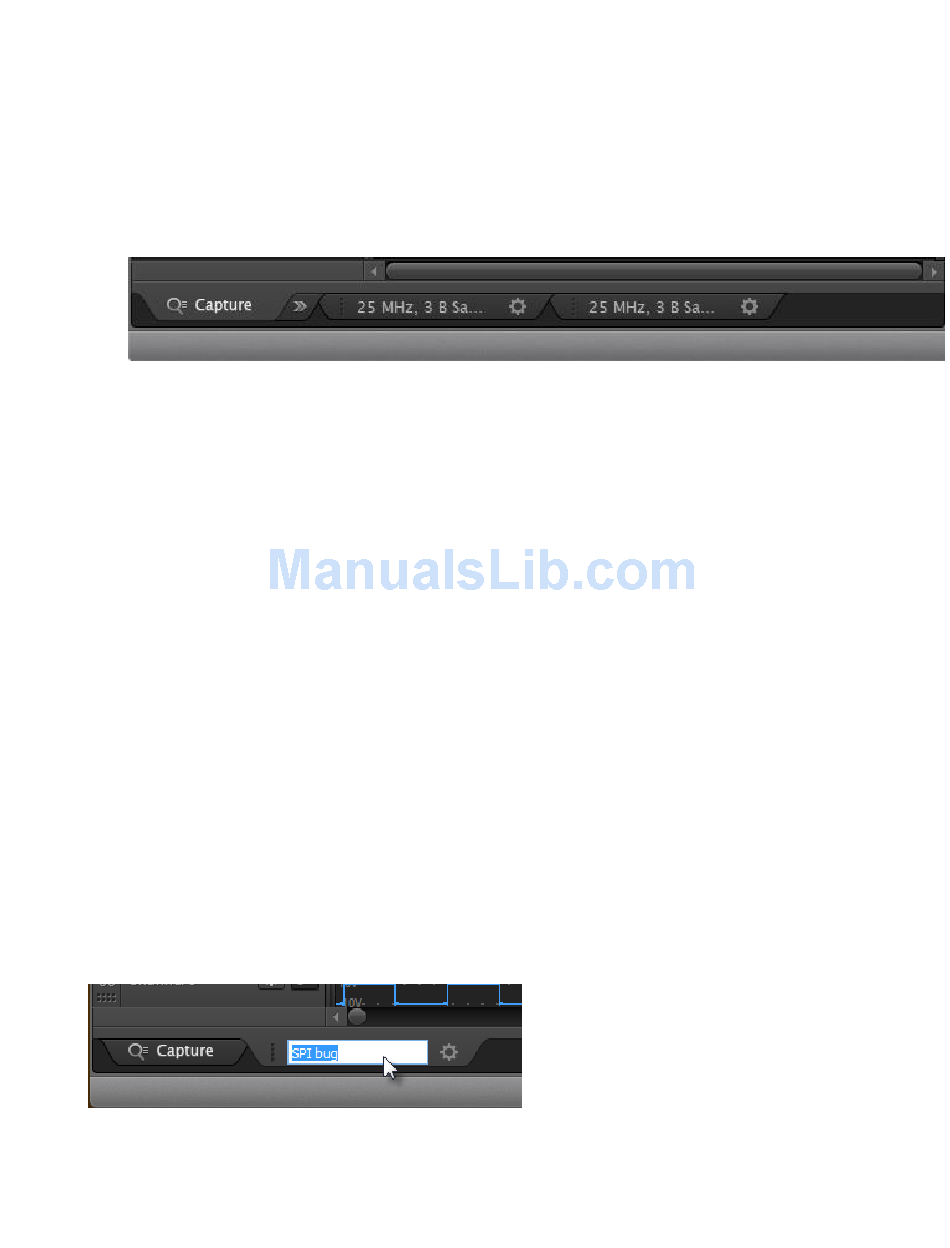

4. Capture tab You can save previous captures so you can refer to it later. The example image below
shows 3 tabs (the current capture tab on the left, and 2 previously saved capture
tabs).
o
The Capture tab is your current capture.
o
The >> button allows you to save the current capture into a new tab.
o
The gear icon on the previously saved capture tabs allow you to close or copy the tab.
5. Enabled Channels Currently enabled channels are shown here. Use the Device Settings button to
enable and disable channels (See #2). If a channel is enabled but cannot be seen, it may be hidden.
Click the gear icon on any of the channels and click Reset All Channels to reset all channel settings
and bring them all back into view.
6. Software Version and Logic connection status
o
If status is [Disconnected], the green button will display Start Simulation
o
If status is [Connected], the green button will display Start
7. Annotations, Analyzers, and Decoded Protocols
o
The Annotations window lets you add bookmarks, timing markers, and various measurements
to your capture.
o
The Analyzers window lets you add one of our many protocol analyzers to your digital
channels. The + icon will only be clickable if there are digital channels enabled.
o
The Decoded Protocols window shows the decoded results of the protocol analyzers once the
capture is complete and the data has been processed.

Renaming Tabs

To edit the text shown on a tab, click the text.
