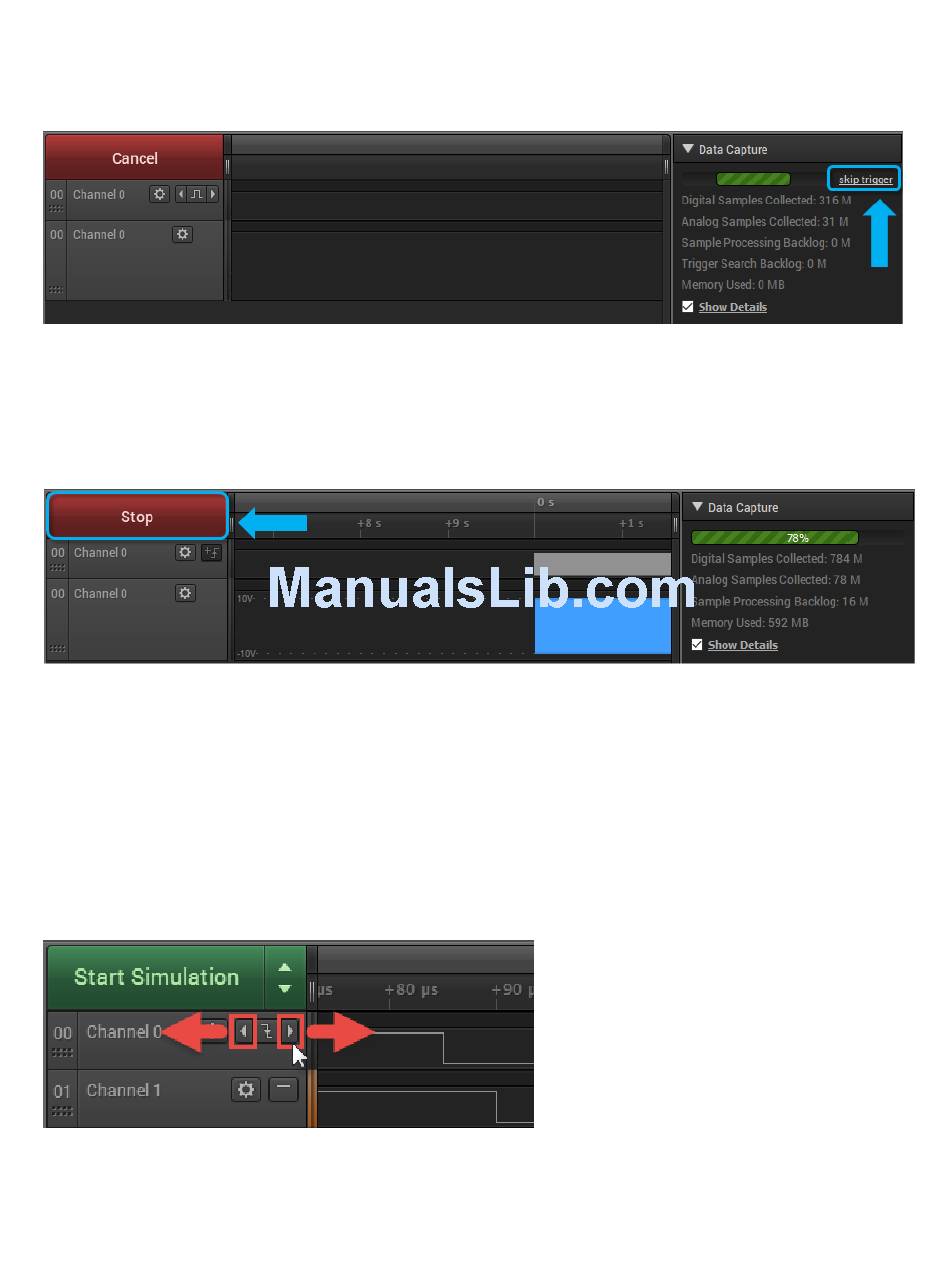

You can skip the trigger by clicking "skip trigger" if you would like to force the capture to begin without the
trigger condition being met.

Stopping the Capture

If the trigger condition is identified, data collection will start. You can stop the capture at any point in time
by clicking "Stop". This will stop the recording and will keep any data that has already been
recorded.

Searching with a Trigger

After data have been collected, you can search for events within the data using the trigger. The trigger
can be added or modified after data have been collected.
After the trigger has been set up (see above) and data have been collected, left and right arrows will
appear next to the trigger button on the channel used for the edge or pulse width condition. Click these
arrows to advance to sections of the data that satisfy the trigger condition.

Turning Off the Trigger

To remove the trigger, deselect the trigger type button, or use the reset button.
