Connecting the Logic Hardware

Connecting Logic to the PC

1. Open the Logic software
2. Connect one end of the included USB cable to the Logic analyzer
3. Connect the other end of the USB cable to the PC's USB port. Ensure that the proper USB port is
used for the specific device. Due to the amount of bandwidth required, it is recommended to directly
connect to the PC's USB port rather than through a docking station or a USB hub.
o
Original Logic, Logic16, Logic 4, and Logic 8 requires at least a USB 2.0 port.
o
Logic Pro 8 and Logic Pro 16 requires at least a USB 3.0 port. If connecting these
products to a USB 2.0 port, please see:
16 on USB 2.0 Ports

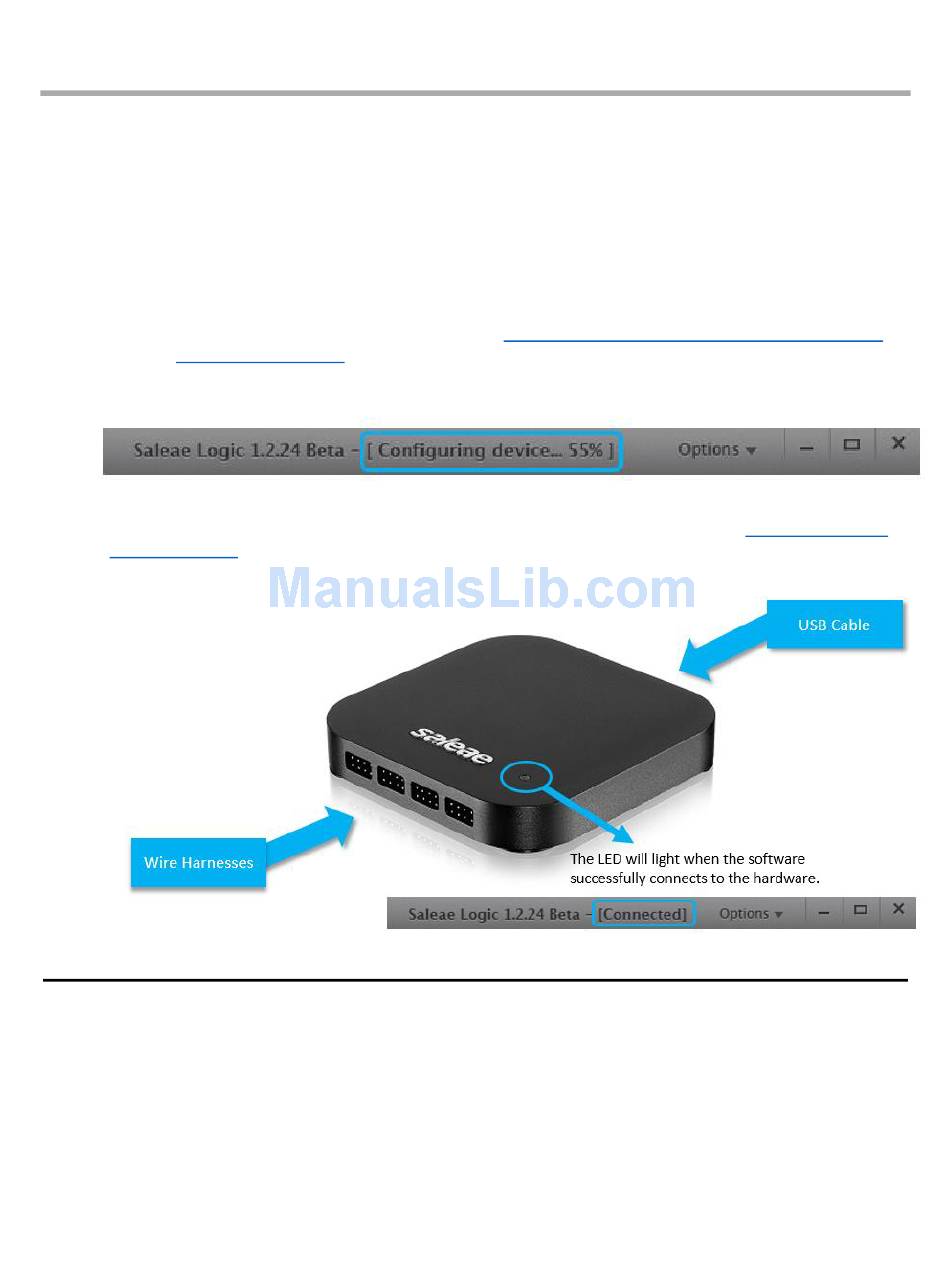

4. Once connected to the PC, the software will begin configuring the
device.
5. Once the Device is fully configured and connected, the software will display [Connected] at the
top and the LED on Logic should turn on (assuming the LED is set to on. See
Device Settings
settings.
to check LED
Limitations of Using Logic Pro 8 and Logic Pro
