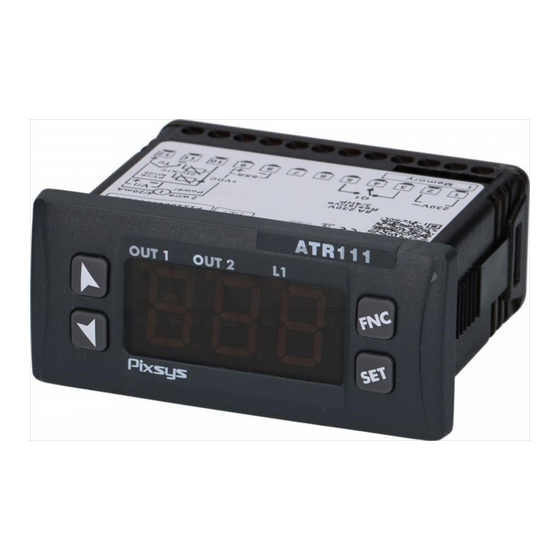

  • Page 1 CONTROLLER ATR111 User Manual...
  • Page 2 ORDERING CODES Ordering codes model ATR111 ATR111- Power supply AD 12…24Vac ± 10% 50/60Hz 12…35Vdc 230 Vac ± 10% 50/60 Hz TECHNICAL DATA Main features Displays 3 digits (0,56 inches) + 1 Leds (Out1) Operating temperature 0-40° C - humidity 35..95uR% Sealing Front panel IP65 (with gasket) / Box IP30 / Terminal blocks IP20 Material ABS UL94V2 self- exstinguish...
  • Page 3 WIRING DIAGRAM ATR111 PIXSYS PIXSYS PIXSYS PIXSYS PIXSYS PIXSYS PIXSYS PIXSYS ATR111- AD ATR111- AD ATR111- B ATR111- B ATR111- B ATR111- B ATR111- AD ATR111- AD 2 wire 4 /20 m A 2 wir e 4 /20 mA Po we r...
