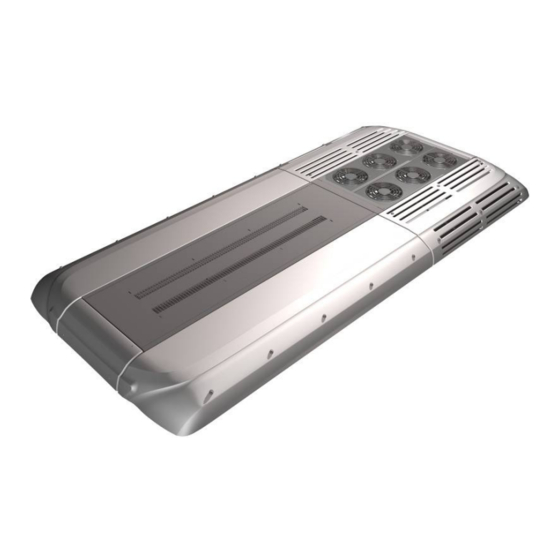

Operating instructions

for KONVEKTA
air conditioning units
StreamLine
SL700–SL800–SL850–SL900
with control KS600-CAN
R134a
24 Volt DC
ID#: BBA-KL7S012AB
Version: A02
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
✆
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 - 200
Info@konvekta.com
www.konvekta.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreamLine SL700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KONVEKTA StreamLine SL700

Summary of Contents for KONVEKTA StreamLine SL700

  • Page 1: Operating Instructions

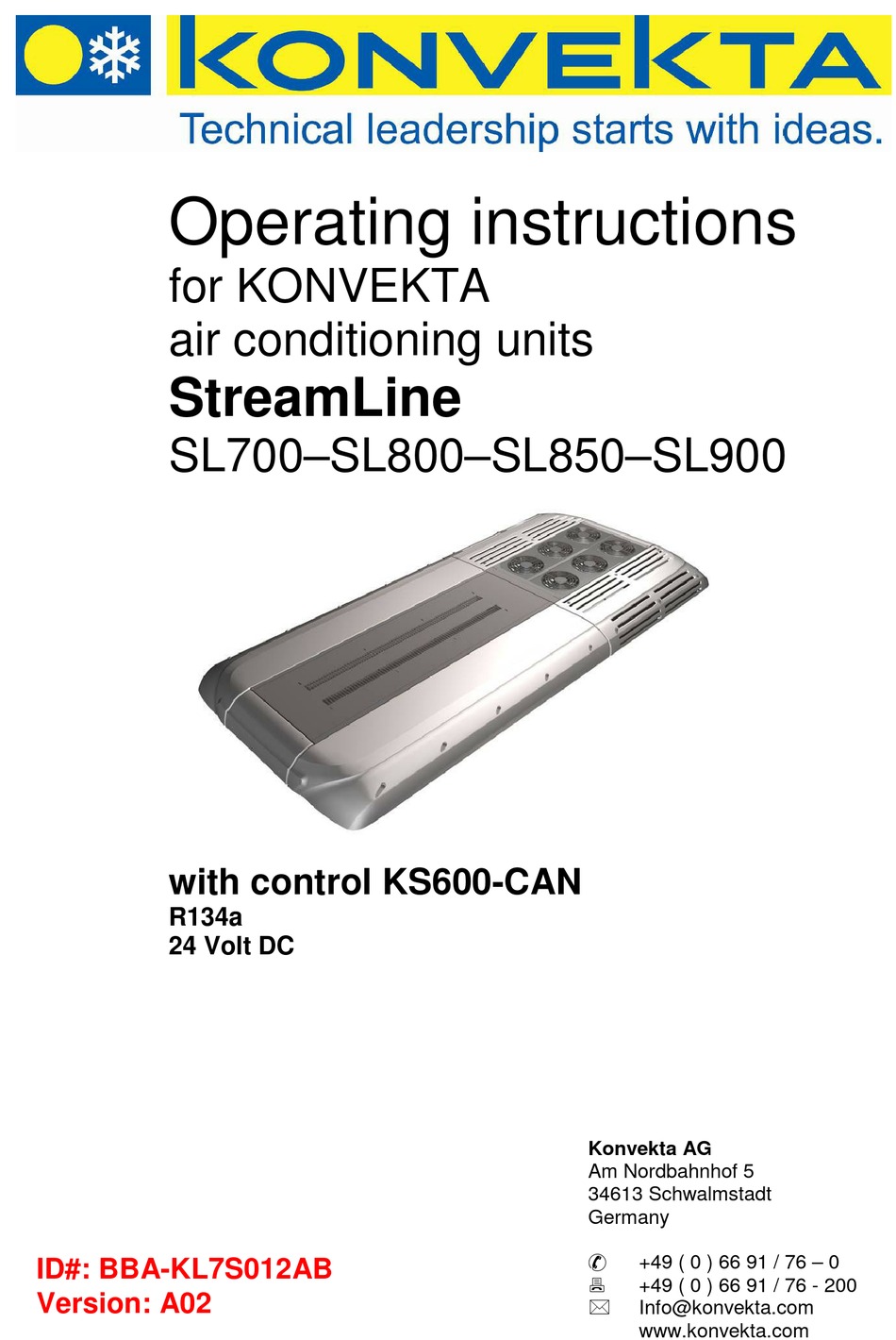

    Operating instructions for KONVEKTA air conditioning units StreamLine SL700–SL800–SL850–SL900 with control KS600-CAN R134a 24 Volt DC Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany ✆ +49 ( 0 ) 66 91 / 76 – 0 ID#: BBA-KL7S012AB +49 ( 0 ) 66 91 / 76 - 200 Version: A02 Info@konvekta.com...

  • Page 2: Table Of Contents

    Contents Page: • Introduction ..........................3 • Information on the operating instructions ................4 Technical data ........................5 1.1. Compressor type KVX ....................... 5 Intended Use ........................5 2.1. Generally information for a/c unit ..................6 2.2. Operating Conditions ......................6 Operation ..........................

  • Page 3: Introduction

    KONVEKTA or its distributors in case other than original KONVEKTA spare parts or parts bought from KONVEKTA AG have been used for maintenance and repair. These operating instructions contain all necessary information to operate your air conditioning unit.

  • Page 4: Information On The Operating Instructions

    In the course of further developments we reserve the right to technical modifications without no- tice. Guarantee and liability conditions of KONVEKTA AG’s general business conditions are not enlarged by the above notes. Indications and photos should neither be copied and circulated nor used for competitor’s purpos- es.

  • Page 5: Technical Data

    2. Intended Use The KONVEKTA air conditioner represents an air conditioning system that works with the ozone friendly refrigerant R 134a and which creates a pleasant and individually adjustable room temper- ature by means of forced convection. The determined use includes also the observance of the Operating instruction and the proof of regular inspections as well.

  • Page 6: Generally Information For A/C Unit

    The air conditioning unit may be taken into operation again only after it has been checked at a KONVEKTA Service Station. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location.

  • Page 7: Operation Panel / Function Of The Keys

    3.1. Operation panel / function of the keys Rotary knob K1 Rotary knob Functional description Turn When the ignition is ON, the air distribution flap can be adjusted by turning the knob. Rights DEFROST setting for the window only when alter- nator ON Rotary knob K2 Rotary knob...
  • Page 8 Key S3 Keypress Functional description Short press Turns ECO (AUTO without compressor) ON and OFF. Long press Double-click Key combination Key S4 Keypress Functional description Short press Turns Automatic ON and OFF. Long press Can be switched between AUTO / HEAT / COOL. Double-click Key combination You get into the service modus.
  • Page 9 Key S8 Keypress Functional description Short press Reducing the room set temperature for the passenger compartment. After reaching the minimum Temperature 6 x press key >> MAX COOL. Long press Double-click Key combination The temperature is set between 12 ° and 28 ° . The main display of the display is the room set temperature.

  • Page 10: Special Functions Of The Ks600

    3.2. Special functions of the KS600 With these buttons, special functions are activated: Activate SMOG: Switch from the cockpit and cabin air recirculation flap for example 10min to recirculation. = SMOG Switch over Function MODE: Switch from Function Mode = AUTO - HEAT - COOL - AUTO button on the double.

  • Page 11: Maintenance / Service

    4. Maintenance / Service Please arrange regular dates for maintenance works and services with a KONVEKTA service WP07050618. station, as indicated in maintenance schedule bus no On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location.

  • Page 12: Warranty Conditions

    5. Warranty Conditions The current „General Warranty Conditions” KONVEKTA AG“ will apply. A copy will be furnished by the warranty department. Please contact gwl@konvekta.com. 6. Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste manage- ment.
