Operating instructions
for KONVEKTA air conditioning units
StreamLine
SL700 – SL800 – SL850 – SL900
with control system KS55-Basic
R134a
24 Volt DC
ID#: BBAKL8S042AA
Version: A04
Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
✆
+49 ( 0 ) 66 91 / 76 – 0
+49 ( 0 ) 66 91 / 76 - 200
Info@konvekta.com
www.konvekta.com
Advertisement
Table of Contents
Related Manuals for KONVEKTA StreamLine SL700
Summary of Contents for KONVEKTA StreamLine SL700
-
Page 1: Operating Instructions

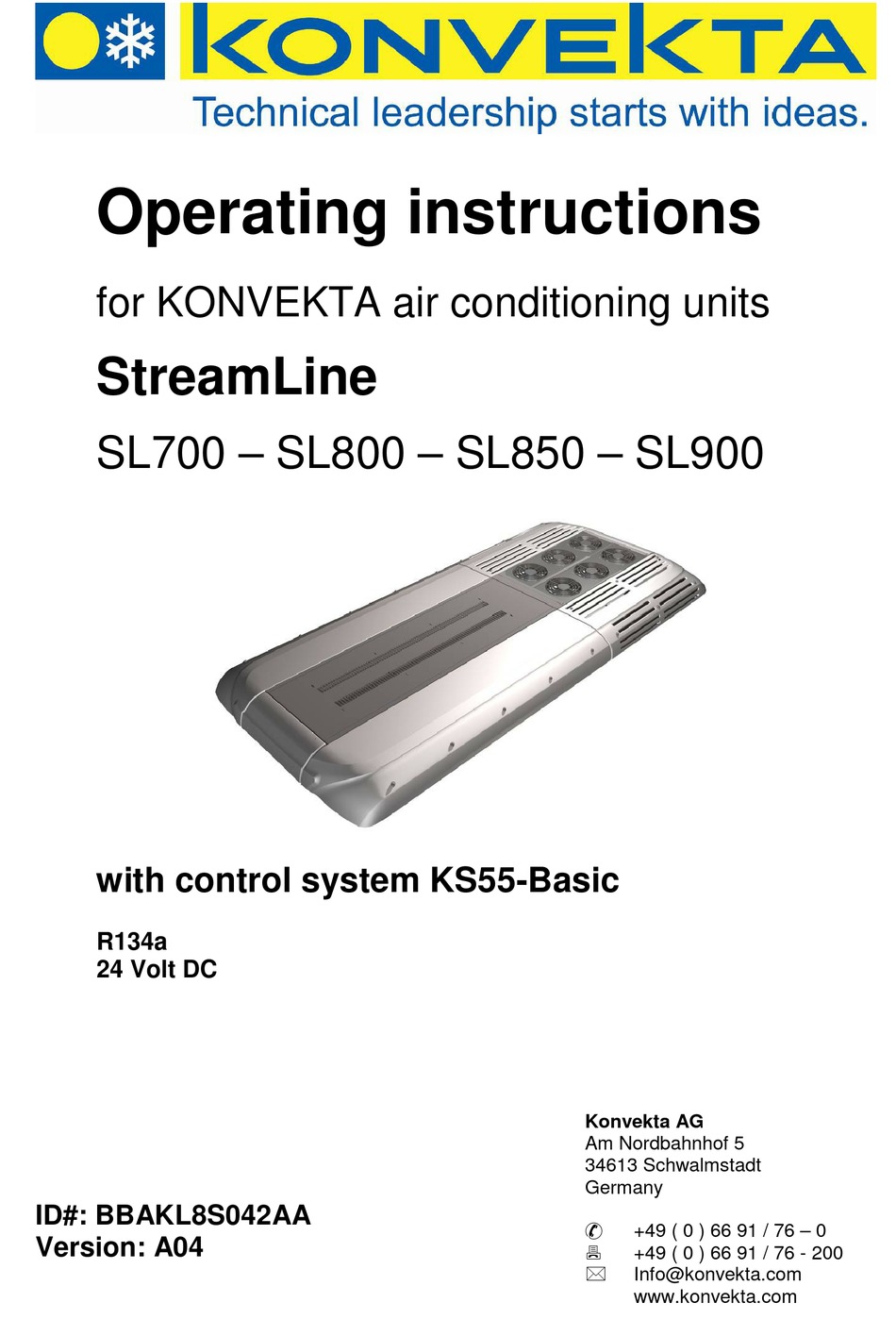

Operating instructions for KONVEKTA air conditioning units StreamLine SL700 – SL800 – SL850 – SL900 with control system KS55-Basic R134a 24 Volt DC Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt Germany ID#: BBAKL8S042AA ✆ +49 ( 0 ) 66 91 / 76 – 0... -
Page 2: Table Of Contents
Contents Page: • Introduction ..........................3 • Information on the operating instructions ................4 Technical data ........................4 1.1. Compressor type KVX ....................... 5 Intended Use ........................5 2.1. Generally information for a/c unit ..................5 2.2. Operating Conditions ......................6 General notes on the control unit KS55-Basic .............. -
Page 3: Introduction
These operating instructions contain all necessary information to operate your air conditioning unit. In case you need more explanations please contact the next KONVEKTA service station. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. -
Page 4: Information On The Operating Instructions
In case your product is equipped with details not shown or described in the operating instruction, your KONVEKTA -Service-Station will always be at disposal for informing you about correct opera- tion. In the course of further developments we reserve the right to technical modifications without notice. -
Page 5: Compressor Type Kvx
The air conditioning unit may be taken into operation again only after it has been checked at a KONVEKTA Service Station. On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service partners close to your location. -
Page 6: Operating Conditions
KONVEKTA systems are not suitable for such extreme application conditions. We indicate em- phatically, that corrosion is not subject to warranties for defects. KONVEKTA does not take over any warranties for defect, neither for corrosion nor for consequential damage resulting there from, nor for damages caused by cleaning the systems with highly compressed or corrosion advancing sub- stances. -
Page 7: Key Function Ks55 Basic
4.1. Key function KS55 Basic Symbol Alternator OFF Alternator ON - increases temperature up to 30° C max. - switches device ON - over 30° C, press 10 x , MAX heating - increases evaporator speed manually - programming key as hot key - decreases temperature down to 12°... -
Page 8: Description Of The Display (Lcd Symbols)
4.2. Description of the display (LCD symbols) Symbol Function Ambient-temperature display Room-temperature display 4-digit display for temperature / trou- ble-code etc. Passenger compartment Manual blower positions 1-7 Error in system Compressor is ON Evaporator blowers are ON Recirculated air flap in recirculated air mode Actual operation mode AUTO / RE- HEAT / HEAT (ECO) -
Page 9: Maintenance / Service
Before carrying out any maintenance works at your air conditioning unit, carefully read the KONVEKTA safety provisions (TD00052A ) in order to avoid any dangers and accidents! On our website www.konvekta.com in category >service< you will find a survey of contact details of all our service part- ners close to your location Source of supply: KONVEKTA AG, P.O. -
Page 10: Warranty Conditions
6. Warranty Conditions The current „General Warranty Conditions” KONVEKTA AG“ will apply. A copy will be furnished by the warranty department. Please contact gwl@konvekta.com. 7. Waste disposal in accordance with legal provisions After the phase of use the last proprietor is responsible for the adequate waste management.
