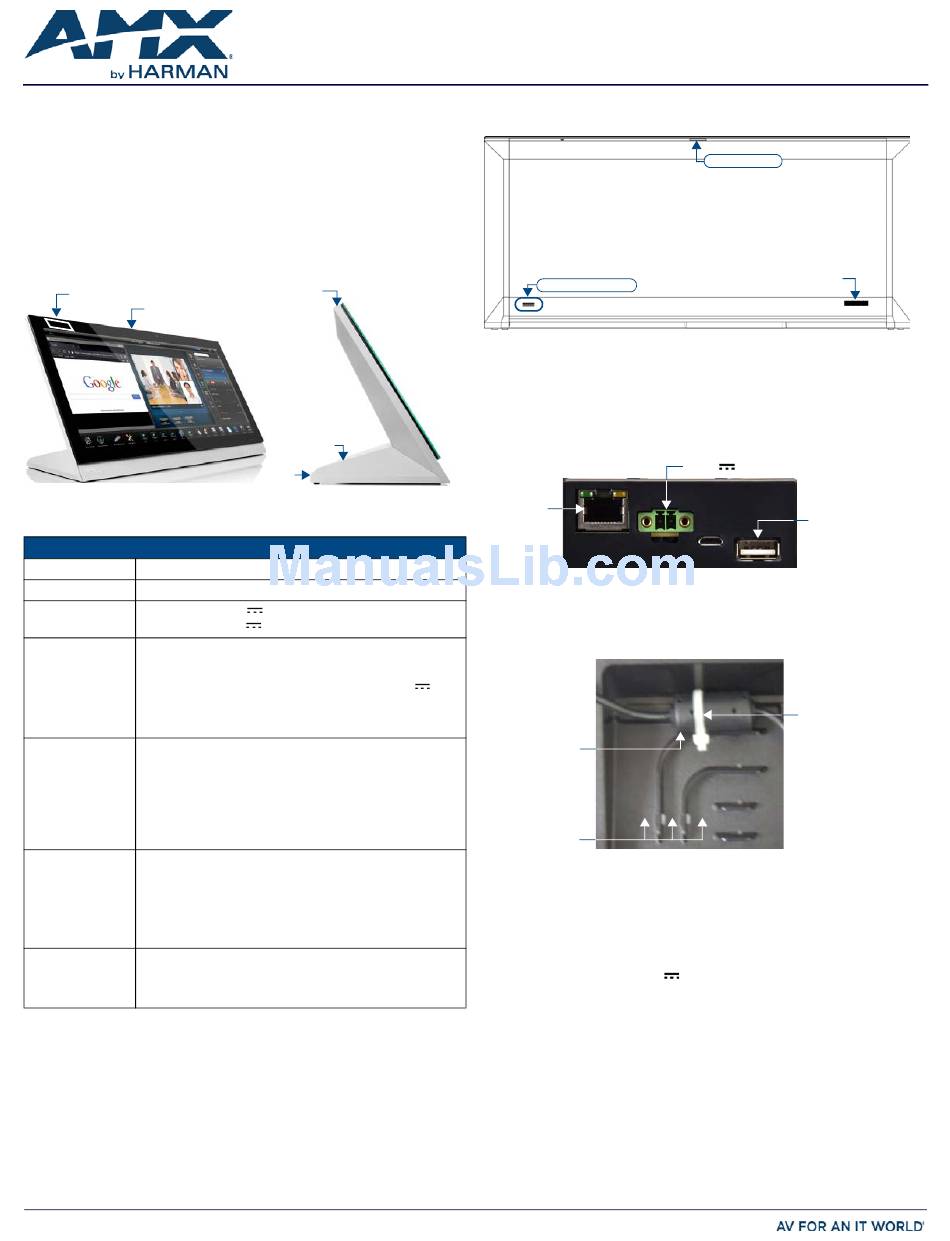

AMX MXT-2001-PAN Quick Start Manual

Overview
The MXT-2001-PAN 20.3" Modero X Series
(FG5968-35) features the G5 Graphic Engine to provide fast and smooth
animations and transitions, as well as a Quad Core Processor.
The MXT-2001-PAN features a panoramic capacitive multi-touch screen that
provides users access to multiple applications with minimal navigation. It is
hardware-ready for support of Near Field Communication™ (NFC) Technology to
allow personalization of the user experience and productivity enhancing
capabilities through integration with NFC capable personal devices.
The distinctive, low-profile design is engineered to sit perfectly on a table without
obstructing views.
NFC Sensor
Sleep Button
MXT-2001-PAN
FIG. 1
Product Specif ications
MXT-2001-PAN SPECIF ICATIONS
Dimensions (HWD) 9 3/16" x 20 3/8" x 5 7/8" (235 mm x 519 mm x 150 mm)
Weight 12.3 lbs (5.58 Kg)
Power
Full-On: 35 W (13.5V
Consumption
Standby: 7 W (13.5V
External Power Requires one of these AMX power sources (not included):
Supply Required • PSR4.4 Power Supply, 4.5A, 3.5 mm Phoenix with Retention
Screws (FG423-46)
• PSN4.4 Power Supply, 4.5A, 3.5 mm Phoenix, 13.5V
(discontinued) (FG423-45)
• MXA-MPL Modero X/S Series Multi Preview Live (FG5968-10)
• MXA-MP Modero X/S Series Multi Preview (FG5968-20)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 119.4 BTU/hr
Standby: 23.9 BTU/hr
Included • Locking 2-pin Phoenix mate (41-0002-SA)
Accessories • MXA-USB-C, USB Port Cover Kit (FG5968-18)
• HPG-10-10K, 3/4" Mini-Grommet (FG570-01)
• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
MXT-2001-PAN
®
G5 Panoramic Tabletop Touch Panel
Sleep Button
USB Ports (2)
Cable Slot
, 2.6A)
, 0.52A)
®
20.3" Modero X Series G5 Panoramic Tabletop Touch Panel

Connector Locations

Two Type A USB ports are located on the rear right corner of the device (FIG. 2).
Type A USB Ports
MXT-2001-REAR VIEW
FIG. 2
USB peripherals (mouse, keyboard, etc.) may be connected to either of the two
USB ports on the rear of the device.
The power and Ethernet connectors, as well as an additional USB port are located
on the bottom of the device (FIG. 3).
The underside USB port, as well as the two rear USB ports, may be used with a
flash drive for page transfers or firmware upgrades.
Ethernet
10/100 Port
MXT-2001-PAN UNDERSIDE CONNECTORS
FIG. 3
The MXT-2001-PAN does not have individual channels on the base of the device
to allow passage of cables from underneath the base. Instead, it has one slot at
the base to allow options on cable configuration, with channels for securing
power and Ethernet cables (FIG. 4).
Ferrite
Tie-wrap channels
TIE-WRAP FOR POWER CONNECTOR FERRITE
FIG. 4
Each channel side has slots for attaching tie-wraps to secure each cable. The
ferrite on the power cable must be secured with the included tie-wrap during
installation to prevent the possibility of the panel not sitting flush on the table.
Other cables may be secured with tie-wraps if desired, but this is not necessary.

Wiring Guidelines

The MXT-2001-PAN uses a 13.5V
the panel via the 2-pin 3.5 mm captive wire PWR connector.
The incoming PWR and GND wires from the power supply must be connected to
the corresponding locations within the PWR connector.
Note: Apply power to the panel only after installation is complete.
Note: Connecting power to the MXT-2001-PAN should be done using the included
2-pin 3.5mm captive wire connector included with the device. This connector is
retained within its port with locking screws instead of the pins on each side of
standard captive wire connectors, and using force to insert a standard captive wire
connector may damage the device.
QUICK START GUIDE
Sleep button
Speaker
13.5V Power Port
Type A USB Port
Tie-wrap
-compliant power supply to provide power to
