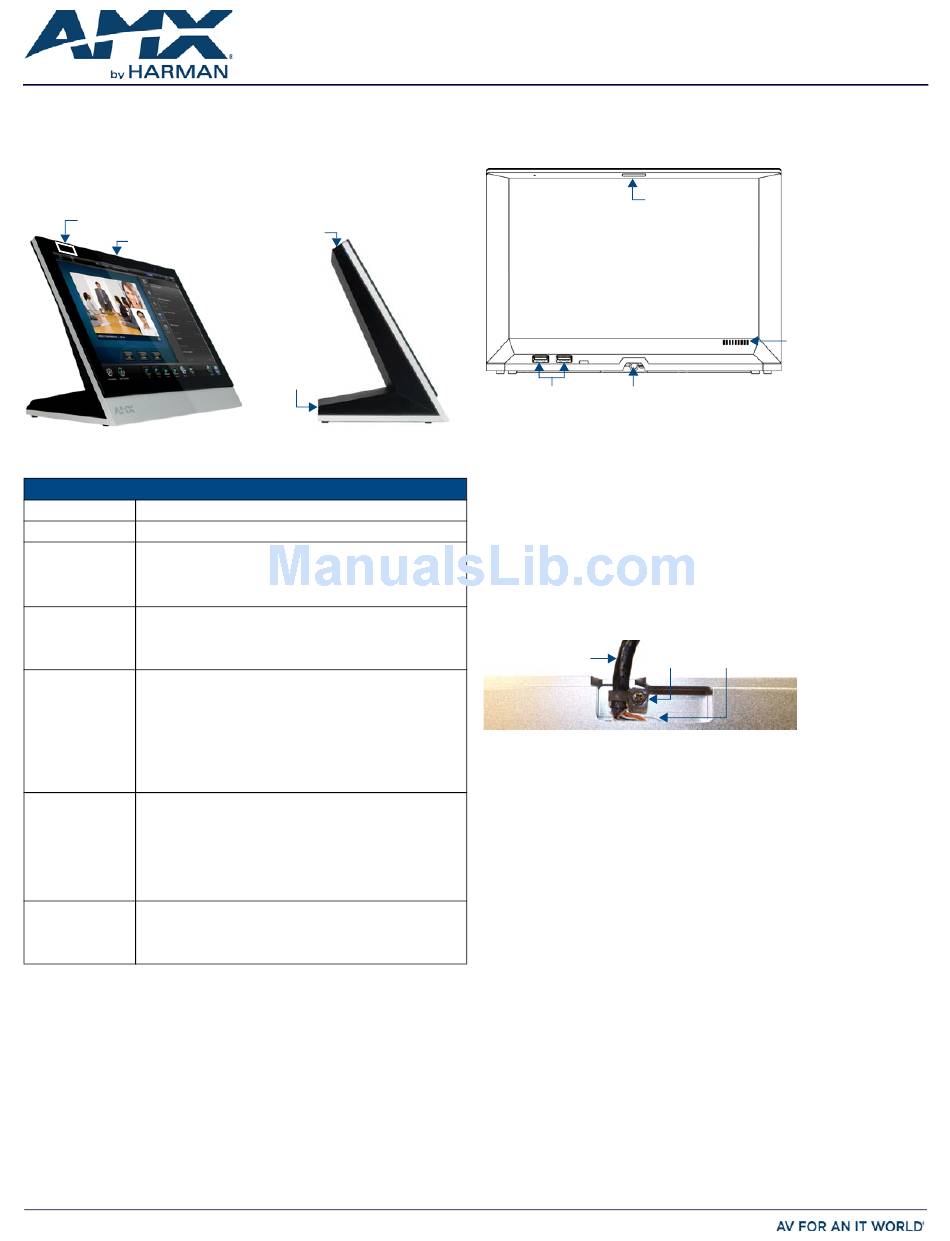

AMX MXT-1000 Quick Start Manual

Overview

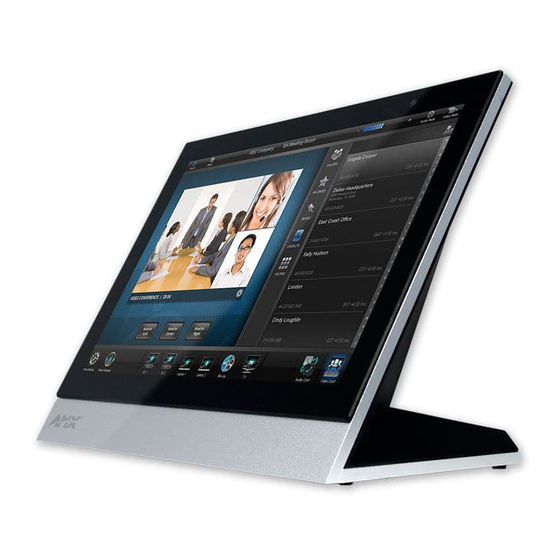

The MXT-1000 10.1" Modero X Series
features edge-to-edge capacitive touch glass with multi-touch capabilities. It
features advanced technology empowering users to operate AV equipment
seamlessly, while providing the ultimate in audio and video quality. The distinctive
appearance will complement even the most sophisticated meeting facilities and
homes.
NFC Sensor

Sleep Button

MXT-1000
FIG. 1
Product Specif ications
MXT-1000 SPECIF ICATIONS
Dimensions (HWD) 6 7/8" x 9 7/8" x 4 7/8" (174mm x 252mm x 124mm)
Weight 3.0 lbs (1.36 Kg)
Power • Full-On: 8W
Consumption
• Standby: 3.2W
• Shutdown: 1W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power Optimal performance requires use of one of the following AMX
Supply Required PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Certifications • UL 60950-1
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022, EN 55024 and EN 60950-1
• IEC 60950-1
• IC
• IEC/EN-60950
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 21.3 BTU/hr
Standby: 10.6 BTU/hr
Included • MXA-USB-C, USB Port Cover Kit, Modero X/S Series Touch
Accessories Panel (FG5968-18)
• 3/4" Mini-Grommet (FG570-01)
• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
Note: The MXT-1000-NC (FG5968-24) No Comm touch panel does not have
camera, microphone, or NFC capability. It otherwise has all of the functionality of
the MXT-1000 panel
®
Tabletop Touch Panel (FG5968-03)
Sleep Button
USB Ports (2)
MXT-1000
10.1" Modero X

Connector Locations

USB peripherals (mouse, keyboard, etc.) may be connected to either of the two
USB ports on the rear of the device. Updates to the device's firmware can also
made via the USB ports (FIG. 2).
USB Ports Entry for RJ45/PoE Cable
MXT-1000 - REAR VIEW
FIG. 2

Power via PoE

Power for the MXT-1000 is supplied via PoE (Power Over Ethernet ), utilizing an
AMX-certified, capacitive touch-compliant PoE injector such as the PS-POE-AT
High Power PoE Injector (FG423-81) or other approved AMX PoE power source
Connect the incoming Ethernet cable to the RJ45 port on the cable attached to
the device.
Ethernet Cable Installation and Modif ication
In installations where you wish to conceal the Ethernet cable, a hole at least 1.00"
(2.54 cm) in diameter is required in the surface to allow passage of the female
RJ45 connector (FIG. 3).
If using a smaller hole is unavoidable, you will need to disconnect the Ethernet
cable (ECA5968-05) from the device, to feed the male end of the cable through.
Ethernet Cable
BOTTOM OF THE MXT-1000
FIG. 3
Note: The minimum diameter hole through which the Ethernet cable may pass is
0.50" (1.27 cm).
To disconnect and reconnect the MXT-1000's Ethernet cable:
1. On a soft surface, turn the MXT-1000 face-down to access the bottom of the
device.
2. Remove the clamp holding the Ethernet cable (FIG. 3).
3. Remove the Ethernet cable connector and pull the cable out of the clamp.
4. Pass the Ethernet cable (ECA5968-05) through the hole, with the RJ45
connector on the other side of the installation surface from the device.
5. Press the Ethernet cable back into the clamp.
Do NOT tighten the clamp at this time.
6. Using a non-conductive item such as a wooden stick, reinsert the Ethernet
cable connector into the device. Ensure that the connector is properly
seated.
7. Tighten the clamp to secure the Ethernet cable.
Make sure the clamp is around the bundled black cable, not the individual
wires.
8. Connect the RJ45 connector to its incoming Ethernet cable and apply power.
QUICK START GUIDE
®
Series Tabletop Touch Panel
Sleep button
Speaker
Clamp
Connector
