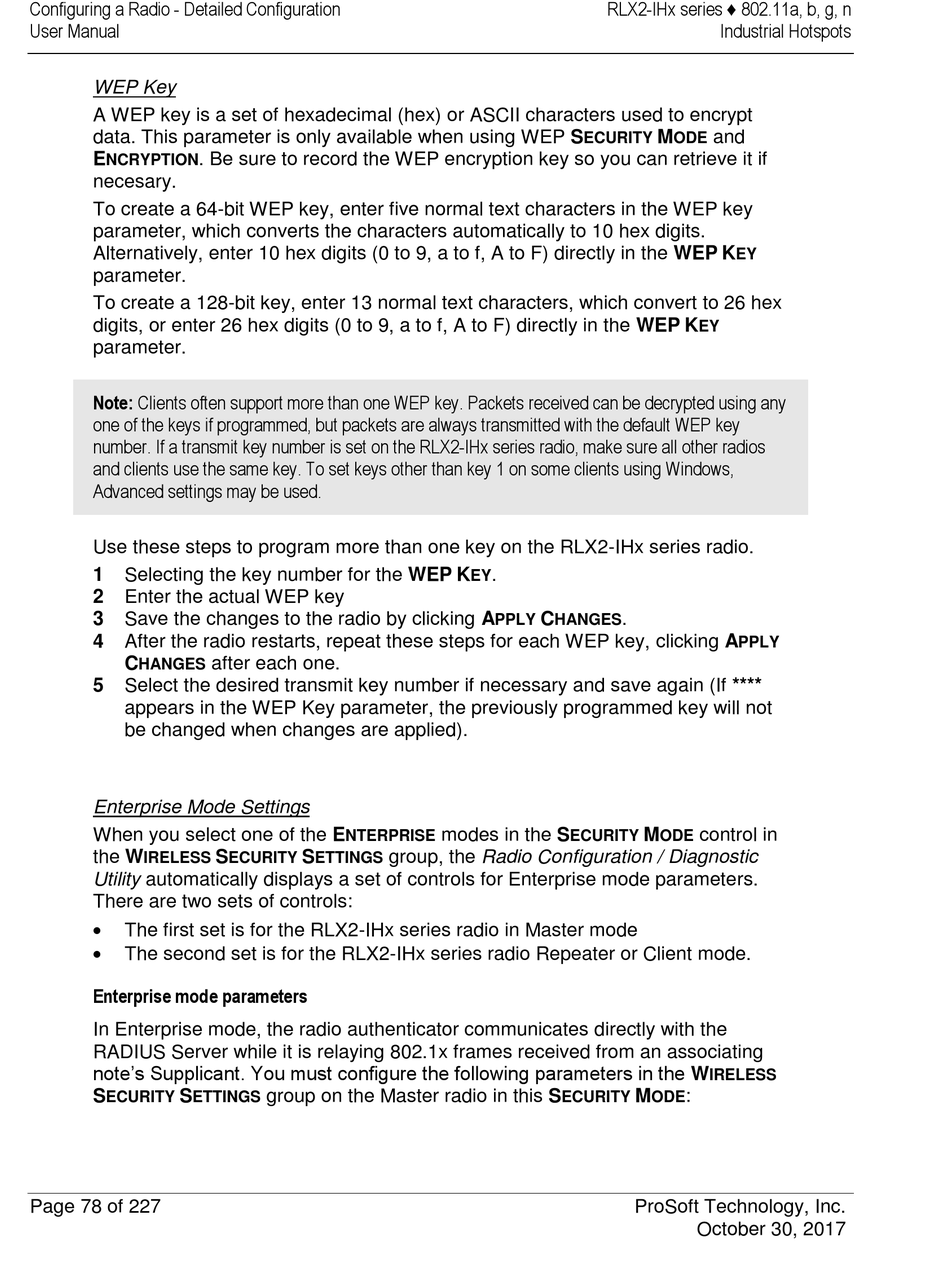

ProSoft Technology RLX2-IHA User Manual page 78

Configuring a Radio - Detailed Configuration
User Manual
WEP Key
A WEP key is a set of hexadecimal (hex) or ASCII characters used to encrypt
data. This parameter is only available when using WEP S
E . Be sure to record the WEP encryption key so you can retrieve it if
NCRYPTION
necesary.
To create a 64-bit WEP key, enter five normal text characters in the WEP key
parameter, which converts the characters automatically to 10 hex digits.
Alternatively, enter 10 hex digits (0 to 9, a to f, A to F) directly in the WEP K
parameter.
To create a 128-bit key, enter 13 normal text characters, which convert to 26 hex
digits, or enter 26 hex digits (0 to 9, a to f, A to F) directly in the WEP K
parameter.
Note: Clients often support more than one WEP key. Packets received can be decrypted using any
one of the keys if programmed, but packets are always transmitted with the default WEP key
number. If a transmit key number is set on the RLX2-IHx series radio, make sure all other radios
and clients use the same key. To set keys other than key 1 on some clients using Windows,
Advanced settings may be used.
Use these steps to program more than one key on the RLX2-IHx series radio.
1 Selecting the key number for the WEP K
2 Enter the actual WEP key
3 Save the changes to the radio by clicking A
4 After the radio restarts, repeat these steps for each WEP key, clicking A
C
HANGES
5 Select the desired transmit key number if necessary and save again (If ****
appears in the WEP Key parameter, the previously programmed key will not
be changed when changes are applied).
Enterprise Mode Settings
When you select one of the E
the W
IRELESS
Utility automatically displays a set of controls for Enterprise mode parameters.
There are two sets of controls:

The first set is for the RLX2-IHx series radio in Master mode

The second set is for the RLX2-IHx series radio Repeater or Client mode.
Enterprise mode parameters
In Enterprise mode, the radio authenticator communicates directly with the
RADIUS Server while it is relaying 802.1x frames received from an associating
note's Supplicant. You must configure the following parameters in the W
S S
ECURITY ETTINGS
Page 78 of 227
after each one.
NTERPRISE
S S group, the Radio Configuration / Diagnostic
ECURITY ETTINGS
group on the Master radio in this S
RLX2-IHx series ♦ 802.11a, b, g, n
ECURITY
.
EY
C
PPLY HANGES
modes in the S
ECURITY
ECURITY
Industrial Hotspots
M and
ODE
EY
EY
.
PPLY
M control in
ODE
IRELESS
M :
ODE
ProSoft Technology, Inc.
October 30, 2017
