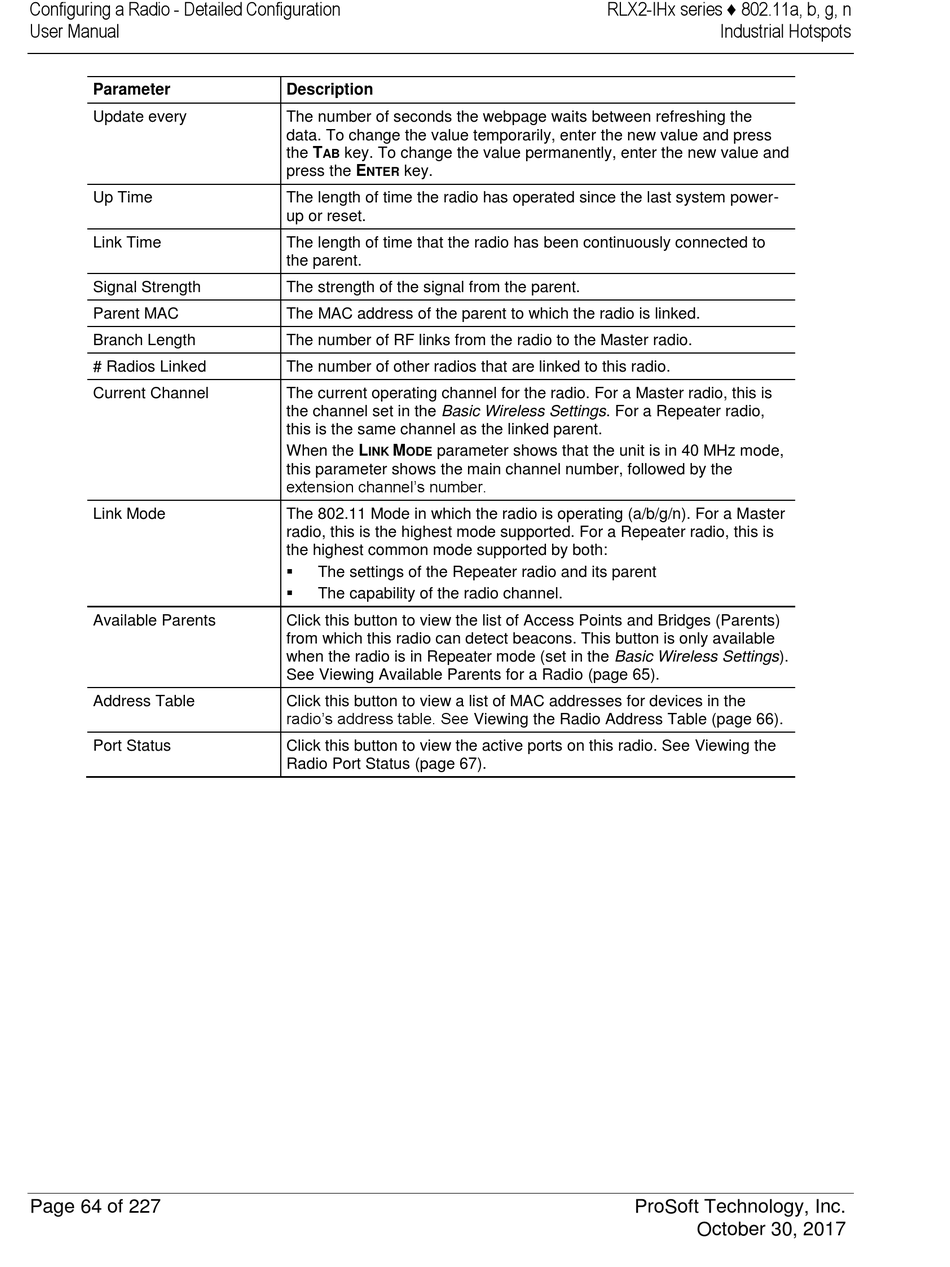

Configuring a Radio - Detailed Configuration
User Manual
Parameter
Update every
Up Time
Link Time
Signal Strength
Parent MAC
Branch Length
# Radios Linked
Current Channel
Link Mode
Available Parents
Address Table
Port Status
Page 64 of 227
Description
The number of seconds the webpage waits between refreshing the
data. To change the value temporarily, enter the new value and press
the T key. To change the value permanently, enter the new value and
AB
press the E key.
NTER
The length of time the radio has operated since the last system power-
up or reset.
The length of time that the radio has been continuously connected to
the parent.
The strength of the signal from the parent.
The MAC address of the parent to which the radio is linked.
The number of RF links from the radio to the Master radio.
The number of other radios that are linked to this radio.
The current operating channel for the radio. For a Master radio, this is
the channel set in the Basic Wireless Settings. For a Repeater radio,
this is the same channel as the linked parent.
When the L M parameter shows that the unit is in 40 MHz mode,
INK ODE
this parameter shows the main channel number, followed by the
extension channel's number.
The 802.11 Mode in which the radio is operating (a/b/g/n). For a Master
radio, this is the highest mode supported. For a Repeater radio, this is
the highest common mode supported by both:

The settings of the Repeater radio and its parent

The capability of the radio channel.
Click this button to view the list of Access Points and Bridges (Parents)
from which this radio can detect beacons. This button is only available
when the radio is in Repeater mode (set in the Basic Wireless Settings).
See Viewing Available Parents for a Radio (page 65).
Click this button to view a list of MAC addresses for devices in the
radio's address table. See Viewing the Radio Address Table (page 66).
Click this button to view the active ports on this radio. See Viewing the
Radio Port Status (page 67).
