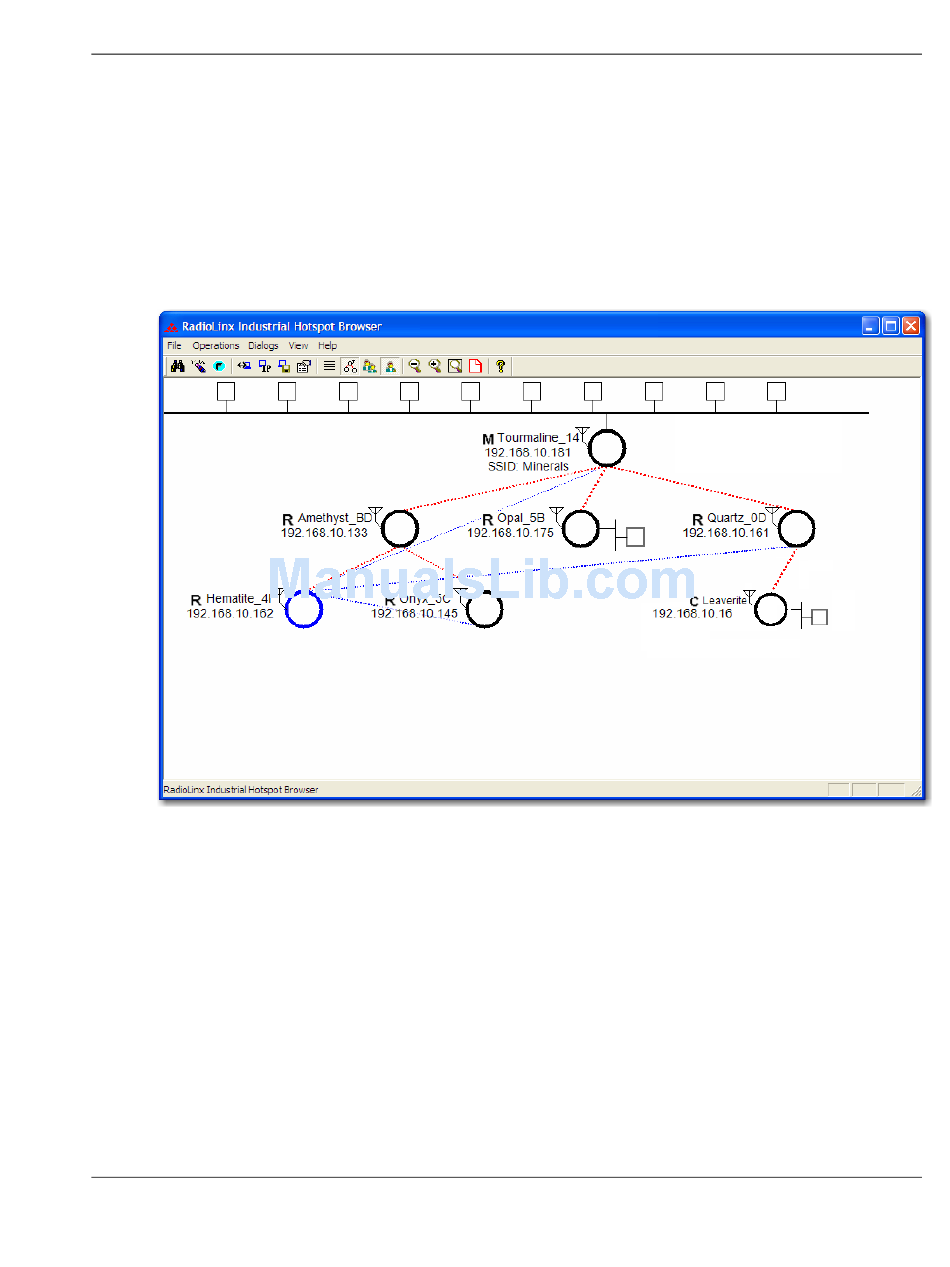

The following illustration shows the IH Browser application provided with the
radios. Notice it shows the radio named Hematite_4F, linked to Amethyst_BD.
This link is shown with a red dotted line. Also visible is the level of redundancy in
their network. Each of the blue lines represents an alternate parent. From this
view, it is easily shown how much redundancy exists in their network.
To display the redundant paths, select the toolbar button denoting two "parents."
To view the redundancy on a per-radio basis, select the single Parent button,
and then click on the radio to view its available redundancies.
