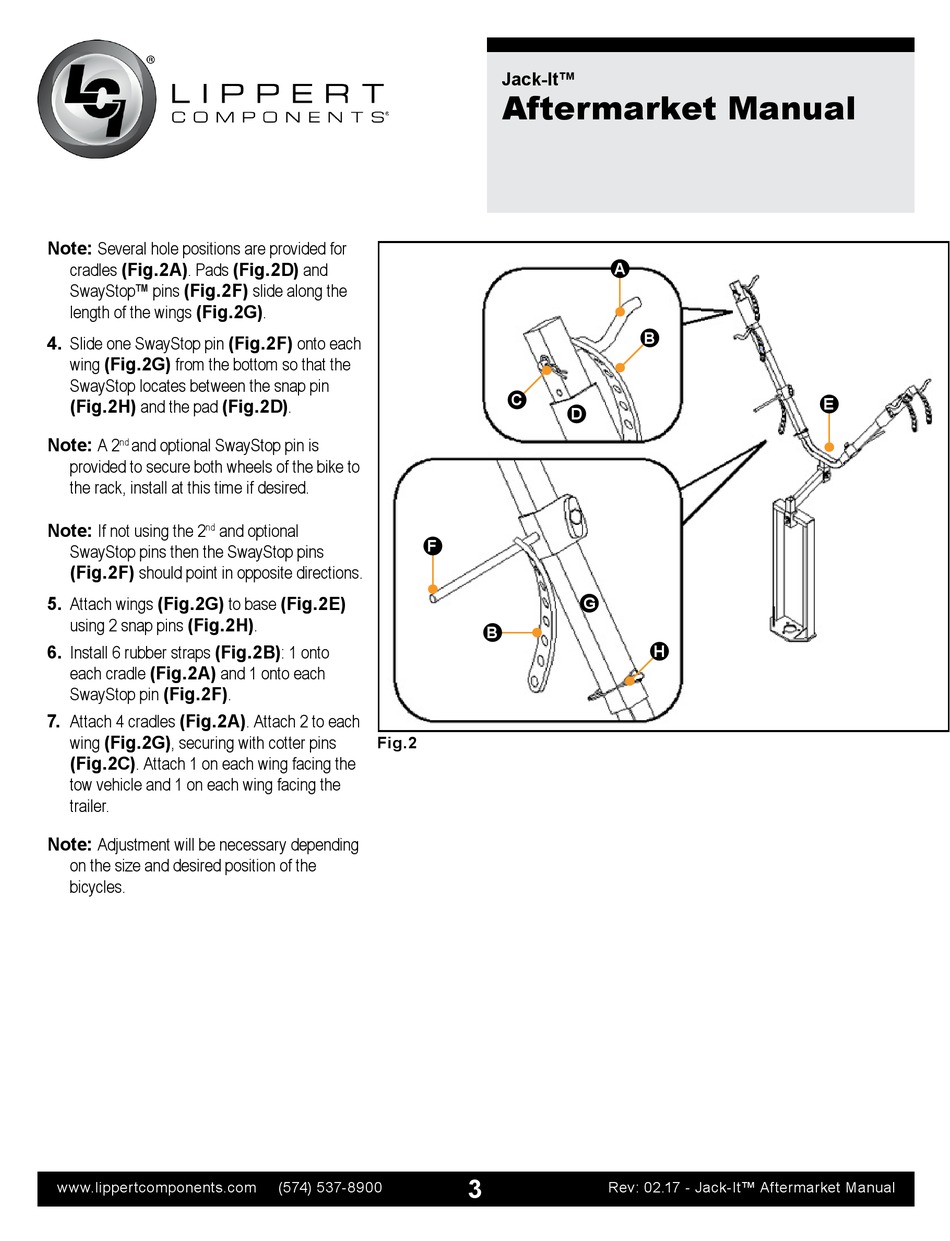

Note: Several hole positions are provided for
cradles (Fig�2A). Pads (Fig�2D) and
SwayStop™ pins (Fig�2F) slide along the
length of the wings (Fig�2G).
4� Slide one SwayStop pin (Fig�2F) onto each
wing (Fig�2G) from the bottom so that the
SwayStop locates between the snap pin
(Fig�2H) and the pad (Fig�2D).
Note: A 2 and optional SwayStop pin is
nd
provided to secure both wheels of the bike to
the rack, install at this time if desired.
Note: If not using the 2 and optional
nd
SwayStop pins then the SwayStop pins
(Fig�2F) should point in opposite directions.
5� Attach wings (Fig�2G) to base (Fig�2E)
using 2 snap pins (Fig�2H).
6� Install 6 rubber straps (Fig�2B): 1 onto
each cradle (Fig�2A) and 1 onto each
SwayStop pin (Fig�2F).
7� Attach 4 cradles (Fig�2A). Attach 2 to each
wing (Fig�2G), securing with cotter pins
(Fig�2C). Attach 1 on each wing facing the
tow vehicle and 1 on each wing facing the
trailer.
Note: Adjustment will be necessary depending
on the size and desired position of the
bicycles.
