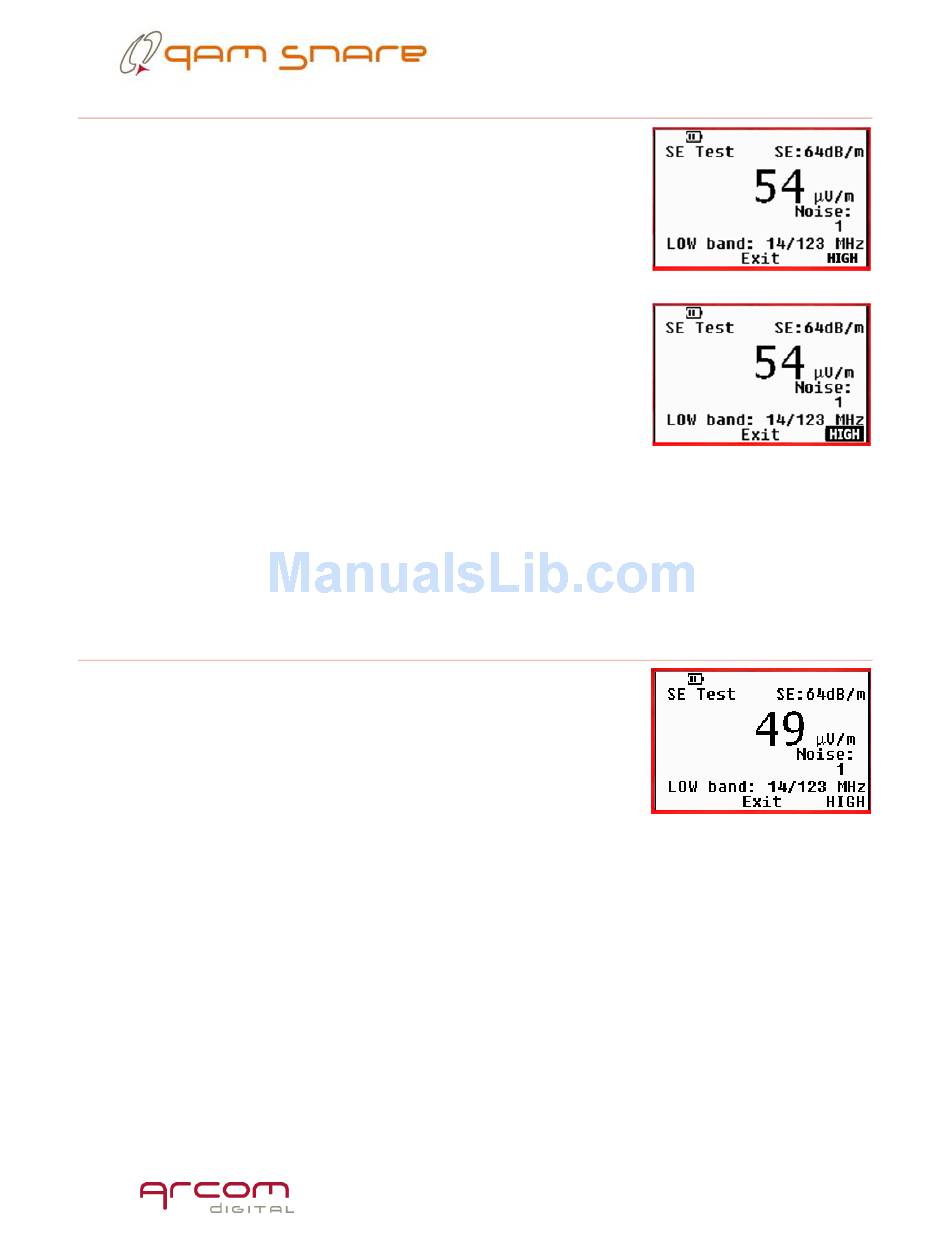

Screen navigation in Shielding Test mode

The Snoop Shielding Test detector is configured for
operation in both the LTE and AERO bands. The right arrow
button is used to conveniently switch the display between
the two frequencies. Remember that when switching, the
antenna must also be switched – if a dual band antenna is
not being utilized.
The device is capable of simultaneous detection at the
two frequencies, and will provide an audio alarm if the
detected level exceeds the configured threshold settings at
either of the bands. If a leak is detected at the band not
being currently displayed in the screen, the second band
indication at the lower right portion of the screen will flash,
along with the audio alarm.
To switch the display to a different band, press the right arrow button that
corresponds to the highlighted second band circled in blue to the right – in this case
the LTE band.

Shielding effectiveness indication

When in Shielding detector mode, along with the detected
leak level - the equivalent shielding effectiveness of the leak
will be displayed in the upper right corner. This indication
may be used by the technician as a sort of home certification
metric. The SE and indicated leak level are both normalized
to remove the extra signal level from the inserted pilot
carrier.
