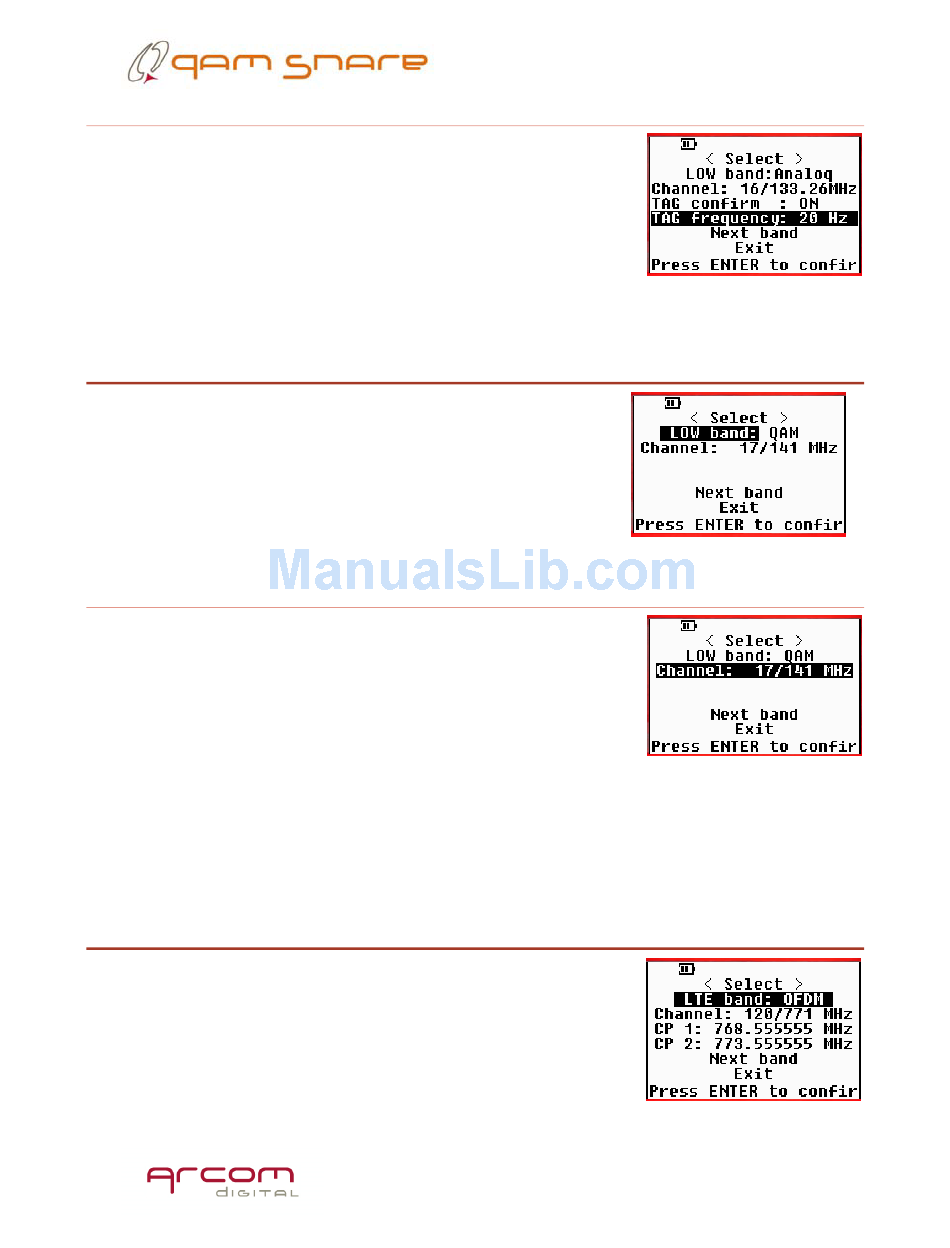

Tag frequency

The TAG frequency must be configured to match the
frequency of the utilized tag system. Default is 20 Hz. To
change to a different frequency, navigate to the TAG
frequency line, press enter, and use the arrow keys to select
desired modulation frequency. Selectable options range
from 10 – 30 Hz.

Channel - QAM detection

From either the Low band or LTE band selection line,
press enter, use the arrows to select QAM, then press
enter.

QAM channel

To select the QAM channel, navigate down to the Channel
line, press enter, and use the arrows to select the desired
frequency.
After selecting the channel, navigate down to Next band
and repeat the process to configure the second channel.
For QAM detection, it is recommended to use only channels configured as Global
Channels in the QAM Snare Manager Program to avoid channel contention issues. Each
server is only able to process four different channels, and all users connected to the
server must operate only on those four channels.
Channel – OFDM detection
From either the Low band or LTE band selection line,
press enter, use the arrows to select OFDM, then press enter.
