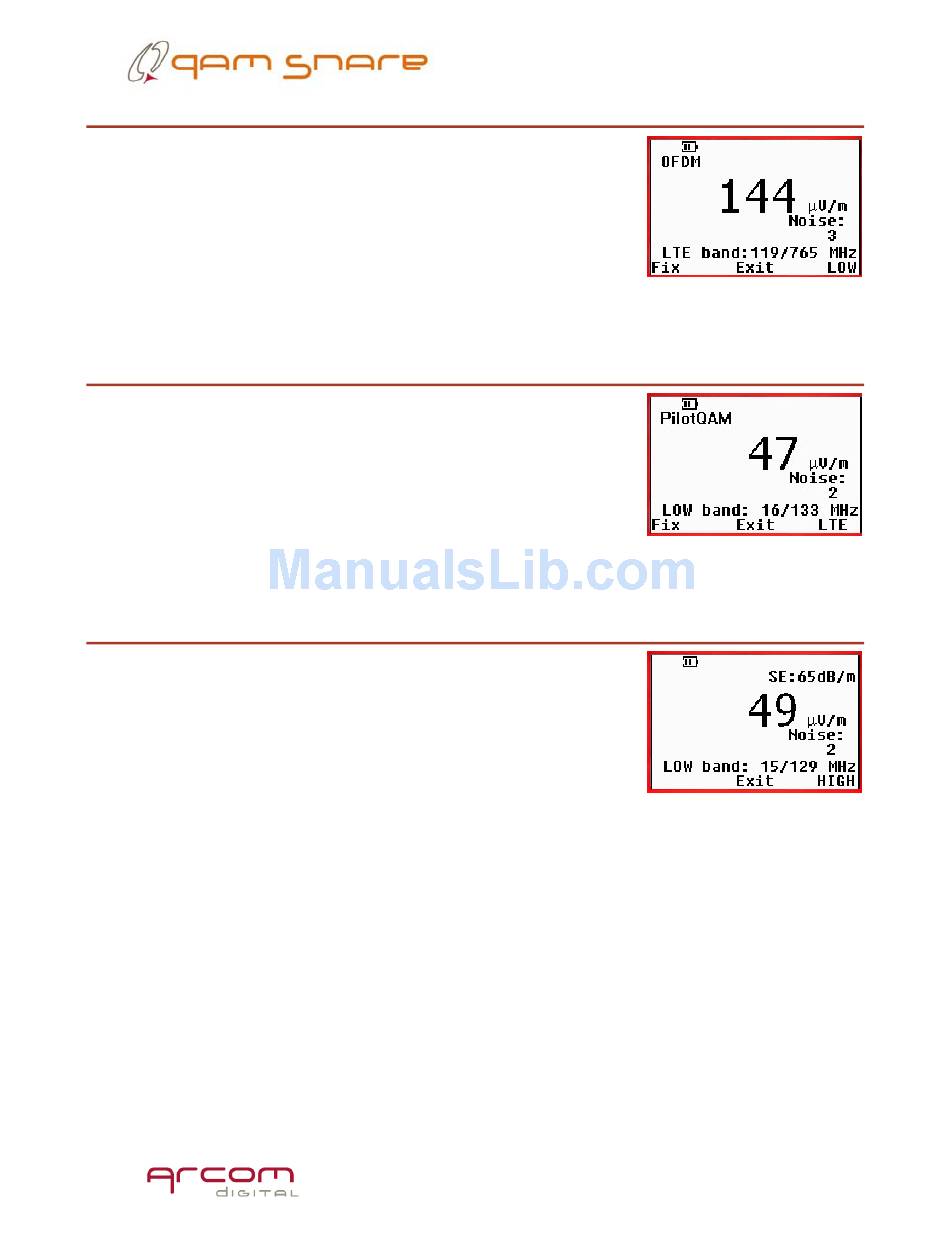

Detector Mode – OFDM
When OFDM detector mode is selected, the unit will
clearly display OFDM, such that the user knows which mode
was selected. GPS is not required in this mode. Navigation to
the second band and fixing detection to one frequency is the
same as described in Detector Mode – QAM section of this
manual above.
Detector Mode – Pilot/QAM
When Pilot/QAM detector mode is selected, the unit will
clearly display "PilotQAM". GPS is not required in this mode.
Navigation to the second band and fixing detection to one
frequency is the same as described above.
Detector Mode – Shielding Test
When the detector is put into Shielding Test mode, it
detects the signals output by the companion QAM Snare Pilot
Transmitter. As described in this manual, the Pilot
Transmitter must be programmed by the Snoop to operate at
the frequency for which the Snoop is configured. The Snoop
can be configured as a pilot detector to operate at either the aeronautical band and/or
the LTE band. The user must ensure that the proper antenna is used for each band.
The antennas will only be the same if a combination antenna is employed. The Pilot
mode requires neither Wi-Fi connectivity nor GPS connectivity. When the detector is in
Pilot mode – for clarity, the words "SE Test" will continuously flash on the upper left
corner of the screen.
