None
Unspecified

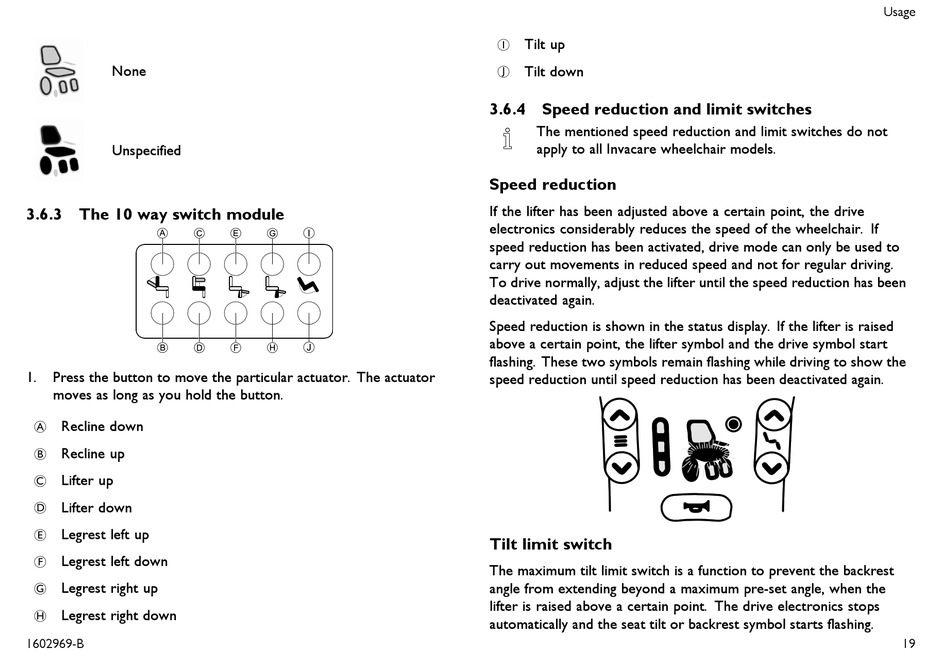

3.6.3 The 10 way switch module

1. Press the button to move the particular actuator. The actuator
moves as long as you hold the button.
A Recline down
B Recline up
C Lifter up
D Lifter down
E Legrest left up
F Legrest left down
G Legrest right up
H Legrest right down
1602969-B
I Tilt up
J Tilt down

3.6.4 Speed reduction and limit switches

The mentioned speed reduction and limit switches do not
apply to all Invacare wheelchair models.
Speed reduction
If the lifter has been adjusted above a certain point, the drive
electronics considerably reduces the speed of the wheelchair. If
speed reduction has been activated, drive mode can only be used to
carry out movements in reduced speed and not for regular driving.
To drive normally, adjust the lifter until the speed reduction has been
deactivated again.
Speed reduction is shown in the status display. If the lifter is raised
above a certain point, the lifter symbol and the drive symbol start
flashing. These two symbols remain flashing while driving to show the
speed reduction until speed reduction has been deactivated again.
Tilt limit switch
The maximum tilt limit switch is a function to prevent the backrest
angle from extending beyond a maximum pre-set angle, when the
lifter is raised above a certain point. The drive electronics stops
automatically and the seat tilt or backrest symbol starts flashing.
Usage
