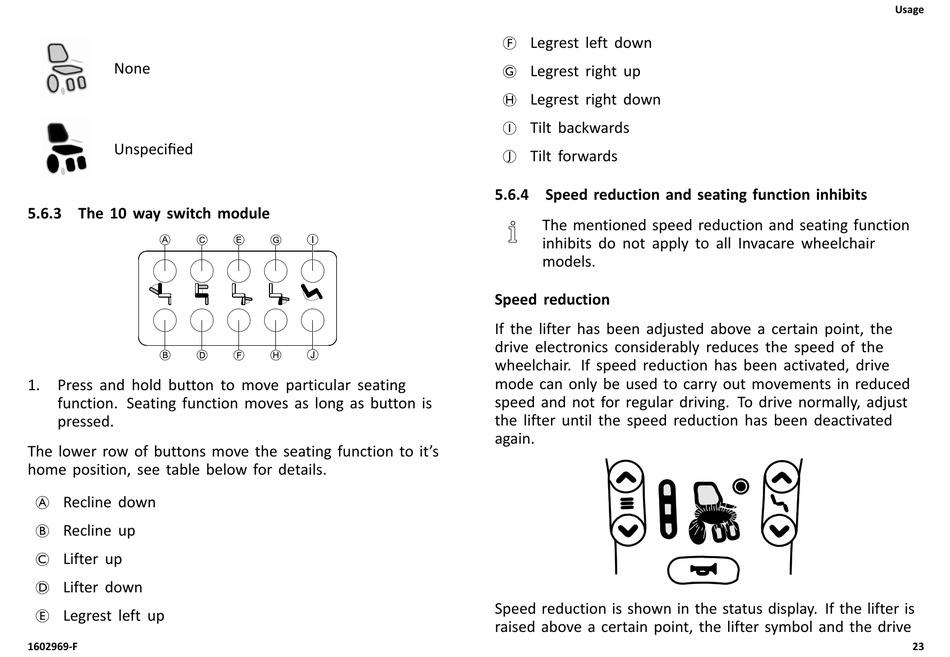

5.6.3 The 10 way switch module

1. Press and hold button to move particular seating
function. Seating function moves as long as button is
pressed.
The lower row of buttons move the seating function to it's
home position, see table below for details.
A Recline down
B Recline up
C Lifter up
D Lifter down
E Legrest left up
1602969-F
F Legrest left down
G Legrest right up
H Legrest right down
I Tilt backwards
J Tilt forwards

5.6.4 Speed reduction and seating function inhibits

The mentioned speed reduction and seating function
inhibits do not apply to all Invacare wheelchair
models.
Speed reduction
If the lifter has been adjusted above a certain point, the
drive electronics considerably reduces the speed of the
wheelchair. If speed reduction has been activated, drive
mode can only be used to carry out movements in reduced
speed and not for regular driving. To drive normally, adjust
the lifter until the speed reduction has been deactivated
again.
Speed reduction is shown in the status display. If the lifter is
raised above a certain point, the lifter symbol and the drive
