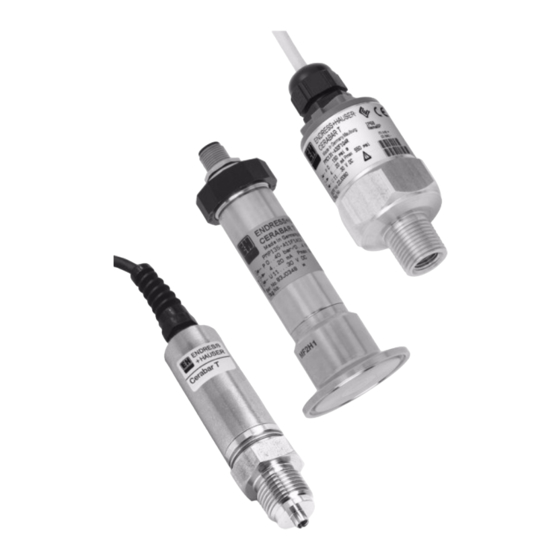

Cerabar T PMC131, PMP131, PMP135
Pressure Transducer
With ceramic and metal sensors
For absolute pressure and gauge pressure measurement up to 400 bar
Extremely stable, overload-resistant and reliable
TI415P/00/en
Application
Cerabar T is a pressure transducer for measuring absolute
pressure and gauge pressure in gases, vapors, liquids and
dusts.
Hygienic and threaded connections are available as
process connections.
Your benefits
This compact pressure transducer impresses with its
well-engineered construction:
• High reproducibility and long-term stability.
• Finely graduated measuring ranges from vacuum up to
400 bar/6000 psi.
®
• Ceraphire
ceramic sensor: corrosion-proof, abrasion-
proof and extremely overload-resistant.
• Deployed for pressure monitoring up to SIL 2 as per
IEC 61508/IEC 61511-1
• Sensors
– Dry capacitance ceramic sensor (Ceraphire
measuring ranges up to 40 bar:
overload-resistant, vacuum-proof, stable against
alternating load
– Piezoresistive sensor with metal diaphragm for
measuring ranges up to 400 bar
®
) for
