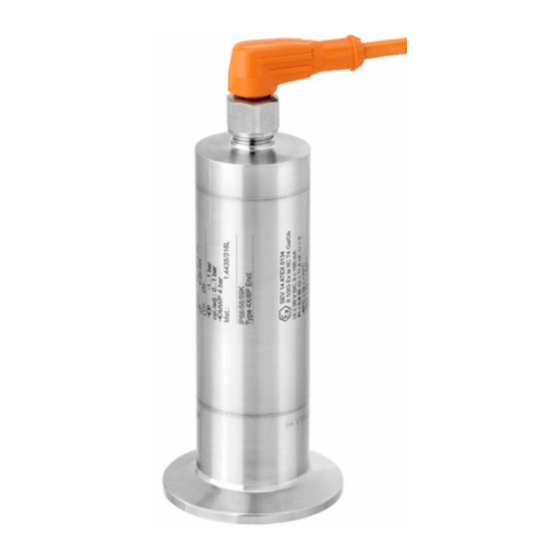

Summary of Contents for Endress+Hauser Cerabar PMP23
Page 1

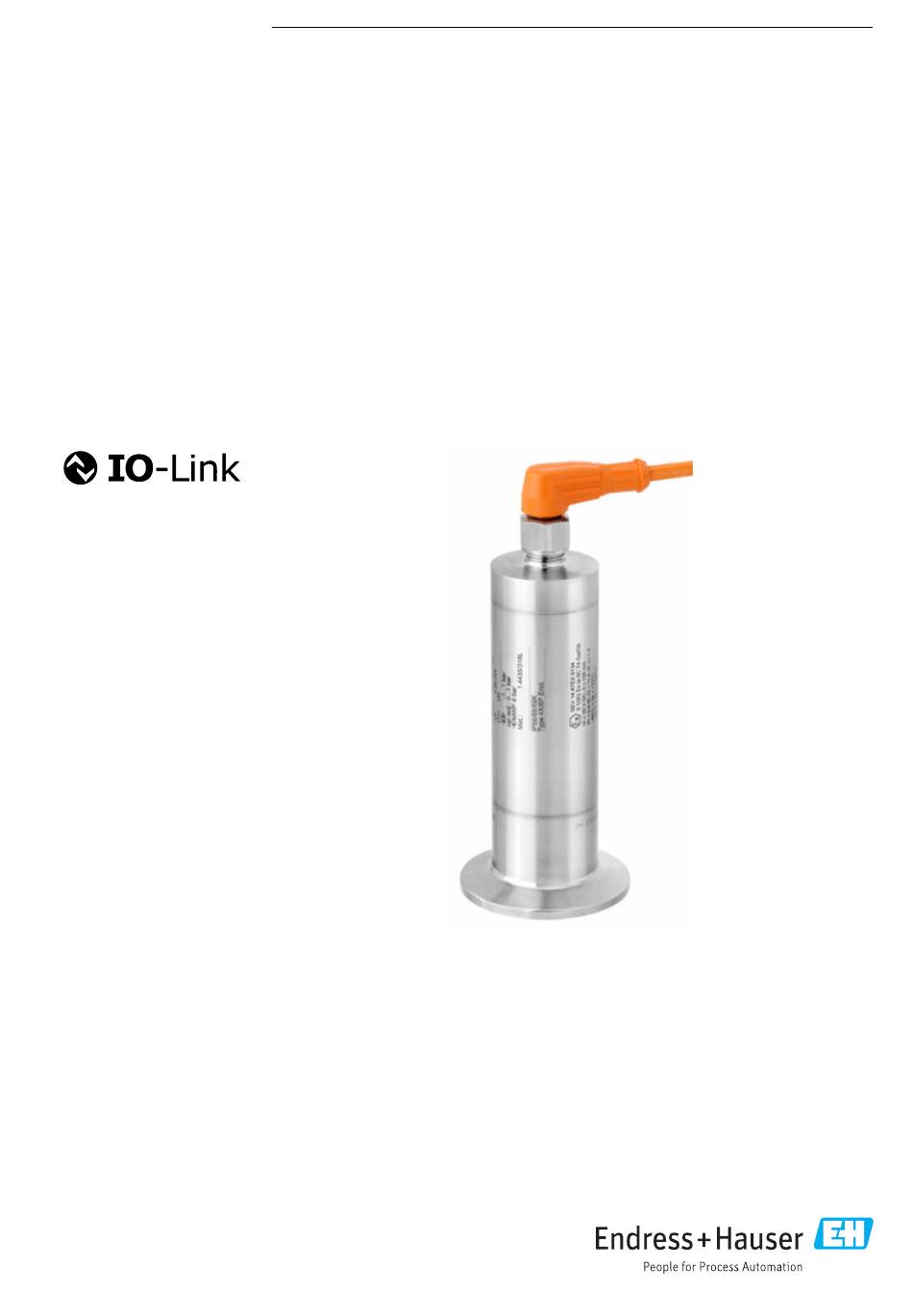

Products Solutions Services BA01784P/00/EN/03.23-00 71621486 2023-07-11 Operating Instructions Cerabar PMP23 IO-Link Process pressure measurement Pressure transducer for safe measurement and monitoring of absolute and gauge pressure...
Page 2
• The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to this manual. Endress+Hauser...
Cerabar PMP23 IO-Link Table of contents Table of contents Configuring pressure measurement ..29 About this document ....4 Performing position adjustment .
About this document Cerabar PMP23 IO-Link About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
1, 2, 3 ... Item numbers Series of steps Documentation The following document types are available in the Downloads area of the Endress+Hauser website (www.endress.com/downloads): For an overview of the scope of the associated Technical Documentation, refer to the following: •...
About this document Cerabar PMP23 IO-Link Terms and abbreviations A0029505 OPL: The OPL (over pressure limit = sensor overload limit) for the measuring device depends on the lowest- rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell.
Cerabar PMP23 IO-Link About this document |URV LRV| In this example, the TD is 2:1. This span is based on the zero point. Registered trademarks is a registered trademark of the IO-Link Consortium. Endress+Hauser...
Clarification of borderline cases: ‣ With regard to special fluids and media used for cleaning, Endress+Hauser will be happy to assist in clarifying the corrosion-resistant properties of wetted materials but gives no guarantee or warranty as to the suitability of the materials.
It meets the general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...
Cerabar PMP23 IO-Link Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance DELIVERY NOTE A0028673 1 = 2 A0016870 Is the order code on the delivery note (1) identical to the order code on the product sticker (2)?
Incoming acceptance and product identification Cerabar PMP23 IO-Link Product identification The measuring device can be identified in the following ways: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial number from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): all the information about the measuring device is...
Page 13
Cerabar PMP23 IO-Link Incoming acceptance and product identification 4.3.2 Transporting the product to the measuring point WARNING Incorrect transport! Housing and diaphragm may become damaged, and there is a risk of injury! ‣ Transport the measuring device to the measuring point in its original packaging or by the process connection.
Mounting Cerabar PMP23 IO-Link Mounting Installation conditions • Moisture must not penetrate the housing when mounting the device, establishing the electrical connection and during operation. • For M12 plug made of metal: Do not remove the protection cap (only in IP69) of M12 plug connection until shortly before electrical connection.
Cerabar PMP23 IO-Link Mounting Mounting location 5.3.1 Pressure measurement Pressure measurement in gases Mount the device with shutoff device above the tapping point so that any condensate can flow into the process. A0021904 Device Shutoff device Pressure measurement in vapors For pressure measurement in vapors, use a siphon.
Mounting Cerabar PMP23 IO-Link A0024399 Device Shutoff device 5.3.2 Level measurement • Always install the device below the lowest measuring point. • Do not install the device at the following positions: • in the filling curtain • in the tank outlet •...
Cerabar PMP23 IO-Link Electrical connection Electrical connection Connecting the measuring unit 6.1.1 Terminal assignment WARNING Risk of injury from the uncontrolled activation of processes! ‣ Switch off the supply voltage before connecting the device. ‣ Make sure that downstream processes are not started unintentionally.
Electrical connection Cerabar PMP23 IO-Link Connection data 6.2.1 Relay switching capacity • Switch state ON: I ≤ 200 mA ; Switch state OFF: I ≤1 mA • Switch cycles: >10,000,000 • Voltage drop PNP: ≤2 V • Overload protection: Automatic load testing of switching current;...
• Article number • Product type 7.1.2 Structure of the operating menu The menu structure has been implemented according to VDMA 24574-1 and complemented by Endress+Hauser-specific menu items. For an overview of the operating menu, see the → 43 Endress+Hauser...
System integration Cerabar PMP23 IO-Link System integration Process data The measuring device has a current output and a switch output. The status of the switch output is transmitted in the form of process data via IO-Link. • In the SIO mode, switch output 1 is switched at pin 4 of the M12 plug. In the IO-Link communication mode, this pin is reserved exclusively for communication.
Cerabar PMP23 IO-Link System integration Bit-offset Name Data type Permitted values Offset/gradient Description Process Data Input.Switching 1-bit Uinteger 0 = False Switching signal status SSC Signal Channel 1.1 1 = True Pressure Process Data Input.Switching 1-bit Uinteger 0 = False Switching signal status SSC Signal Channel 1.2...
Page 22
System integration Cerabar PMP23 IO-Link ISDU Name ISDU Size Data type Access Default value Value range Offset/ Data Range (dec) (hex) (byte) gradient storage limits Lower Range Value 0x0047 IntegerT as 00.00% bar: 0/0.001 for 4 mA (STL) Default 0.00% kPa: 0/0.1...
Page 23
Cerabar PMP23 IO-Link System integration ISDU Name ISDU Size Data type Access Default Value range Offset/gradient Data Range (dec) (hex) (byte) value storage limits Switchback delay time, 0x0050 Uinteger in 00.00 sec 0/0.01 Output 1 (dR1) Output 1 (Ou1) 0x0051...
Page 24
System integration Cerabar PMP23 IO-Link Teach - Single value ISDU (dec) Name ISDU (hex) Size (byte) Data type Access Default value Value range Data storage Teach Select 0x003A UintegerT r/w 0 ~ Default Channel = SSC1.1 Pressure 1 ~ SSC1.1 Pressure 2 ~ SSC1.2 success...
Page 25
Cerabar PMP23 IO-Link System integration Measurement Data Information ISDU (dec) Subindex Name ISDU (hex) Size (byte) Data type Access Default Value Data value range storage 16512 0x4080 Float32T Descriptor - Pressure.Lo wer Value 16512 0x4080 Float32T Descriptor - Pressure.Up per Value...
Page 26
System integration Cerabar PMP23 IO-Link A0046577 1 SSC, Single Point Hysteresis Sp1 Switch point 1 MV Measured value inactive (orange) active (green) Window Mode always corresponds to whichever value is higher, SP1 or SP2, and SP always corresponds to whichever value is lower, SP1 or SP2.
Page 27
Cerabar PMP23 IO-Link System integration A0046578 3 SSC, Two-point Switch point with lower measured value Switch point with higher measured value MV Measurement value Inactive (orange) Active (green) Endress+Hauser...
Commissioning Cerabar PMP23 IO-Link Commissioning If an existing configuration is changed, measuring operation continues! The new or modified entries are only accepted once the setting has been made. If block parameter configuration is used, a parameter change is only adopted after the parameter download.
Cerabar PMP23 IO-Link Commissioning Configuring pressure measurement 9.3.1 Adjustment without reference pressure (dry adjustment = adjustment without medium) Example: In this example, a device with a 400 mbar (6 psi) sensor is configured for the measuring range 0 to 300 mbar (0 to 4.4 psi).
Page 30
Commissioning Cerabar PMP23 IO-Link 9.3.2 Adjustment with reference pressure (wet adjustment = adjustment with medium) Example: In this example, a device with a 400 mbar (6 psi) sensor is configured for the measuring range 0 to 300 mbar (0 to 4.4 psi).
Cerabar PMP23 IO-Link Commissioning Performing position adjustment Zero point configuration (ZRO) Navigation Parameter → Application → Sensor → Zero point configuration (ZRO) Description (Typically absolute pressure sensor) A pressure shift resulting from the orientation of the device can be corrected by the position adjustment.
Page 32
Commissioning Cerabar PMP23 IO-Link Prerequisite The pressure value present is automatically adopted as the zero point. An offset is possible (parallel shifting of the sensor characteristic) to correct the orientation and any zero point drift. The accepted value of the parameter is subtracted from the "raw measured value".
Cerabar PMP23 IO-Link Commissioning Configuring process monitoring For process monitoring, it is possible to specify a pressure range which is monitored by the point level switch. Both monitoring versions are described below. The monitoring function allows the user to define optimum ranges for the process (with high yields etc.) and deploy a point level switch to monitor the ranges.
Commissioning Cerabar PMP23 IO-Link Current output Operating Mode (FUNC) Navigation Parameter → Application → Sensor → Operating Mode (FUNC) Description Enables the desired behavior of output 2 (not IO-Link output) Options Options: • OFF • 4-20 mA (I) Value for 4 mA (STL) Navigation Parameter →...
Page 35
Cerabar PMP23 IO-Link Commissioning Navigation Parameter → Application → Current output → Pressure applied for 4mA (GTL) Description The pressure value present is automatically adopted for the 4 mA current signal. Parameter for which the current range can be assigned to any section of the nominal range.
Commissioning Cerabar PMP23 IO-Link Application examples 9.7.1 Compressor control with two-point mode Example: The compressor is started when the pressure drops below a certain value. The compressor is switched off when a certain value is exceeded. 1. Set the switch point to 2 bar (29 psi) 2.
Cerabar PMP23 IO-Link Diagnostics and troubleshooting Diagnostics and troubleshooting 10.1 Troubleshooting If an illegal configuration exists in the device, the device switches to the failsafe mode. Example: • The diagnostic message "C485" is displayed via IO-Link. • The device is in the simulation mode.
Diagnostics and troubleshooting Cerabar PMP23 IO-Link 10.2 Diagnostic events 10.2.1 Diagnostic message Faults that are detected by the device' s self-monitoring system are displayed as a diagnostic message via IO-Link. Status signals The table → 39 lists the messages that may occur. The Actual Diagnostic (STA) parameter displays the message with the highest priority.
Page 39
Cerabar PMP23 IO-Link Diagnostics and troubleshooting 10.2.2 Overview of diagnostic events Status signal/ Diagnostic EventCode Event text Cause Remedial measure Diagnostic behavior event S140 Warning 0x180F Sensor signal outside Overpressure or low pressure Operate device in the specified measuring of permitted ranges...
Diagnostics and troubleshooting Cerabar PMP23 IO-Link Status signal/ Diagnostic EventCode Event text Cause Remedial measure Diagnostic behavior event S971 Warning 0x1811 Measured value is The current is outside the Operate the device within the set span outside sensor range permitted range from 3.8 to 20.5...
Cerabar PMP23 IO-Link Maintenance Changing the failsafe mode After writing to the device from MAX to MIN active immediately from MIN to MAX active immediately 10.4.1 Alarm current Name Option Min. alarm current set Product Configurator, order code for "Service"...
The measuring device must be returned if the wrong device has been ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium.
Cerabar PMP23 IO-Link Overview of the operating menu Overview of the operating menu Depending on the parameter configuration, not all submenus and parameters are available. Information on this can be found in the parameter description under "Prerequisite". 13.1 Without Smart Sensor Profile...
Description of device parameters Cerabar PMP23 IO-Link Description of device parameters 14.1 Identification Extended order code Navigation Identification → Extended order code Description Used to replace (reorder) the device. Displays the extended order code (max. 60 alphanumeric characters). Factory setting...
Cerabar PMP23 IO-Link Description of device parameters 14.2 Diagnosis Device Status Only with Smart Sensor Profile Navigation Diagnosis → Diagnosis → Device Status Description Current device status Selection • 0 = Device OK • 1 = Maintenance required • 2 = Out of specification •...
Description of device parameters Cerabar PMP23 IO-Link Description The simulation affects the process data only. It does not affect the physical switch output. If a simulation is active, a warning to this effect is displayed so that it is obvious to the user that the device is in the simulation mode.
Description of device parameters Cerabar PMP23 IO-Link Prerequisite An offset is possible (parallel shifting of the sensor characteristic) to correct the orientation and any zero point drift. The set value of the parameter is subtracted from the "raw measured value". The requirement to be able to perform a zero point shift without changing the span is met with the offset function.
Cerabar PMP23 IO-Link Description of device parameters Example 1 • Measured value = 0.002 bar (0.029 psi) • Use the Zero point adoption (GTZ) parameter to correct the measured value with the value, e.g. 0.002 bar (0.029 psi). This means that you are assigning the value 0 bar (0 psi) to the pressure present.
Description of device parameters Cerabar PMP23 IO-Link Current output Value for 4 mA (STL) Navigation Parameter → Application → Current output → Value for 4 mA (STL) Description Assignment of the pressure value which should correspond to the 4 mA value.
Cerabar PMP23 IO-Link Description of device parameters Description The pressure value present is automatically adopted for the 4 mA current signal. Parameter for which the current range can be assigned to any section of the nominal range. This occurs by assigning the pressure lower range value to the lower measuring current and the pressure upper range value to the upper measuring current.
Page 54
Description of device parameters Cerabar PMP23 IO-Link Description The device displays warnings and faults. This is done via IO-Link using the diagnostic message stored in the device. The purpose of all device diagnostics is solely to provide information to the user; they do not have a safety function. The errors diagnosed by the device are displayed via IO-Link in accordance with NE 107.
Page 55
Cerabar PMP23 IO-Link Description of device parameters Switch output 1 Behavior of switch output Switch point value/Upper value for pressure window, output 1 (SP1/FH1) Switchback point value/Lower value for pressure window, output 1 (RP1/FL1) Without Smart Sensor Profile Navigation Parameter → Application → Switch output 1 → Switch point value.../Switchback point value...
Page 56
Description of device parameters Cerabar PMP23 IO-Link Prerequisite The following functions are available only if a window function has been configured for the switch output (output 1 (Ou1)). Description of behavior of The window function is implemented using the FH1 and FL1 parameters. Since the FH1/FL1 parameter settings depend on one another, the parameters are described all together.
Page 57
Cerabar PMP23 IO-Link Description of device parameters Switching delay Switching delay time, output 1 (dS1) Switchback delay time, output 1 (dR1) Note The switching delay time/switchback delay time function is implemented using the dS1 and dR1 parameters. Since the parameter settings depend on one another, the parameters are described all together.
Page 58
Description of device parameters Cerabar PMP23 IO-Link Factory setting Output 1 (OU1) Without Smart Sensor Profile Navigation Parameter → Application → Switch output 1 → Output 1 (OU1) Description • Hysteresis normally open (HNO): The switch output is specified as a NO contact with hysteresis properties.
Cerabar PMP23 IO-Link Description of device parameters Navigation Parameter → Teach → Single Value → Teach SP2 Description System command (value 66) "Teach switch point 2" Teach Result State Navigation Parameter → Teach → Single Value → Teach Result State...
Cerabar PMP23 IO-Link Description of device parameters Navigation Parameter → Signal Switching Channels 1.2 → SSC1.2 Param. SP1 Description Switch point 1 of switching signal SSC1.2 for pressure Selection No selection. The user is free to edit the values. SSC1.2 Param. SP2 Navigation Parameter →...
Description of device parameters Cerabar PMP23 IO-Link Switching delay time, output 2 (dS2) Navigation Parameter → Signal Switching Channels 1.2 → Switching delay time, output 2 (dS2) Description To prevent switching on and switching off at values around the switch point, you can configure a delay for the specific points within a range of 0 to 50 s with a resolution of 2 decimal places.
Page 63
Cerabar PMP23 IO-Link Description of device parameters Teach Single Value Teach Select Navigation Parameter → Teach → Single Value → Teach Select Description Selection of switching signal to be taught Selection • 0 = Default Channel = SSC1.1 Pressure • 1 = SSC1.1 Pressure •...
Description of device parameters Cerabar PMP23 IO-Link 14.3.2 System HI Max value (maximum indicator) Navigation Parameter → System → Device Management → HI Max value (maximum indicator) Description This parameter is used as the maximum indicator and makes it possible to call up retroactively the highest value ever measured for pressure.
Cerabar PMP23 IO-Link Description of device parameters Description Counter that indicates the number of parameter changes. Back-to-box Navigation Parameter → System → Device Management → Back-to-box Description Total reset (IO-link); this code resets all the parameters apart from: • Revision-counter •...
Accessories Cerabar PMP23 IO-Link Accessories 15.1 Weld-in adapter Various weld-in adapters are available for installation in vessels or pipes. Device Description Option Order number PMP23 Weld-in adapter M24, d=65, 316L 71041381 PMP23 Weld-in adapter M24, d=65, 316L 3.1 EN10204-3.1 71041383...
