User Manual
ACE-B8701 Quick Manual V1.0

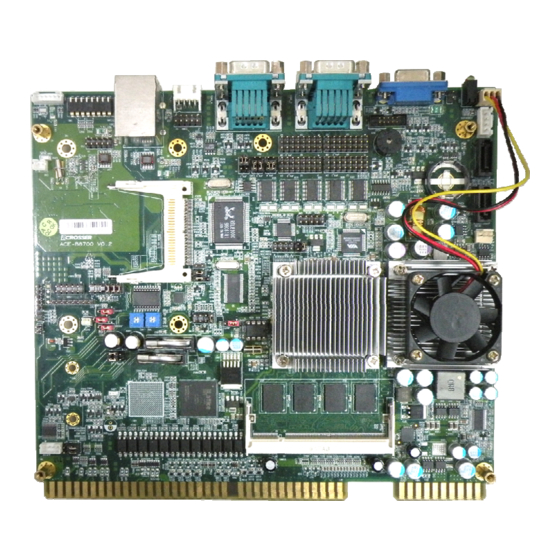

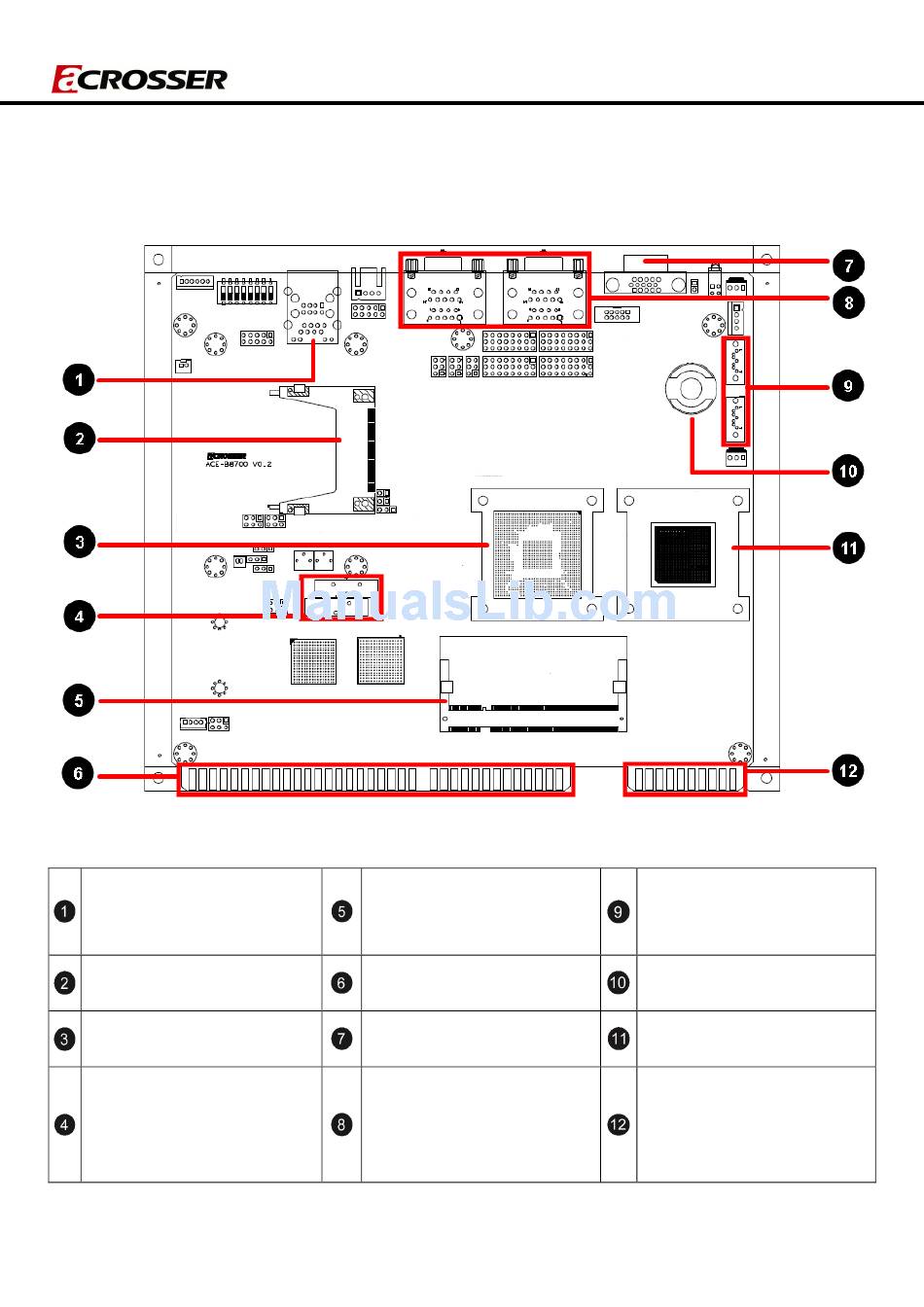

1. Mainboard illustration (Top Side)
USB1
One RJ45 with two layer USB
connector
CF1
Standard CF Card Slot
U6
Chipset VIA VX800
BAT1
CR2032 Size Coin Battery
BAT2
CR2032 Size Coin Battery for
AGA/SRAMA
DIMM1
DDR2 SODIMM socket
72 Pins Golden Fingers
General Gaming interface
VGA1
D-Sub 15-pin VGA connector
COM1_2 & COM3_4
Dual D-Sub 9-pin RS232
connector
1
ACE-B8701 Quick Manual
SATA1 & SATA2
Standard 7-pin SATA connector
U73
iButton holder
U2
Processor VIA C7 1.5G
20 Pins Golden Fingers
Work with 72 Pins Golden Fingers
P/N：220010404-G
Advertisement
Related Manuals for Acrosser Technology ACE-B8701
Summary of Contents for Acrosser Technology ACE-B8701
- Page 1 ACE-B8701 Quick Manual ACE-B8701 Quick Manual V1.0 1. Mainboard illustration (Top Side) USB1 DIMM1 SATA1 & SATA2 One RJ45 with two layer USB DDR2 SODIMM socket Standard 7-pin SATA connector connector 72 Pins Golden Fingers Standard CF Card Slot General Gaming interface...
- Page 2 ACE-B8701 Quick Manual 2. Connector and Jumper Setting (Top Side) P/N：220010404-G...
- Page 3 ACE-B8701 Quick Manual CCTALK1 JST connector for ccTalk (Signal JST connector for Keyboard and 8-bit readable DIP switch. share with COM6). Mouse. COM6(optional) JST connector for Case Open Pin header for 2 USB ports. Pin header for RS232 port. Intrusion logger.
-
Page 4: Connector And Jumper Setting Table
ACE-B8701 Quick Manual 3. Connector and Jumper Setting Table 1. CCTALK1 2. KM1 3. SW1 Signal Signal Mouse data DATA Keyboard data Status Signal 3.3V Mouse clock Keyboard clock 4. CN4 5. CN3 6. COM6 Signal Signal Signal Signal -DCD... - Page 5 ACE-B8701 Quick Manual 10. BAT3 11. VR1/VR2 12. JPB_1/JPB_2 JPB_1 JPB_2 Setting Setting SPEAKER Audio Out RIGHT+ 1-3, with connect to 72 Signal Amplifier Pins Golden Adjust volume level by turning VR close (default) Fingers(B5, B4) clockwise 3.3V (default) SPEAKER...
- Page 6 ACE-B8701 Quick Manual 19. FAN1 20. JPA_1/JPA_2/JPA_3/JPA_5 JPA_1 & JPA_3 JPA_5 JPA_2 Setting Setting Setting Signal 1-2, 4-5, 7-8, 10-11, ccTalk RS485 13-14, 16-17, 19-20, Output output output 22-23 Close 2-3, 5-6, 8-9, 11-12, RS232 output RS232 output RS232 output...
- Page 7 ACE-B8701 Quick Manual 72 Pins Golden Finger I: TTL Input I.I: Isolated Input O.D: Open Drain Output A.O: Audio Output Component Side Solder Side I/O TYPE Port/Bit Function Function Port/Bit I/O TYPE SPEAKER Audio GND RIGHT+ SPEAKER Audio GND LEFT +...
- Page 8 ACE-B8701 Quick Manual Component Side Solder Side I/O TYPE Port/Bit Function Function Port/Bit I/O TYPE O.D. Coin-In Meter Lamp14 O.D. O.D. Pay-Out Meter Lamp15 O.D. O.D. Key-Out Meter Lamp16 O.D. O.D. Lamp1 Lamp7 O.D. O.D. Lamp2 Lamp8 O.D. O.D. Lamp3 Lamp9 O.D.
