Summary of Contents for Acrosser Technology ACM-XD15B7

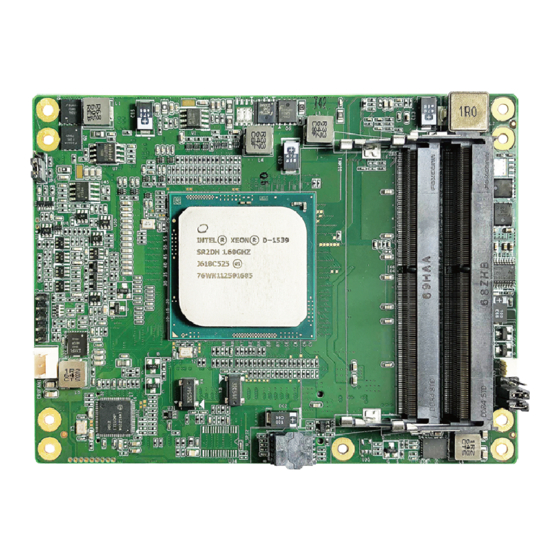

- Page 1 ACM-XD15B7 ACM-XD15B7 COM Express 3.0 Basic Size Type 7 ® ® with Intel Xeon D SoC User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
- Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 3: Table Of Contents
ACM-XD15B7 Table of Contents 1. Introduction ..............5 1.1. Specifications ......................6 1.2. Packing List ........................ 7 1.3. Block Diagram ......................8 2. Hardware Information ...........9 2.1. Mainboard Layout ....................... 9 2.2. Connector Pin Definition ................... 10 2.2.1. CN1, CN2 Pin Assignments ................10 2.3. - Page 4 ACM-XD15B7 This page intentionally left blank. Acrosser Technology Co., Ltd.
-
Page 5: Introduction
Pulled Up the 3.3V, 5V & 12V’s Capacitance value for Enhancing Endurance The ACM-XD15B7 utilizes the Type 7 COM Express Basic Module that fully complies with the PICMG (PCI Industrial Computer Manufacturers Group), COM.0 R3.0 specification and offers extra ordinarily high bandwidth for high-speed data transmission through two high-performance 220-pin connectors. -
Page 6: Specifications
Linux Kernel 4.9 Heat sink • Aluminum material heat-sink with fan(Default) • CPU Heat spreader(Optional item) Watchdog Timer • Software programmable 0~255 seconds, 0 = disable timer. Power Mode • AT Mode (Auto power on after power input) Acrosser Technology Co., Ltd. -
Page 7: Packing List
ACM-XD15B7 CMOS Battery • Without CMOS Battery. Dimension • 125 x 95mm (4.92” x 3.74”) COM Express Basic Size Safety • CE, FCC class A, ASTM D4169 Level 3, REACH 1.2. Packing List Check if the following items are included in the package. -
Page 8: Block Diagram
ACM-XD15B7 1.3. Block Diagram Acrosser Technology Co., Ltd. -
Page 9: Hardware Information
ACM-XD15B7 Hardware Information 2.1. Mainboard Layout Top View CPLD DIMM1 DIMM2 CPUFAN1 Bottom View SPI_ROM www.acrosser.com... -
Page 10: Connector Pin Definition
GND (FIXED) GND (FIXED) GBE0_MDI3+ LPC_FRAME# USB_SSRX0- USB_SSTX0- GBE0_LINK100# LPC_AD0 USB_SSRX0+ USB_SSTX0+ GBE0_LINK1000# LPC_AD1 GND (FIXED) GND (FIXED) GBE0_MDI2- LPC_AD2 USB_SSRX1- USB_SSTX1- GBE0_MDI2+ LPC_AD3 USB_SSRX1+ USB_SSTX1+ No Connect LPC_DRQ0# GND (FIXED) GND (FIXED) GBE0_MDI1- LPC_DRQ1# USB_SSRX2- USB_SSTX2- Acrosser Technology Co., Ltd. - Page 11 ACM-XD15B7 Pin # CN2 – Row A CN2 – Row B CN1 – Row C CN1 – Row D GBE0_MDI1+ LPC_CLK USB_SSRX2+ USB_SSTX2+ GND (FIXED) GND (FIXED) GND (FIXED) GND (FIXED) GBE0_MDI0- PWRBTN# USB_SSRX3- USB_SSTX3- GBE0_MDI0+ SMB_CK USB_SSRX3+ USB_SSTX3+ GBE0_CTREF...
- Page 12 WAKE1# RSVD PCIE_TX0+ PCIE_RX0+ PCIE_TX21+ PCIE_RX21+ PCIE_TX0- PCIE_RX0- PCIE_TX21- PCIE_RX21- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) PCIE_TX8+ PCIE_RX8+ PCIE_TX22+ PCIE_RX22+ PCIE_TX8- PCIE_RX8- PCIE_TX22- PCIE_RX22- GND(FIXED) GND(FIXED) PCIE_TX9+ PCIE_RX9+ PCIE_TX23+ PCIE_RX23+ PCIE_TX9- PCIE_RX9- PCIE_TX23- PCIE_RX23- PCIE_TX10+ PCIE_RX10+ RSVD RSVD Acrosser Technology Co., Ltd.
- Page 13 ACM-XD15B7 Pin # CN2 – Row A CN2 – Row B CN1 – Row C CN1 – Row D PCIE_TX10- PCIE_RX10- PCIE_TX24+ PCIE_RX24+ PCIE_TX24- PCIE_RX24- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) PCIE_TX11+ PCIE_RX11+ PCIE_TX25+ PCIE_RX25+ PCIE_TX11- PCIE_RX11- PCIE_TX25- PCIE_RX25- RSVD RSVD NCSI_TX_EN...
-
Page 14: Board Dimension
ACM-XD15B7 2.3. Board Dimension (Unit: mm) Acrosser Technology Co., Ltd. -
Page 15: Bios Settings
ACM-XD15B7 BIOS Settings This chapter describes the BIOS menu displays and explains how to perform common tasks needed to get the system up and running. It also gives detailed explanation of the elements found in each of the BIOS menus. The following topics are covered: •... -
Page 16: Advanced Setup
Legacy Pxe Enable or Disable [Enable] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc. Acrosser Technology Co., Ltd. -
Page 17: Serial Port Console Redirection
ACM-XD15B7 3.2.1. Serial Port Console Redirection Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced COM 0 The setting specify how the Console Redirection [Enabled] host computer and the Console Redirection Settings remote computer will exchange data. Both... -
Page 18: Chipset Setup
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc. • SATA Controller(s) Enable or disable SATA Device. Acrosser Technology Co., Ltd. -
Page 19: Boot Setup
ACM-XD15B7 3.4. Boot Setup Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Logo [Enabled] Enables or disables Quiet Boot option Driver Option Priorities Boot Option Priorities Network Device BBS Priorities →←: Select Screen... -
Page 20: Save & Exit Setup
Save Changes and Reset Exit system setup after saving the changes. • Discard Changes and Reset Exit system setup without saving any changes. • Restore Defaults Restore/Load the default values for all the set up options. Acrosser Technology Co., Ltd. -
Page 21: Software Installation And Programming Guide
ACM-XD15B7 Software Installation and Programming Guide 4.1. Introduction 4.1.1. Environment This test utility develop is based on kernel 4.9 or above (Ubuntu 18.04.1 Server 64bit). 4.1.2. GPIO and Watchdog This model provides both a GPIO interface and a Watchdog timer. Users can use the GPIO and Watchdog APIs to configure and to access the GPIO interface and the Watchdog timer. -
Page 22: Gpio
This function read the value of the watchdog time counter and retruns it to the caller. Parameters: None Return Value: This function returns the value of the time counter and return it to the caller as an integer. Acrosser Technology Co., Ltd. - Page 23 ACM-XD15B7 Syntax: void wdt_stop(void) Description: This function reads the watchdog timer stop. Parameters: None Return Value: None www.acrosser.com...
-
Page 24: Faq
Q 1. Where can I find the serial number of this product? • The serial number (S/N) is a label printed with alpha-numeric character. You can find the S/N label on the bottom of this product or on its packing box. Acrosser Technology Co., Ltd. - Page 25 ACM-XD15B7 Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
- Page 26 Acrosser Headquarters Acrosser Nanjing Office 欣扬通电子有限公司 南京办事处 241新北市三重區光復路一段61巷26號10樓 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., (R.O.C.) Jiang Ning Dist., Nanjing City, Jiangsu Province, TEL: +886-2-29999000 China (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
