DRV2604L ERM, LRA Haptic Driver Evaluation Kit
The DRV2604L is a haptic driver designed for Linear Resonant Actuators (LRA) and Eccentric Rotating
Mass (ERM) motors. It provides many features which help eliminate the design complexities of haptic
motor control including reduced solution size, high efficiency output drive, closed-loop motor control, quick
device startup, memory for waveform storage, and auto-resonance frequency tracking.
The DRV2604LEVM-CT Evaluation Module (EVM) is a complete demo and evaluation platform for the
DRV2604L. The kit includes a microcontroller, linear actuator, eccentric rotating mass motor, and
capacitive touch buttons which can be used to completely demonstrate and evaluate the DRV2604L.
This document contains instructions to setup and operate the DRV2604LEVM-CT in demo and evaluation
mode.
Evaluation Kit Contents:
DRV2604LEVM-CT demo and evaluation board
Mini-USB cable
Demonstration Firmware
Required for programming and advanced configuration:
Code Composer Studio™ (CCS) or IAR Embedded Workbench IDE for MSP430
MSP430 LaunchPad (MSP-EXP430G2), or MSP430-FET430UIF hardware programming tool
DRV2604LEVM-CT firmware available on
SLOU390A – May 2014 – Revised June 2014
Submit Documentation Feedback

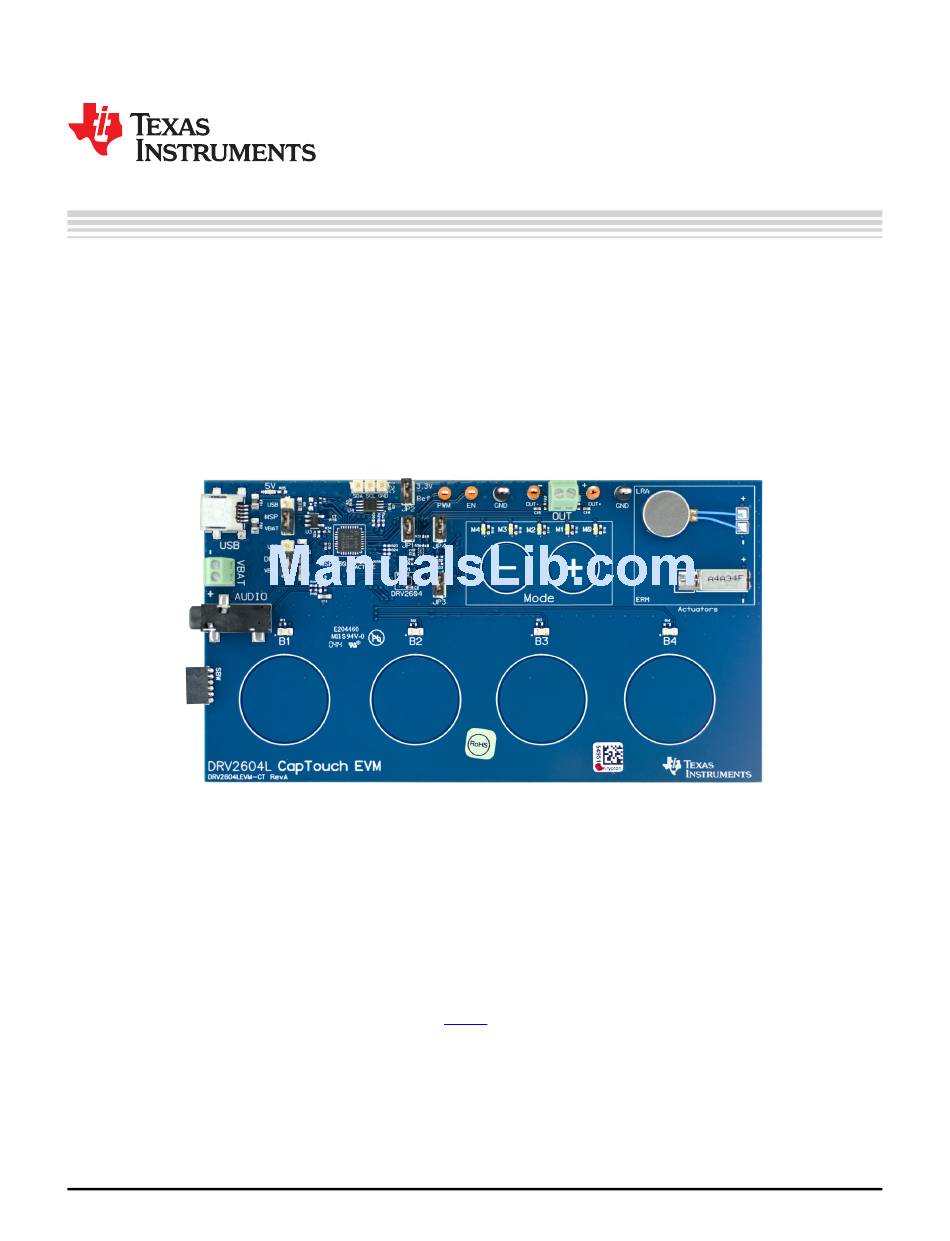

Figure 1. DRV2604LEVM-CT Board
ti.com
Copyright © 2014, Texas Instruments Incorporated
SLOU390A – May 2014 – Revised June 2014
DRV2604L ERM, LRA Haptic Driver Evaluation Kit
User's Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRV2604L ERM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments DRV2604L ERM

  • Page 1: Drv2604Levm-Ct Board

    User's Guide SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit The DRV2604L is a haptic driver designed for Linear Resonant Actuators (LRA) and Eccentric Rotating Mass (ERM) motors. It provides many features which help eliminate the design complexities of haptic motor control including reduced solution size, high efficiency output drive, closed-loop motor control, quick device startup, memory for waveform storage, and auto-resonance frequency tracking.
  • Page 2: Table Of Contents

    ......................External PWM Input ....................External Trigger Control ......................External I C Input ......................... Analog Input DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 3 Waveform Effects ....................Binary Counting Modes ......................Hardware Overview ......................MSP430 Pin-Out ......................Bill of Materials SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 4: Getting Started

    Connector Effect Buttons Press to play haptic effects. Figure 2. Board Diagram Code Composer Studio is a trademark of Texas Instruments. DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 5: Evaluation Module Operating Parameters

    * Displayed in Binary Mode 31 (Library Select) Mode 30 Mode 31 Figure 3. DRV2604LEVM-CT Mode Sets SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 6: Modes And Effects Table

    Selects ERM or LRA Mode 0 Auto-Calibration Internal Routine Internal Trigger (I LED M0 On Auto-Calibration Click ERM/LRA Buzz DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 7: Description Of The Demo Modes

    Figure 6. ERM Closed-Loop Click Waveform (Button 1) Figure 7. ERM Open-Loop Click Waveform (Button 4) SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 8: Lra Single-Cycle Click (Button 2)

    Figure 9. LRA Single-Cycle with Braking (Button 3) Figure 10. LRA Closed-Loop Click Waveform (Button 1) Figure 11. LRA Open-Loop Click Waveform (Button 4) DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback...
  • Page 9: Lra Auto-Resonance On Waveform (Button 1)

    With the Smart Loop auto-resonance feature, the DRV2604L dynamically tracks the exact resonant frequency to maximize the vibration force. Figure 14. Acceleration Versus Frequency SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 10: Lra Scroll Wheel Effect Waveform (Button 4)

    2. For an ERM actuator, run the ERM auto-calibration by pressing button B1 3. For an LRA actuator, run the LRA auto-calibration by pressing button B2 DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright ©...
  • Page 11: Ram Library Mode

    LRA OL 1 ms Interval Click ERM/LRA Click for 5 ms playback interval ERM/LRA Click for 1 ms playback interval SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 12: Additional Hardware Modes

    2. Release the button when the actuator buzzes and mode LEDs flash. 3. Select from the demo modes using the + and – buttons. DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback...
  • Page 13: Binary Counting Modes

    LEDs: 01100 open loop drive enabled (when back-EMF not detected). Demonstrates DRV2604L improved algorithm to sync SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 14: Hardware Configuration

    Input the amplitude envelope of the output waveform. Hardware configuration details can be found in the following sections. DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 15: Power Supply Selection

    It is important to use the green terminal block when connecting an external actuator. The OUT+ and OUT– test points have low-pass filters and should only be used for oscilloscope and bench measurements. SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 16: Pwm Input

    3. Choose either the on-board ERM or LRA using buttons B1 or B2. 4. Apply the PWM signal to the PWM test point at the top of the board. DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright ©...
  • Page 17: External Trigger Control

    3. Select Mode 0 (00000’b) using the increment mode button (+). • B1 – Select the on-board ERM SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 18: External I C Input

    Active LED. 4. Begin controlling the DRV2604L using the external I C source. DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 19: Analog Input

    OUT+ and OUT–. OUT- OUT+ 470pF 470pF 100k 100k From DRV2604L Figure 24. Terminal Block and Test Points SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 20: Drv2604L Unfiltered Waveform

    OUT- Oscilloscope 470 pF Figure 27. Measuring the DRV2604L Output Signal with an Analog Low-Pass Filter DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 21: Modifying Or Reprogramming The Firmware

    MSP430 LaunchPad (MSP-EXP430G2) and the DRV2604LEVM-CT. MSP430 AUDIO DRV2604L Actuators EMULATION MSP-EXP430G2 Figure 28. LaunchPad Programmer Connection SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 22: Msp430 Pin-Out

    LRA/ERM Load Switch AVSS Analog Ground DVSS Digital Ground AVCC Analog Supply DVCC Digital Supply P1.0 Red LED DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 23: Schematic

    0402 0402 X7R 0603 X7R 0.1ufd/6.3V 0402 0402 SJ-3523-SMT 3.5mm Audio-to-Haptics QFN32-RHB Figure 29. DRV2604LEVM-CT Schematic SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 24: Layout

    Layout www.ti.com Layout Figure 30. X-Ray Top View spacer Figure 31. Top Copper DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 25: Layer 2 Copper

    Layout www.ti.com Figure 32. Layer 2 Copper spacer Figure 33. Layer 3 Copper SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 26: Bottom Copper

    Layout www.ti.com Figure 34. Bottom Copper DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 27: Bill Of Materials

    ZERO OHM JUMPER SMT 0402 0 OHM 1/16W,5% ROHS VISHAY ERJ-2GEJ104 R50,R51 P100KJCT RESISTOR SMD0402 THICK FILM 100K OHMS 1/16W 5% ROHS PANASONIC SLOU390A – May 2014 – Revised June 2014 DRV2604L ERM, LRA Haptic Driver Evaluation Kit Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 28 R20,R21,R22,R23,R2 R0402_DNP 4,R25,R30,R31,R35 R0603_DNP RMCF0603ZT0R00CT-ND R0603_DNP STACKPOLE ELECTRONICS R0402_DNP P4.99KLCT-ND R0402_DNP PANASONIC R0402_DNP 541-0.0JCT R0402_DNP VISHAY DRV2604L ERM, LRA Haptic Driver Evaluation Kit SLOU390A – May 2014 – Revised June 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 29: Revision History

    • Changed C1 and C2 designator value to 1.0 μF in schematic....................• Changed contents of item 12 in BOM. SLOU390A – May 2014 – Revised June 2014 Revision History Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 30 ADDITIONAL TERMS AND CONDITIONS, WARNINGS, RESTRICTIONS, AND DISCLAIMERS FOR EVALUATION MODULES Texas Instruments Incorporated (TI) markets, sells, and loans all evaluation boards, kits, and/or modules (EVMs) pursuant to, and user expressly acknowledges, represents, and agrees, and takes sole responsibility and risk with respect to, the following: 1.
  • Page 31 RADIO FREQUENCY REGULATORY COMPLIANCE INFORMATION FOR EVALUATION MODULES Texas Instruments Incorporated (TI) evaluation boards, kits, and/or modules (EVMs) and/or accompanying hardware that is marketed, sold, or loaned to users may or may not be subject to radio frequency regulations in specific countries.
  • Page 32 Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2014, Texas Instruments Incorporated spacer Important Notice for Users of EVMs Considered “Radio Frequency Products”...
  • Page 33: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
  • Page 34 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments DRV2604LEVM-CT...
