Arris TM502 Installation Manual And Owner's Manual

battery
ARRIs
TM502G

INsTALLATION ANd REPLACEMENT

Enclosed is the battery that you requested for your voice modem.
The battery is easy to install as outlined in the instructions below.

LITHIUM-ION BATTERY REPLACEMENT ACTION

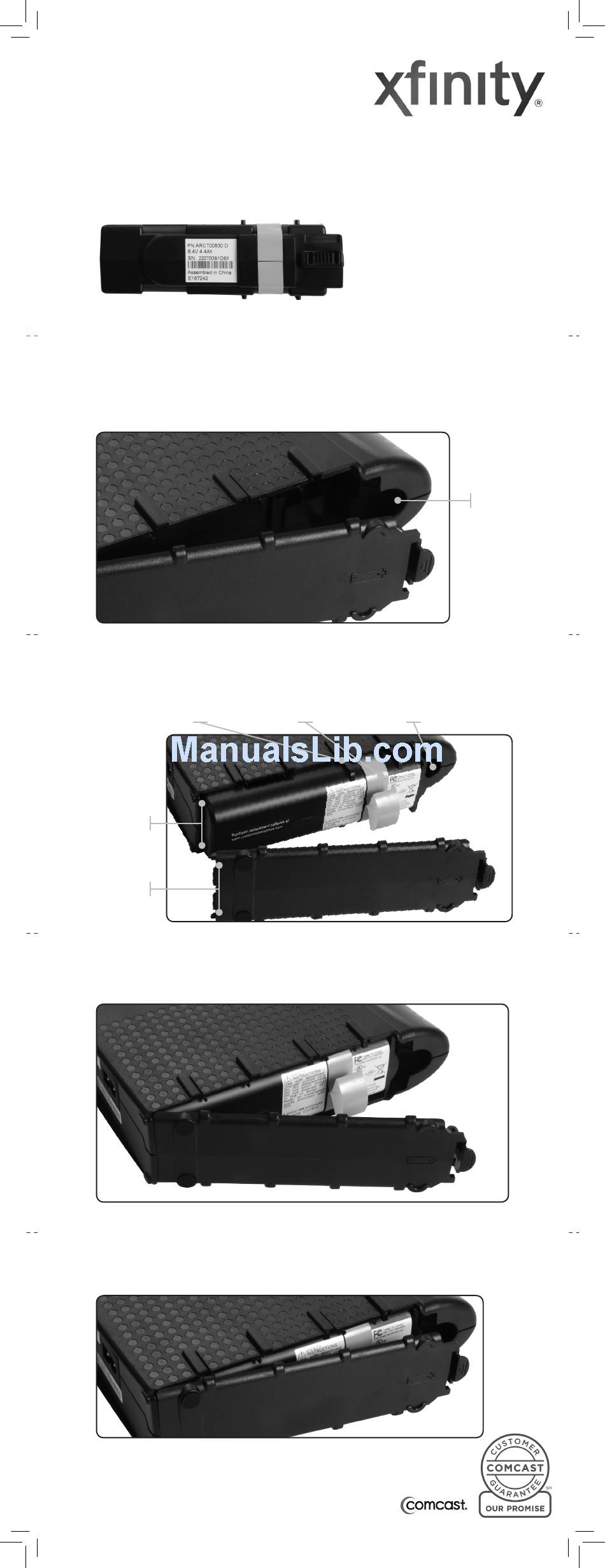

1. Insert a finger into the latch opening, press down and pull back on the latch holding the
battery door (on the bottom of the Telephony Modem). Pull the door toward you. Set the
door aside in a safe place.
2. Hold the battery pack so that the guides on the battery align with the slots on the Telephony
Modem and slide the battery into the bay. The diagram below shows the proper orientation.
Batteries will not insert completely into the Telephony Modem if not oriented correctly.
receiver slots
hinge tabs
3. Push the battery pack into the bay until it latches into place. The following diagram shows a
Telephony Modem with a 4.4 Ah lithium-ion battery pack installed. If you are taking the
battery out of the unit, make sure to use the battery pull strap to dislodge the battery.
Note: The Telephony Modem will not begin operating until you apply AC power.
4. Replace the door. To do so, place the tabs of the battery door into the slot on the
Telephony Modem battery compartment. Rotate the door toward the unit until the
latch snaps back into place.
Note: Since lithium-ion batteries contain precious material, there may be some benefit in
recycling. Please dispose of the battery responsibly and in accordance with local ordinances.
battery guide battery pull strap
The 4.4 Ah lithium-ion battery
pack can be inserted into the
Telephony Modem. Use this
procedure to install and to
replace the backup batteries.
battery slot
latch end
